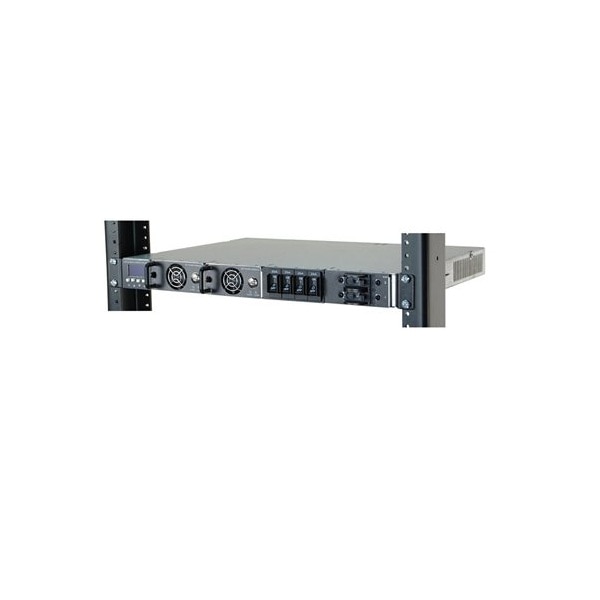

ICT 1RU -48vdc 1400W Max Pwr Shelf w/ICM, 100A Battery Breaker

(0)No Reviews yet

Out of Stock

 Open chat or call us for stock status

Product Information


1RU -48vdc 1400W Max Pwr Shelf w/ICM, 100A Battery Breaker

Intelligent 1U Power Shelf with Single-Breaker Battery Management Module and Load Distribution Module (-48V)

The ICT Modular Power Series system provides flexible, managed DC power for a broad range of communications and broadband applications. The foundation is the power shelf and 700 watt high efficiency power modules. A number of optional factory-installed modules can be selected to provide TCP/IP monitoring and control, advanced battery management features, battery breakers, low voltage disconnects, and four-position breaker-protected power distribution including load current monitoring and remote power cycling over Ethernet.

The ICT Modular Power Series provides N+1 redundancy with 700 watt hot swappable 48 or 24 volt power modules. The power shelf can accomodate one to four power modules and one or two accessory modules. A dedicated slot holds the optional Intelligent Control Module for full TCP/IP remote monitoring and control. When combined with the optional Battery Management Module, the Intelligent Control Module also provides advanced battery functions including battery state of charge, estimated run time remaining, and battery discharge testing.



  • Power Shelf with fully integrated Control Module provides remote monitoring and control of DC power system over Ethernet
  • High resolution OLED display with front panel controls fully integrated into Power Shelf
  • TCP / IP remote Ethernet communications
  • Hot swappable 700 watt, high efficiency +/- 48 or 24 VDC power modules
  • Accommodates optional Battery Management Module and Load Distribution Module in 1RU space
  • Advanced battery management features
  • Integrated 150 amp low voltage disconnect
  • Single or dual 100 amp battery disconnect circuit breakers
  • Four fully managed load outputs can be power cycled individually
  • Adjustable alarm and load-shed settings for each output
  • 2 year warranty


Specifications ICT-IPS-BMM-LDM

Weight (Power Shelf empty)8.1lbs / 3.7 kg
Weight (Power Shelf + 4 modules)18.5 lbs / 8.4 kg
Dimensions1.74"H x 19.0"W x 15.7"L
AC input connectorTerminal Block, #8 - #16 AWG
DC output connectorBusbars with 1/4-20 x 7/8” bolts
Remote alarm connectorsTerminal Block (#16 -24 AWG)
Mounting1RU, 19 in rack mount
Operating temperature range-30 to +60 C
Output derating2% / C (above 50 C)
Storage temperature-45 to +85 C
SafetyEN 60950-1
EmissionsEMC compliance with FCC Part 15, Class B, EN61000-6-1, EN61000-6-3, EN61000-3-2, RoHS, CE
DC OUTPUT+/- 48 VDC+/- 24 VDC
Power output per module700W700W
Output current per Power Module12.5A25A
Max. system output current with 4 Power Modules50A100A
Efficiency (typical)93%91%
Output ripple (rms)60mV30mV
Output voltage range (adjustable)46.0 - 62.0 VDC23.0 - 31.0 VDC
