  • IlSintech Mini-sized Single Action Precision Cleaver w/ Rotation Blade

IlSintech Mini-sized Single Action Precision Cleaver w/ Rotation Blade

  • SKU: CS-01BT
  • Manufacturer: ILSINTECH
  • Spec Sheet: Download
  • Availability: Direct Ship Item Ships direct from manufacturer usually same day Email me when this product is in stock!
US$‎1,053.00

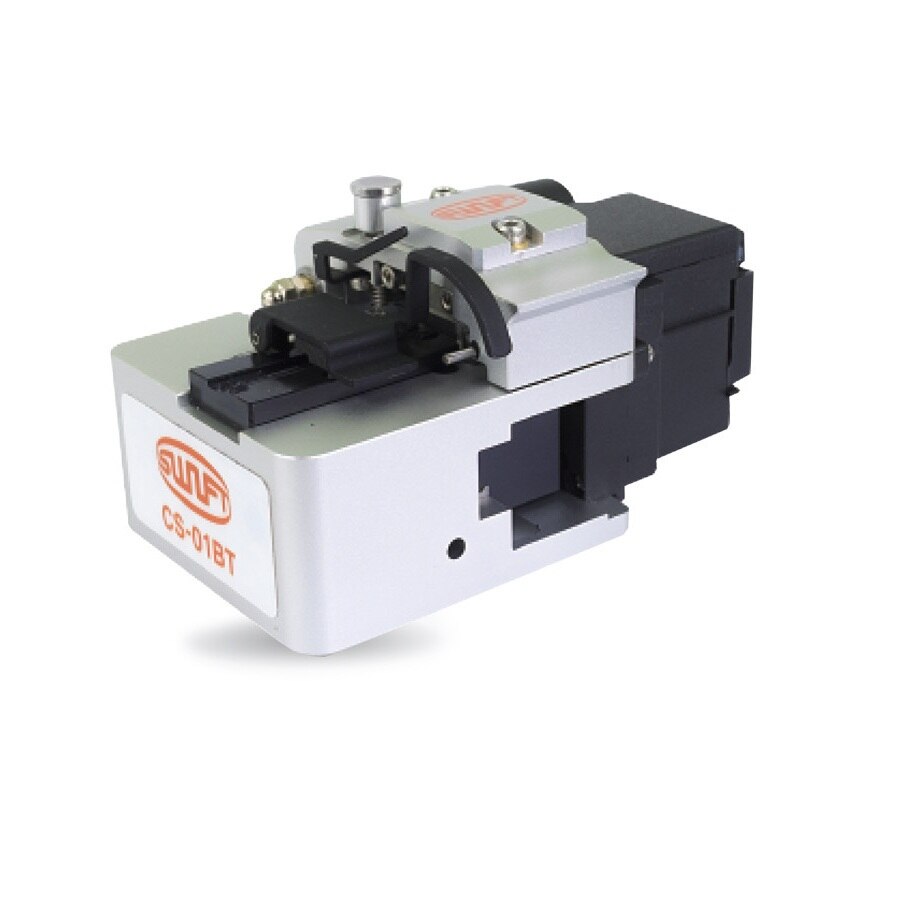

IlSintech CS-01BT

Mini-sized Single Action Precision Cleaver w/ Rotation Blade

Ilsintech Cleaver Rotating Blade has a single action (full automatic) for changing channel, cleaving, & collecting fiber chips. The blade life time 75,000 fibers (no setup is required when replacing blade). Applicable Splicer - K11, K9, KF4


Features:

  • Auto-Rotating Blade
  • Long life cycle with its stability by adopting double slide bearing system.
  • Oil Damper System
  • Single Action (Full Automatic) for cleaving & collecting fiber chips
  • 75,000 Cleaves Per Blade

Specifications CS-01BT

Bare Fiber Diameter125µm
Coating Diameter250 ~ 900µm, IN-DOOR
Cleave Angle0.5˚
Blade Life Time75,000
Applicable SplicerK11, K9, KF4
Cleave Lengths – Universal HolderSingle 7mm ~ 16mm(SOC)
Cleave Lengths – Exchange HolderSingle 7.5mm
Dimensions90x58x50mm
3.54" x 2.28" x 1.96"
Weight276g  (0.60 lbs)
Chip-BoxO
