Inscape Data Outdoor Managed 10/100Mbps 802.3af/at 10-Port PoE Switch with 2 Combo Gigabit SFP Fiber/RJ45 Uplink Ports, Up to 30W per PoE Port, 150W
- SKU: LPS1800AFM-T1
- Manufacturer: Inscape Data
- Data Sheet: Download
Product Information
Inscape Data LPS1800AFM-T1
Outdoor Managed 10/100Mbps 802.3af/at 10-Port PoE Switch with 2 Combo Gigabit SFP Fiber/RJ45 Uplink Ports, Up to 30W and an Average of 15.4W per PoE Port, Not to Exceed 150W for a Total 8 PoE Ports, Up to 30W per PoE Port, Not to Exceed 150W for a Total 8 PoE Ports

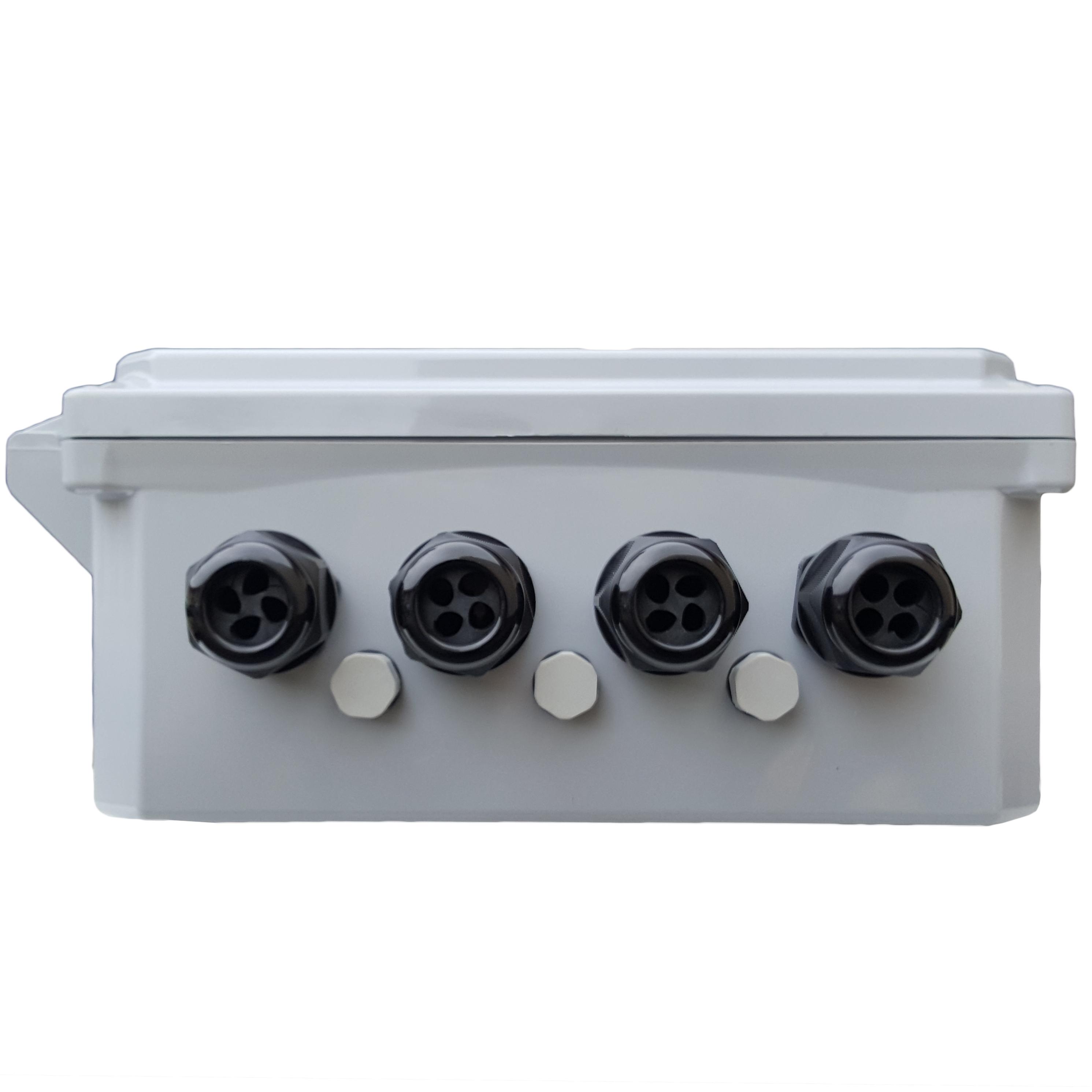

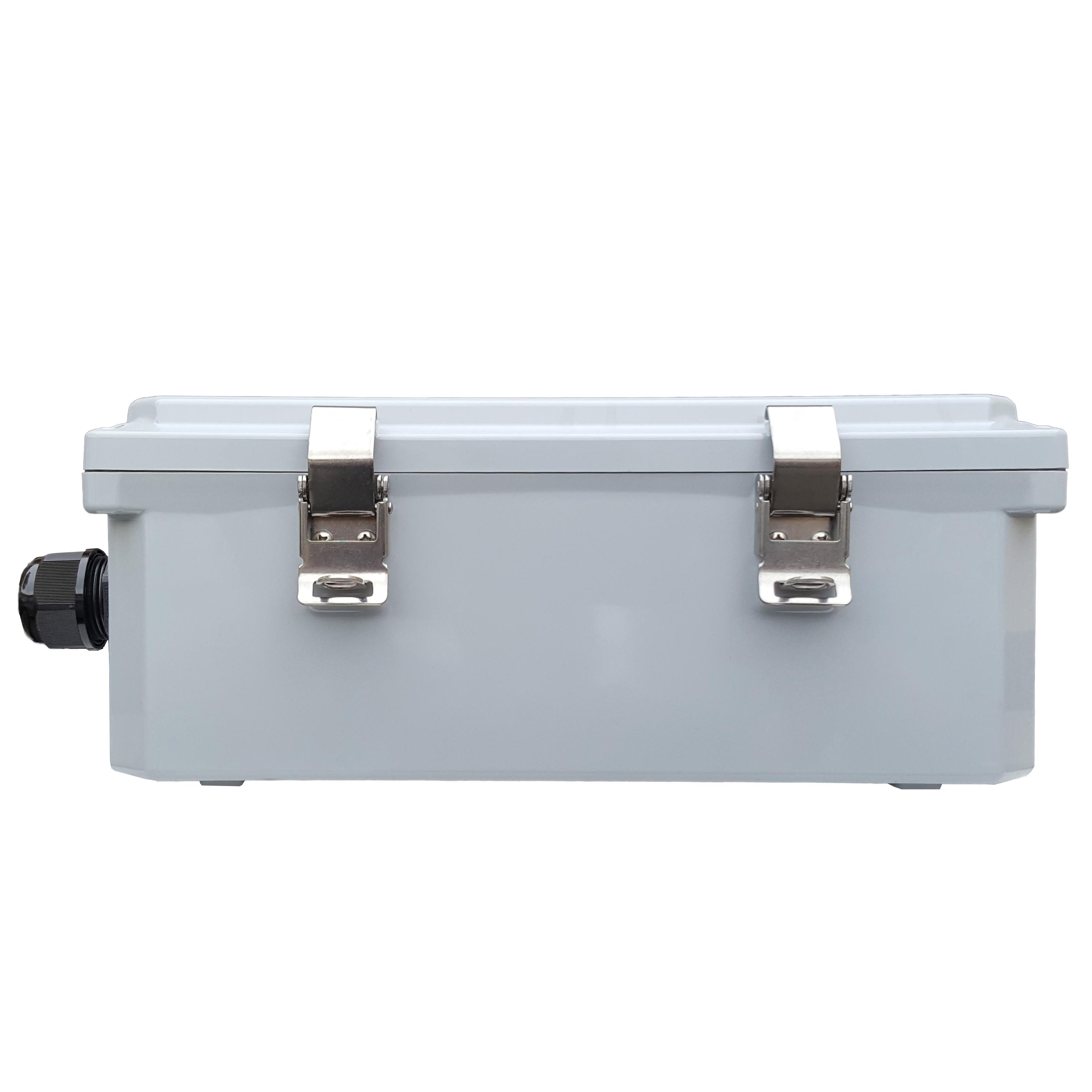

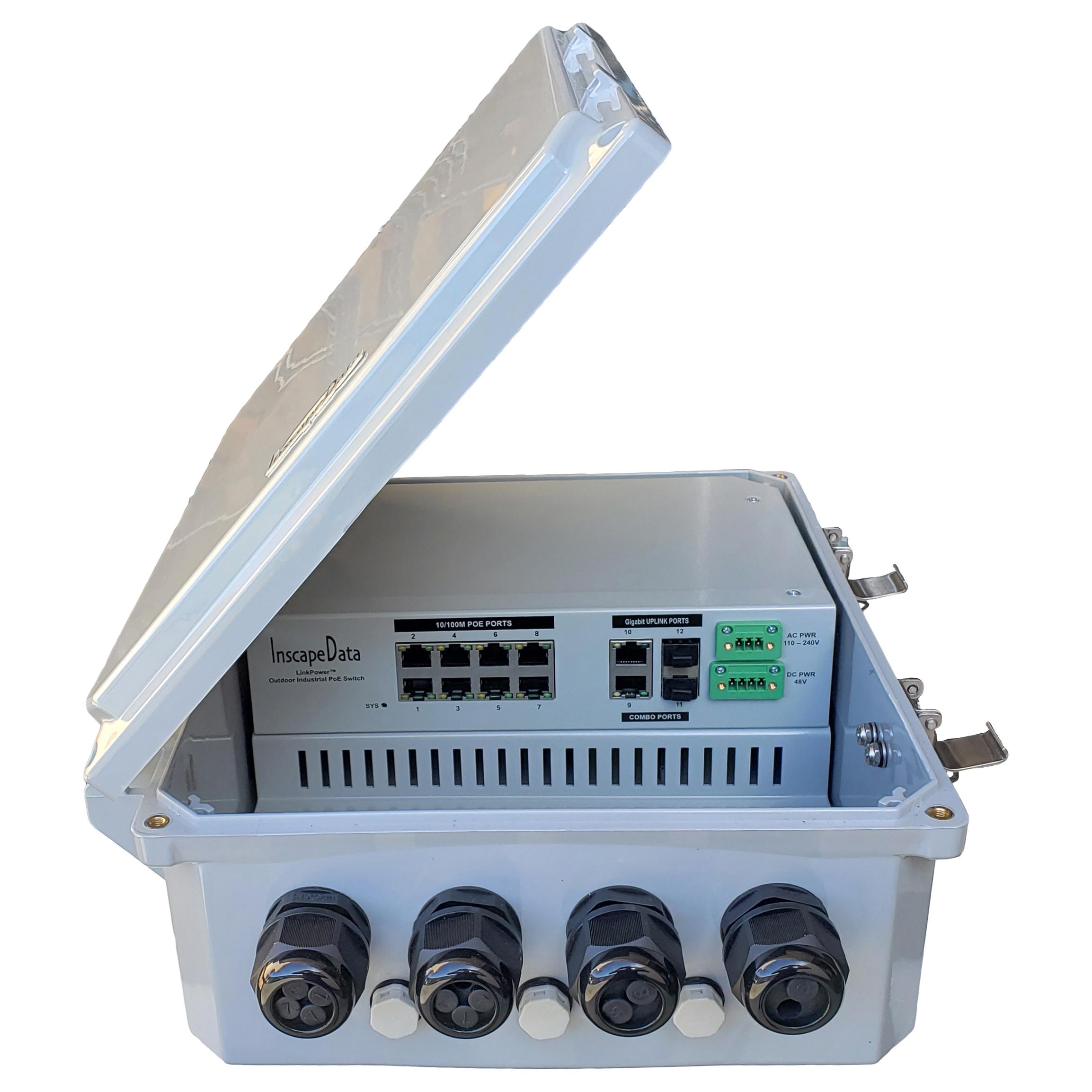

The LinkPower™ LPS1800AFM-T1 Outdoor Fast Ethernet PoE Switch Series offers 10-Port 10/100Mbps managed IEEE802.3af/at PoE (Power over Ethernet) Network Switch with 8 10/100Mbps PoE Ports and 2-Combo Gigabit SFP/RJ45 Uplink Port and is the industry first outdoor weatherproof industrial 10/100Mbps Ethernet switch that delivers data and power up to 30W per PoE port (limited to 150W for a total of 8 PoE ports) over one single network cable protected with an IP68 compliant weatherproof enclosure. The outdoor weatherproof rating of the systems is strictly based on how the top cover is closed. For the hinged cover without the four top cover screws, the outdoor weatherproof rating is IP66 and, otherwise, the outdoor rating is IP68 with the four top cover screws securely closed with the enclosure.
LPS1800AFM-T1 Outdoor 10/100Mbps Managed PoE Switch is designed for industrial and commercial applications, e.g., video surveillance, remote security, wireless mesh, carrier wifi installations, and etc. The terminal equipment, i.e., powered devices, such as weather-proof IP camera, high performance wireless AP and industrial IP telephony. With the two Gigabit fiber ports, it can transfer data up to a distance of 120Km from SFP fiber port to a remote control center and the systems is also offer with powerful anti-electromagnetic interference feature. Additionally, the LPS1800AFM-T1 Fast Ethernet PoE Switch Series is designed for harsh outdoor environments with features such as a wide working temperature range from -30ºC to +70ºC and 3KV Ethernet port surge protection that can ensure the reliability of the uninterrupted PoE network operations.
Features:
- IP66/68 Compliant All Weather Enclosure
- MTBF: 300,000 hours
- Integrated Industrial 6KV Ethernet surge protection
- IEEE 802.3af and 802.3at Type 2 Power over Ethernet (PoE) standard
- 10/100Mbps Auto-Negotiation and Auto-MDIX Gigabit Power over Ethernet RJ45 ports
- Supports 802.3af PoE Power maximum 15.4 watts and 802.3at PoE+ maximum 30Watts and 48V DC for each PoE port
- Internal LEDs for individual port status: Network Activity, PoE Power, & System Power
- Full wire-speed non-blocking reception and transmission
- 1MBit frame buffer memory and 8K entries MAC address table
- IEEE802.3x flow control for full-duplex mode; back pressure flow control for half-duplex mode
- Supports Link Aggregation IEEE 802.3ad and fail over
- Each SFP fiber port supports single mode (9/125um) fiber transmission, the transmission distance can be up to 25km( Default dual fiber, can be customized single fiber)
- Supports Jumbo Frame in all speeds (up to 10K bytes packet frame size)
- Operating Temperature:-30 Degree C ~ +70 Degree C
- Three-Year Limited Warranty
Specifications
Specifications LPS1800AFM-T1
| Dimension | 12 x 10 x 5 inches |
| Weight | 10 lbs. |
| Connector | Ports RJ45 Port: 8x10/100BaseT(X) self-detect, 2 Uplink10/100/1000BaseT(X) & SFP combo port Fiber Port: 2x100/1000Base SFP ports |
| Switching Performance | Bandwidth: 8.8G (Non-blocking), Priority Q«eue: 4 Packet Buffer Memory: 1Mbit MAC Address Table Size: 4K Switch Processing Scheme: Store-and-Forward |
| Network Medium | 10BASE-T: Cat3/ 4/ 5 UTP {<100m) 100BASE-TX: Cat5 or more UTP (s100m) Single mode (6/125um) fiber transmission, the transmission distance can be up to 25km ( Default dual fiber, can be customized single fiber) |
| Performance Specifications | MTBF: 300,000 hours Database: Telcordia (8ellcore), GB |
| Protocols and Standards | IEEE 802.3: CSMA/CD IEEE 802.3i: 10Base-T IEEE 802.3u: 100Base-T IEEE 802.3ab: 1000Base-T IEEE 802.3x. Flow Control IEEE 802.1af: DTE Power via MDI IEEE 802.3af: Power-over-Ethernet standard IEEE 802.3at: Power-over-Ethernet standard IEEE 802.1Q: VLAN and GVRP protocols |
| LEDs Status | PWR, FAULT, 10/100, MSTR/HEAD, CPLR/TAIL, PoE |
| PoE & Power Supply | Input voltage: 120V • 240V AC Output voltage: 48V OC LPS1800AF-T1 & LPS1800AFM-T1 deliver up to 30W and an average of U.4W per PoE port and is limited to 150W for a total of 8 PoE ports LPS1600AT-T1 & LPS1800ATM-T1 deliver 30W maximum per PoE port and is limited to 240W for a total of 8 PoE ports Support OCP ( Over-Current Protection ) and electronic protection Connection: 3-pin pluggable connecting terminal Power Pin Assignment: 1/2+; 3/6- |
| Working Environment | Operating Temperature: -30°C • 70°C |
| Industrial Standard | EMI: FCC Part t5 Subpart B Class A, EN 55022 Class A EMS: EN 61D00-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, Ehl 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, Ehl 61000-4-8 Mechanical Project: IEC60068-2-6, IEC60068-2-27, IEC60068-2-32 Industrial: IEC 61000-6-2 |
| Safety | CE Mark, Commercial GE/LVD EN60950, RoHS, UL60591-I , UL 94 V-2, UL F1 |
| Warranty | 3 years |
