Inscape Data 10-Port Gigabit Managed 802.3at/af PoE Switch with 8 Ports, 2 SFP Fiber Gigabit Ports, 30W per PoE Port, 250W Total
- SKU: LPS3802ATM-T1
- Manufacturer: Inscape Data
- Data Sheet: Download
Product Information
Inscape Data LPS3802ATM-T1
10-Port Gigabit Managed 802.3at/af PoE Switch with 8 Ports, 2 SFP Fiber Gigabit Ports, 30W per PoE Port, 250W Total

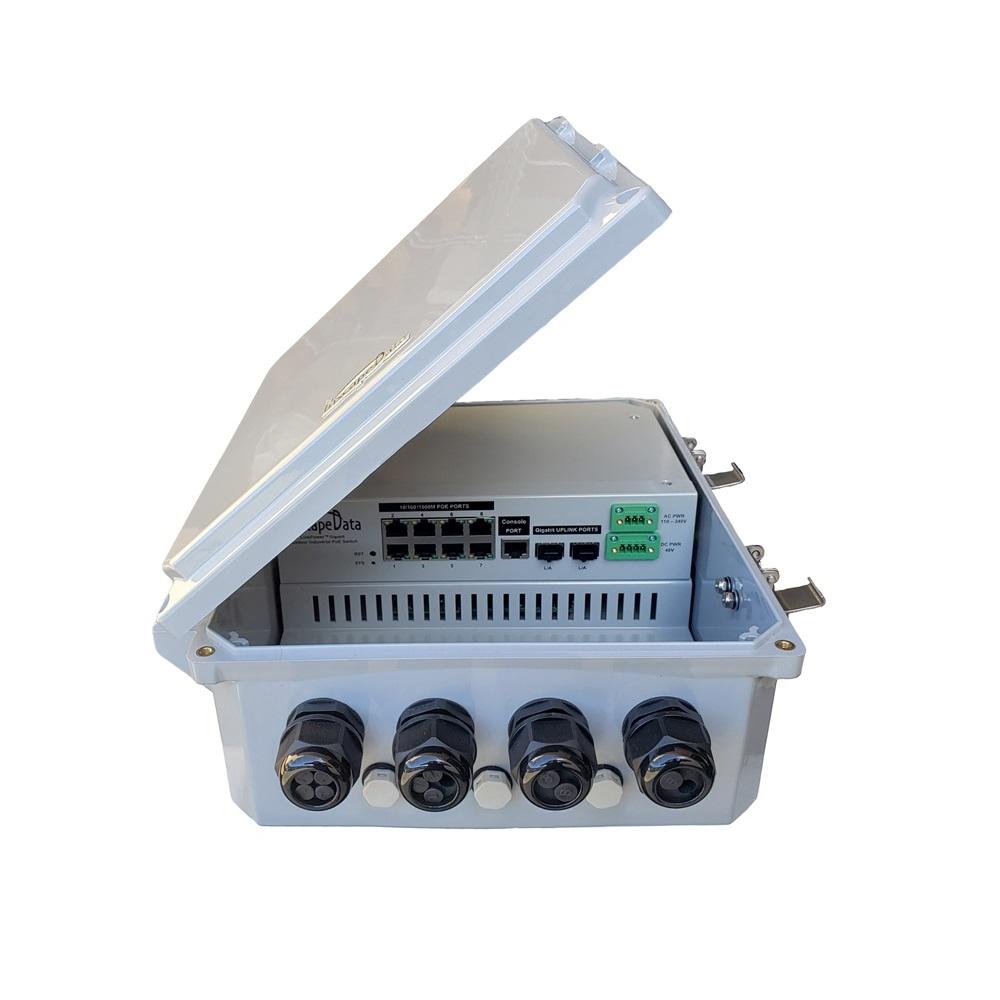

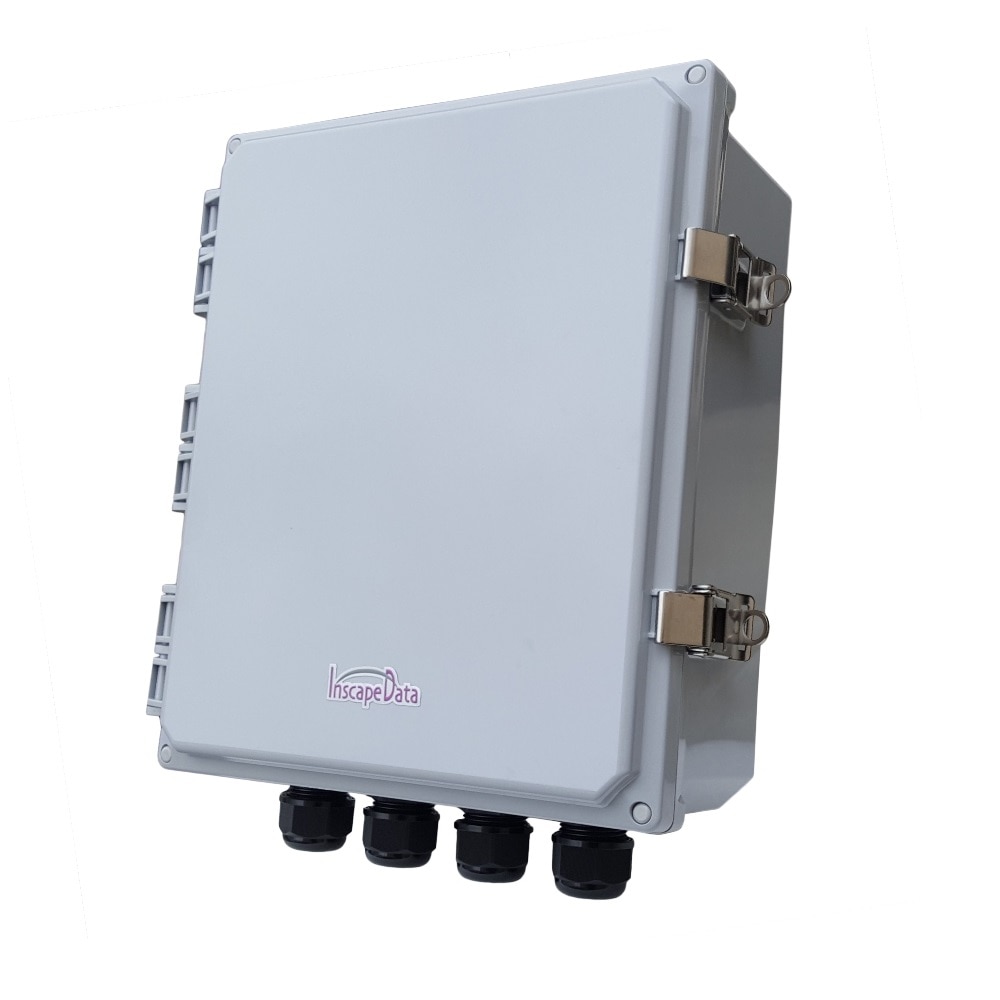

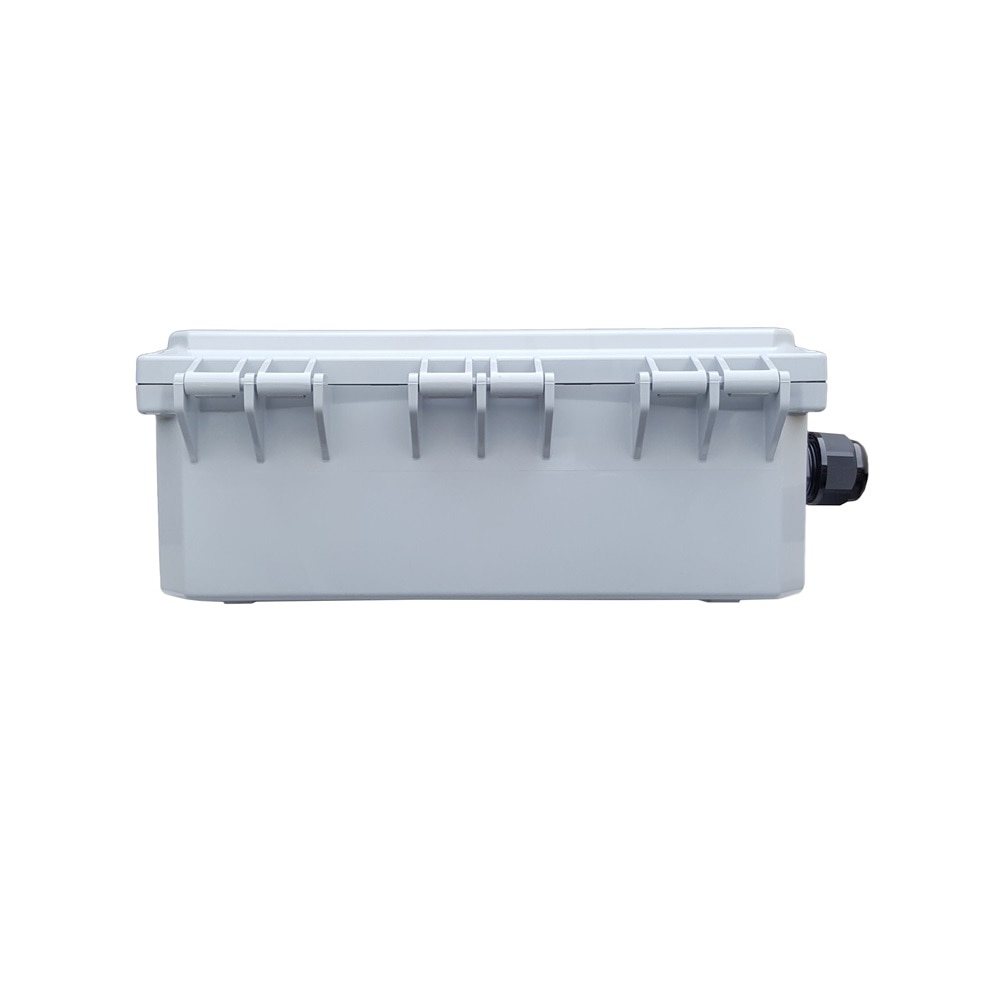

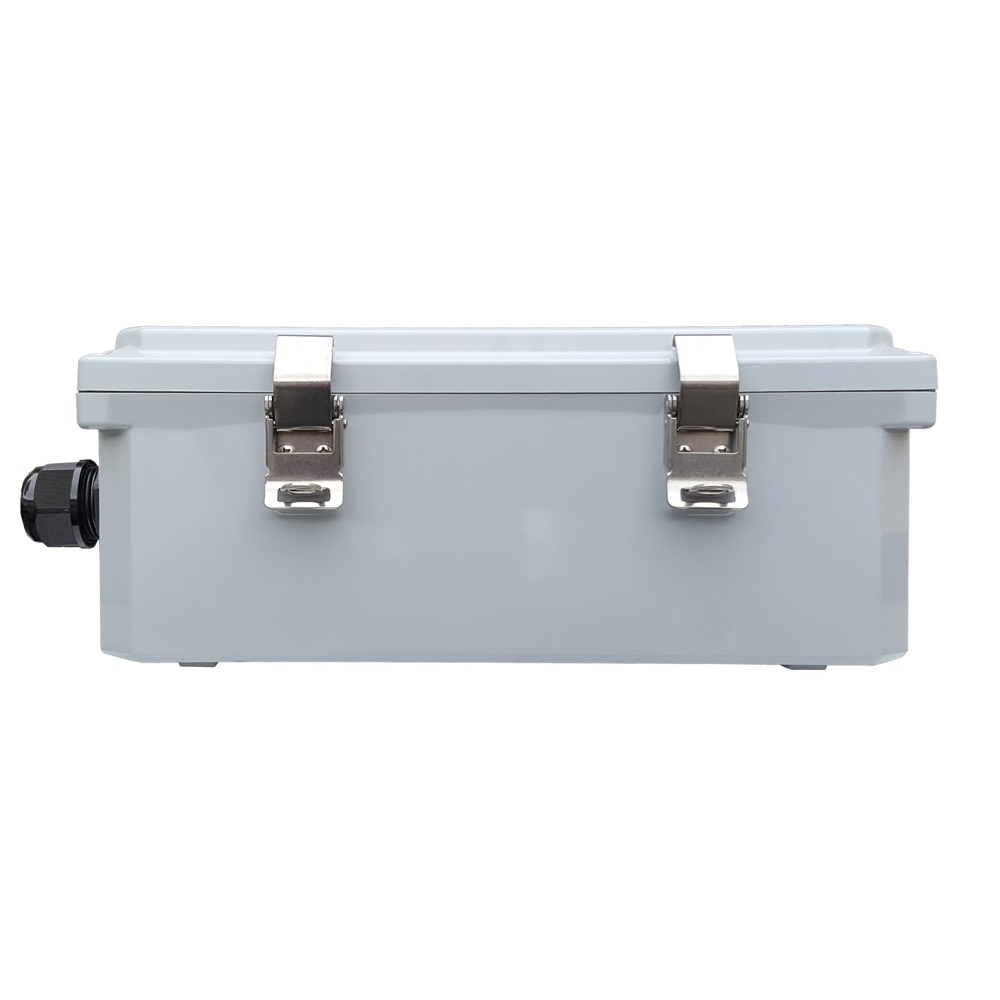

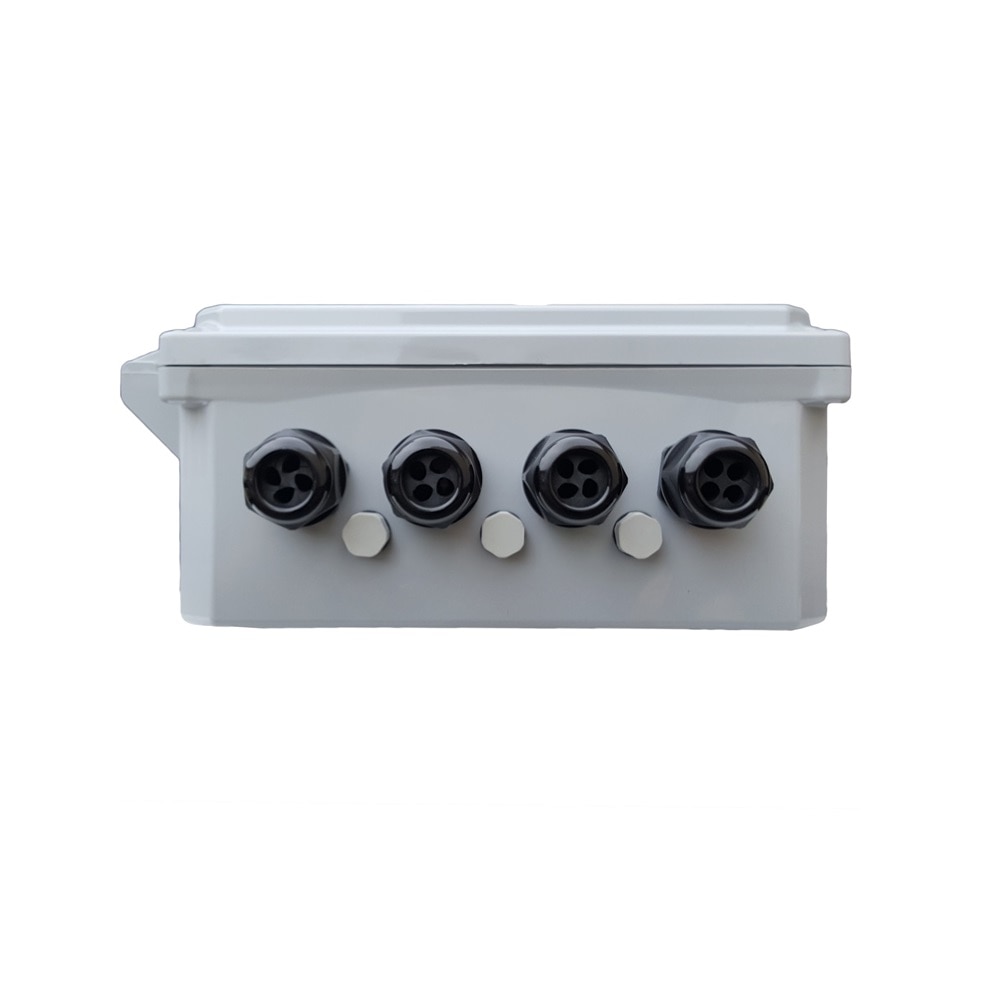

The LinkPower™ LPS3802ATM-T1 is All Weather 10-Port Managed Gigabit PoE (Power over Ethernet) Switch with Eight PoE Ports and Two Gigabit SFP Fiber Optical Uplink Ports is the industry first outdoor weatherproof high speed gigabit Ethernet switch with dual power input redundancy, i.e., 120V~240AC and/or 48V DC input, that delivers data and power over one single network cable protected with an IP68 compliant weatherproof enclosure. The outdoor weatherproof rating of the systems is strictly based on how the top cover is closed. For the hinged cover without the four top cover screws, the outdoor weatherproof rating is IP66 and, otherwise, the outdoor rating is IP68 with the four top cover screws securely closed with the enclosure.
The LPS3802ATM-T1 all weather Gigabit PoE switch is designed for industrial and commercial applications, e.g., video surveillance, remote security, wireless mesh, and carrier wifi installations. The remote manageable features offered by the LPS3802ATM-T1 will greatly reduce the daily maintenance cost. LPS3802ATM-T1 All Weather 8-Port Gigabit PoE is a managed network switch with Link Aggregation, VLAN, Trunking, and QoS technology to meet the accelerating demand for powering the most demanding outdoor PoE devices for up to 30W per PoE port.
In addition, the LPS3802ATM-T1 supports IEEE802.1g VLAN and port based IEEE 802.1p QoS. LPS3802ATM-T1 All Weather Managed 8-Port Gigabit PoE Switch provide internal LED displays that show device status for easy power management and troubleshooting. The PoE technology conveniently eliminates the need to install networked devices, such as Inscape Data’s IP cameras and SB300/BR300, and SB3000/BR3000 wireless products, thereby reducing equipment and installation costs.
Features:
- Dual Power Input Redundancy with 120V~240AC and/or 48V DC
- Compliant to IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x,IEEE 802.1D, IEEE 802.3af, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1W, SNMP, IGMP standards
- Up to eight 10/100/1000M self-sensing RJ45 port, support IEEE802.3af/at PoE power supply function
- Four gigabit SFP fiber ports are capable of high bandwidth and long distance transmission
- All ports support auto-flip (Auto MDI/MDIX)
- Each PoE port can provide power up to 15.4W & 30W
- Supply power for powered devices compatible with IEEE802.3af/at PoE+
- Support IEEE802.3x full duplex flow control and duplex backpressure flow control
- Uplink port speed supports 2.5Gbps on Port 13 & 14 of LPS3800-T1
- Two SFP fiber optic ports, No. 13 & 14, support 2.5Gbps uplink network speed
- 1K MAC address table, 8.8G backplane bandwidth
- Its 3KV network port surge protection can adapt to harsh outdoor environment
- Working temperature from -30˚C ~ +70˚C at full load
- Compatible with Port-based VLAN, IEEE 802.1Q VLAN, GVRP protocols, GVRP, and Dynamic MAC Address Authentication
- Support authentication features including RADIUS, TACACS+, IEEE 802.1x, HTTPS and SSH, and MAC address port locking
- Support SNMP V1/V2c/V3 for different levels network management
- Adopt RMON to effectively improve network surveillance and forecasting capabilities
- Auto accident report through E-mail and the output of electric relay
Specifications
Specifications LPS3802ATM-T1
| Connector | RJ45 Port 4x10/100/1000BaseT (Tx) self detect Fiber Port 2x100/1000Base SFP port |
| Switching Performance | Priority Queue 4 |
| MAC Address Table Size 8 K | |
| Packet Buffer Memory 1Mbit | |
| Network Medium | 10BASE—T Cat3/ 4/ 5 UTP (1100m) 100BASE—TX Cat5 or more UTP (1100m) 1000BASE—TX Cat5 or more UTP (<=150m) 2 5Gbps Uplink Speed on LPS3800AFM-T1 & LPS3800ATM-T1 SFP Port 13 & 14 Single mode (9/125um) fiber transmission the transmission distance can be up to 25km ( Default dual fiber can be customized single fiber) |
| Performance Specifications | MTBF 190 000 hours (about 21 years) Database Telcordia (Bellcore) GB |
| Protocols and Standards | IEEE 802 3 CSMA/CD IEEE 802 3i 10Base—T IEEE 802 3u 100Base—T IEEE 802 3ab 1000Base—T IEEE 802 3x Flow Control IEEE 802 1af DTE Power via MDI IEEE 802 3af Power-over-Ethernet standard IEEE 802 3at Power-over-Ethernet standard |
| LEDs Status | PWR 10/100/1000 PoE SFP Network |
| Power Supply (AC to DC Inte rnal Power Supply) PoE Port Output | AC Input voltaqe 120V 240V AC DC Input voltaqe 48V Output voltaqe 48V DC IEEE802 3af standard each port power is 15 4W total power is 62W for 4 ports IEEE802 3at standard each port power is 30W total power is 120W for 4 ports IEEE802 3af standard each port power is 15 4W total power is 150W for 8 ports IEEE802 3at standard each port power is 30W total power is 240W for 8 ports Support OCP ( Over-Current Protection ) and electronic protection Connection 3-pin AC pluggable connecting terminal 4-pin DC pluggable connecting terminal |

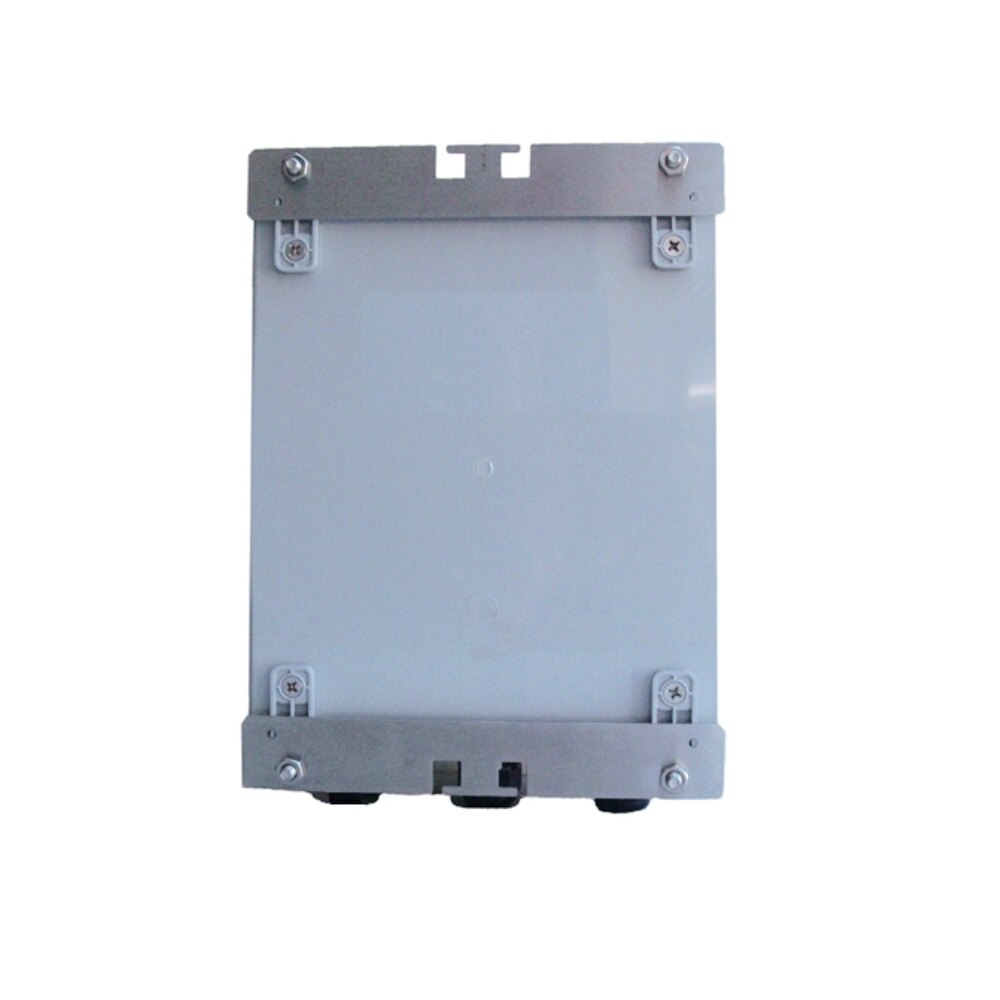

| Dimensions/Weight | Enclosure IP68 protection grade shell Dimension (LxWxH) (12 x 10 x 4 inch 304 8 x 250 4 x 101 6 mm) Weight: 9LB, 4KG Installation Method: Wall Mount / Mast Mount |
| Working Environment | Operating Temperature -306 +70@ |
| Industrial Standard | EMI FCC Part 15 Subpart B Class A EN 55022 Class A EMS EN 61000—4—2 (ESD) Level 3 EN 61000—4—3 (RS) Level 3 EN 61000—4—4 (EFT) Level 3 EN 61000—4—5 (Surge) Level 3 EN 61000—4—6 (CS) Level 3 EN 61000—4—8 TraRc Control NEMATS-2 Rail TraRc EN50155 EN50121—4 Mechanical Project: IEC60068-2-6, IEC60068-2-27, IEC60068-2-32 Industrial : IEC 61000-6-2 |
| Safety | CE Mark commercial CE/LVD EN60950 RoHS UL60591—1 |
| warranty | 3 year |
