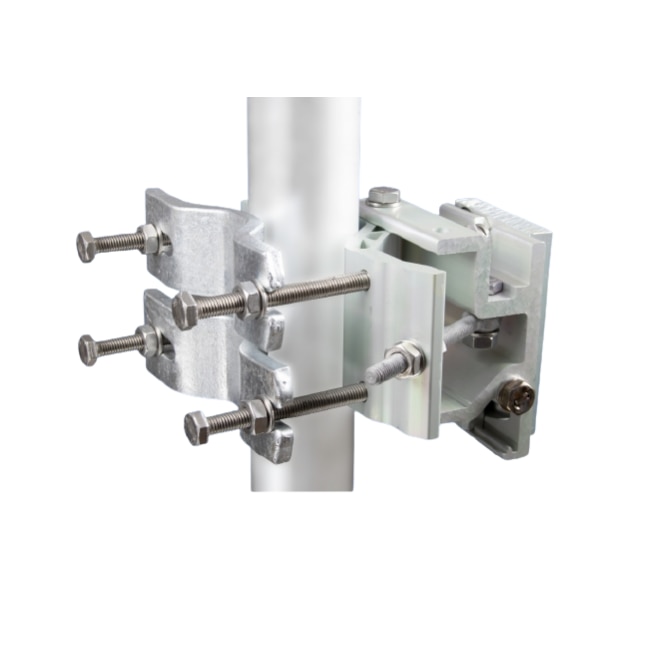

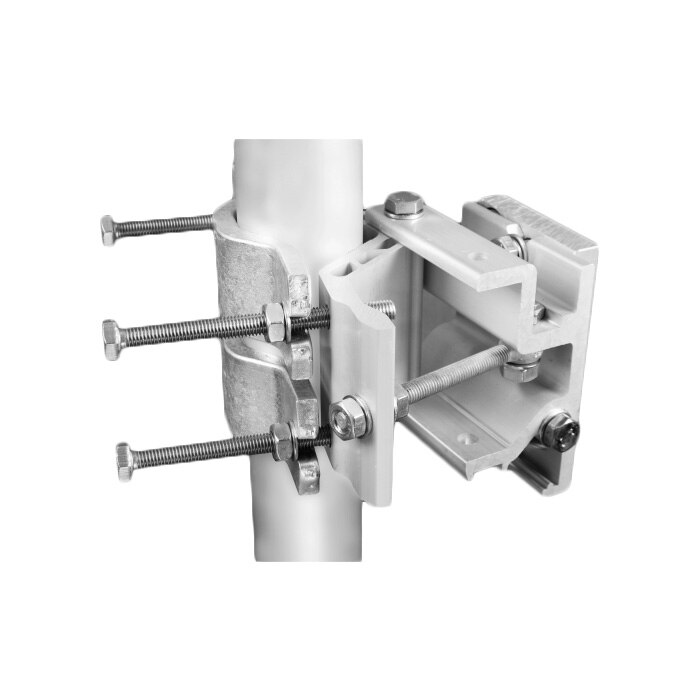

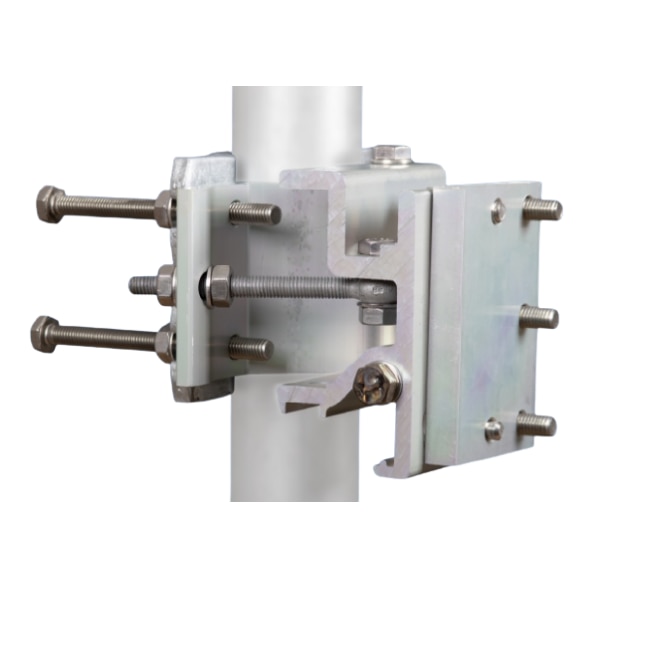

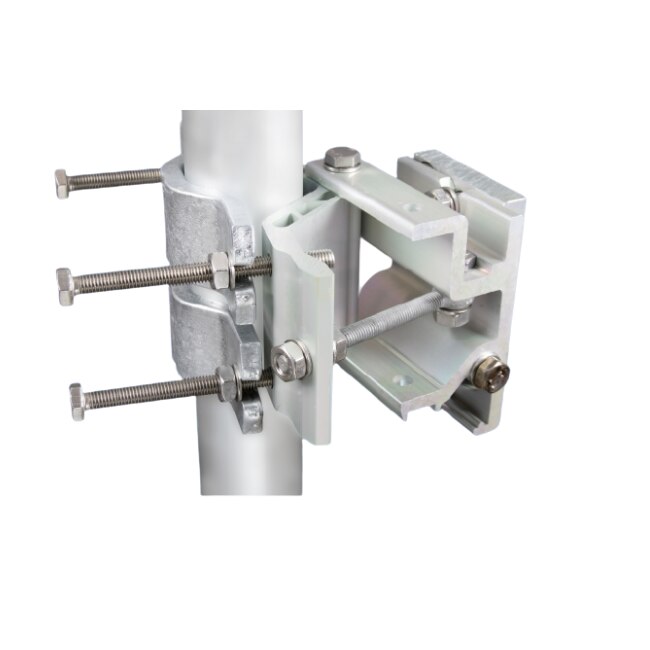

Jirous Precision Antenna Holder JDMW-900 AR for Robust Antennas
US$135.00
- SKU: JDMW-900 AR
- Manufacturer: Jirous
- Data Sheet: Download
Product Information
Jirous JDMW-900 AR
Precision Antenna Holder JDMW-900 AR for Robust Antennas
Antenna holder JDMW-900 AR is for robust antennas with demand for comfortable manipulation, high stability, precise elevation and azimuth adjustments. It is possible to change holder for left sided assembly, too.
Features:
- Antennas for microwave links up to 90 GHz
Easy Mounting:
- During assembly all parts keep together and nothing can fall (screws, nuts...)
- At first, you can install a bracket without heavy antenna and roughly direct it

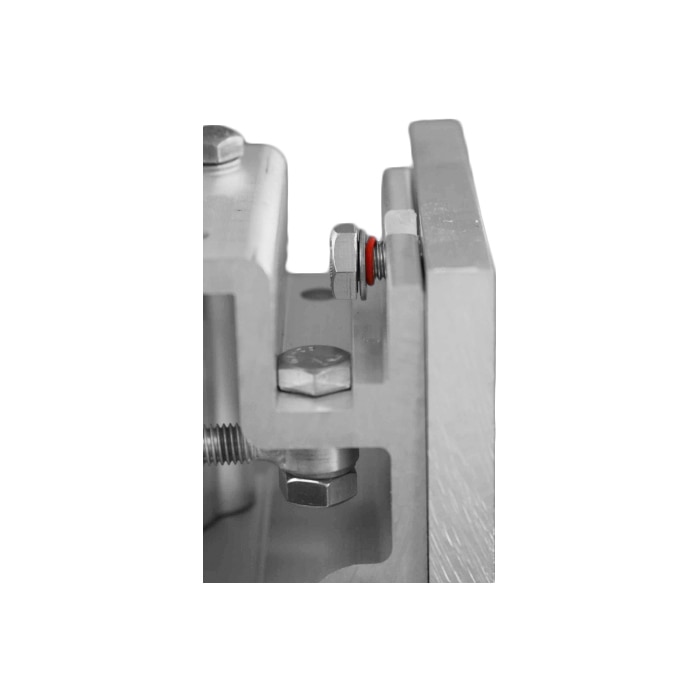

- Hang up the antenna by the screw on the bracket (pad is fixed at the head of the screw)
Specifications
Specifications JDMW-900 AR
| Weight of package with holder | 3.5 kg |
| Package dimensions | 0.325 x 0.18 x 0.165 m |
| Antenna diameter | max. 1000 mm |
| Installation on mast | ø 40 - 120 mm |

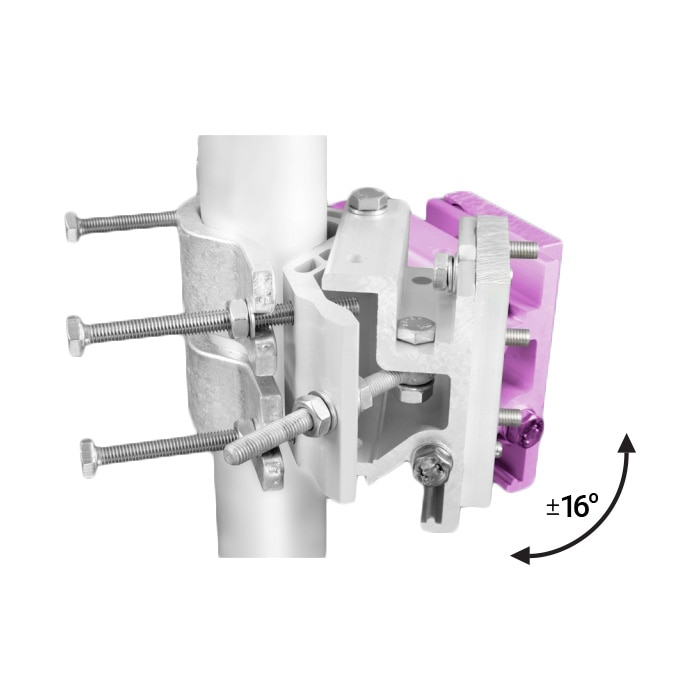

| Fine adjustment of azimut | ±16° |

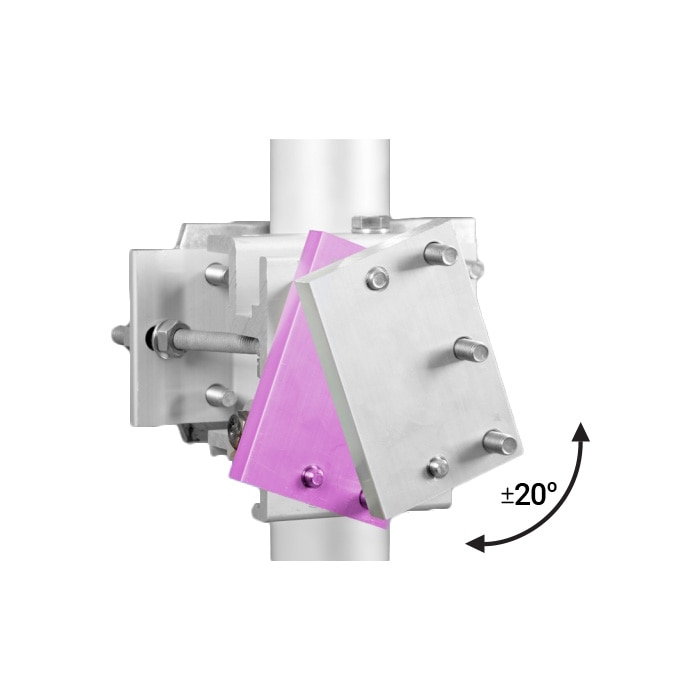

| Fine adjustment of elevation | ±20° |
| Weight | 3.2 kg / 7.1 lb |
