Jirous JRMC-1200-24/26 Ra 24/26GHz Parabolic Antenna
- SKU: JRMC-1200-24/26 Ra
$1,849.00
- Manufacturer: Jirous
- Data Sheet: Download
Product Information
Jirous JRMC-1200-24/26 Ra

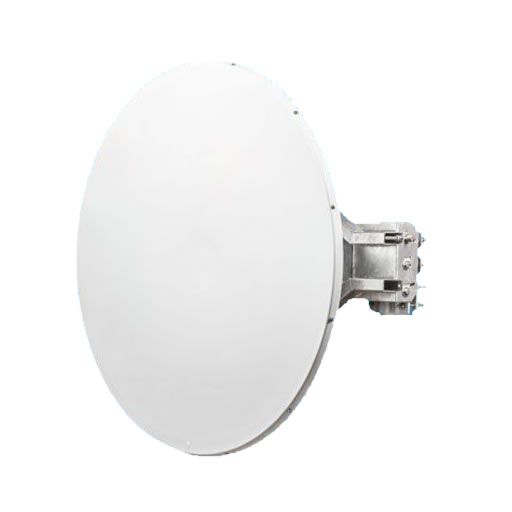

Jirous 24.0 - 26.5GHz, 1200mm Parabolic Antenna
Antenna JRMB – 1200 – 24/26 is designed for microwave links at the frequency band 24 and GHz. Precise performance with deep reflector dish is complying with standard ETSI class 3 and FCC Cat. A.
The antenna is supplied together with a massive bracket that allows easy mounting on a mast. Bracket can be installed separately on the mast. Subsequently, can be simply hang up the antenna with microwave unit into it.
Antenna bracket allows fine setting elevation ± 15°and azimuth ± 7°. It is possible mounting to right and left side. We recommend wind bracing set (optional accessories, Fig. 3) for mounting to the adverse weather conditions. It is necessary to use an adjustable wind bracing kit for mounting on the mast with diameter 60 to 80 mm.
Specifications
Specifications JRMB-1200-24/26 Ra
| Electrical | |
| Frequency range | 24.0 – 26.5 GHz |
| Gain | Low Freq.: 46.6 ± 1 dBi High Freq.: 47.0 ± 1 dBi |
| Front to back ratio | ≥ 73 dB |
| Beamwidth-3 dB | 0.65° |
| Cross-port isolation | ≥ 45 dB |
| Polarization | Linear, Vertical / Horizontal |
| Return loss (VSWR) | ≥ 18 dB |
| ETSI standard | US FCC Cat. A Class 3 ETSI EN 302-217-4-2 |
| Mechanical | |
| Parabola | Ø 1200 mm , aluminium alloy |
| Radom | Fiberglass |
| Input / output | Circle waveguide Ø 8 mm |
| Installation for mast | ø 80 - 120 mm ø 60 - 80 mm – with adjustable wind bracing set |
| Operating wind load - without wind bracing - with wind bracing | 110 km/h (68 mph) 140 km/h (87 mph) |
| Survival wind load | 210 km/h (130 mph) |
| Weight of antenna | 40 kg (88 lbs.) |
| Shipping dimensions – 1 pcs | 1300 mm x 800 mm x 1430 mm |
| Shipping dimensions – 2 pcs | 1300 mm x 1100 mm x 1430 mm |
| Waveguide + fixing of the microwave unit | Racom compatible |
| Dimension | 52 L x 29 W x 57 H 9 (Inch) |
| Weight | 160 lbs |
