KP Performance 2.4 GHz to 2.5 GHz + 4.9 GHz to 7.2 GHz, 4/7 dBi, Omni Antenna with N Female Connector
- SKU: KP-26-SPOMA-4-NF
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information

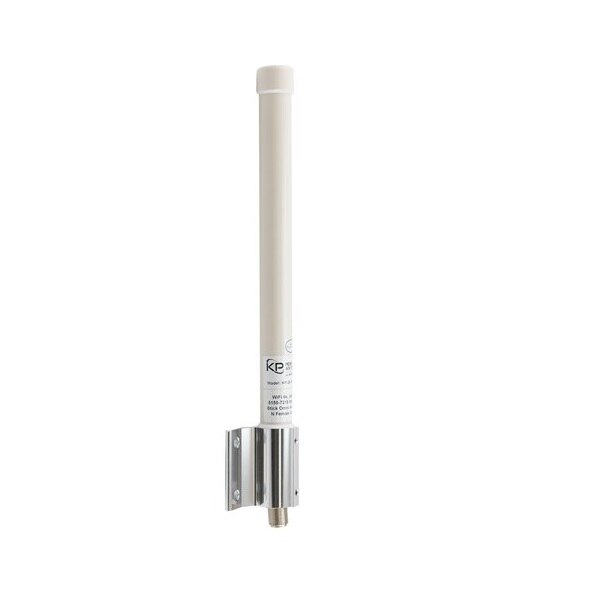

KP Performance KP-26-SPOMA-4-NF
2.4 GHz to 2.5 GHz + 4.9 GHz to 7.2 GHz, 4/7 dBi, Omni Antenna with N Female Connector
The KP-26-SPOMA-4-NF Wi-Fi 6e Stick Omni Antenna is a high-performance omnidirectional antenna designed for the 2400 MHz to 7125 MHz bands and is available to ship same day. It features a Type N Female connector, UV protection, omni-directional patterns for outdoor or indoor use. The KP Performance KP-26-SPOMA-4-NF is ideally suited for 802.11 protocols including 802.11ax as well as IoT, Zigbee and Bluetooth.
The KP Performance high performance omni KP-26-SPOMA-4-NF is a rugged antenna providing broad coverage, low latency, increased network capacity and 4 dBi gain. This N Type Female omnidirectional antenna is suitable for commercial radios and access points in public and private networks that are equipped with N Male connectors. KP Performance’s KP-26-SPOMA-4-NF supports 2.4, 5 and 6 GHz bands.
The KP-26-SPOMA-4-NF omni antenna with N Type Female connector, as well as our wide selection of superior quality RF parts, ships same day. Contact the KP Performance friendly and knowledgeable staff for your answers on any of our antennas.
Specifications
Specifications KP-26-SPOMA-4-NF
| Frequency Range | 2.4 to 2.5 GHz and 5.1 to 7.2 GHz |
| Polarization Type | Vertical |
| Gain | 4 | 7 dBi |
| Vertical Beamwidth | 30° | 18° |
| Horizontal Beamwidth | 360° |
| VSWR | 2.1 |
| Impedance | 50 dB |
| Connector Type | N-Female |
| Weight | 0.33 lbs |
| Dimension | 10.2 in L x 1 in W x 1 in H |
