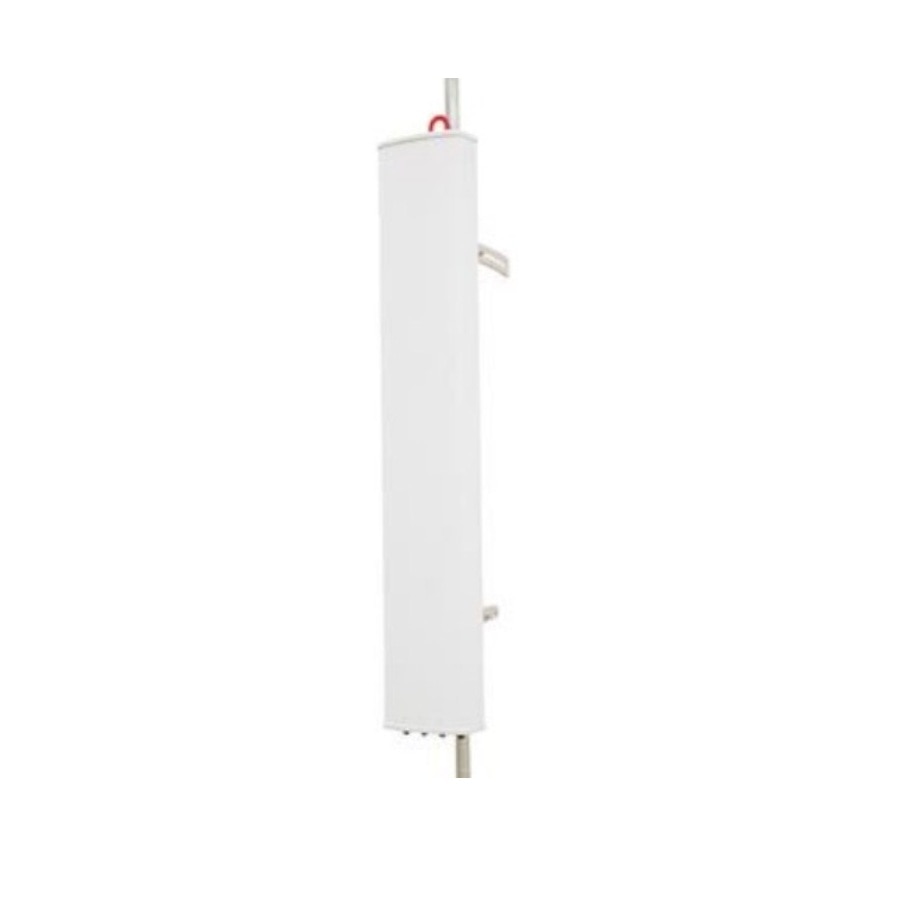

KP Performance 2.3 GHz to 2.7 GHz, 33° Sector Antenna, 19.0 dBi, 4-Port, ±45 Slant
US$654.55 US$689.00
- SKU: KP-2SX4-33
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance KP-2SX4-33
2.3 GHz to 2.7 GHz, 33 Degree Sector Antenna, 19.0 dBi, 4-Port, ±45 Slant
This ProLine Sector Antenna is engineered to deliver high, stable gain over wide bandwidths and suppress side-lobes and back-lobes for mitigating inter-sector interference.
The KP-2SX4-33 is a 33 Degree, 19.0 dBi sector antenna operating from 2.3 GHz to 2.7 GHz. This antenna features 4 ports and ±45° slant polarization with excellent front-to-back of 35 dB.
Features:
- Stable performance over wide bandwidths with flat gain
- Superior port isolation, cross polarization discrimination, gain, VSWR, and front-to-back
- Ultra-wide bandwidths for world-wide markets
- Upper side lobe suppression reduces inter-cell interference
- Null fill improves coverage near the tower
- Side-lobe mitigation and improved front-to-back performance help reject interference
- Integrated hoisting hook for added safety and convenient installation
- Heavy-duty aluminum brackets with powder coated steel hardware
- Universal radio bracket with quick-release slot/clip design is compatible with many AP radios
- Mounts to any size mast from 0.75" to 4.5"
Specifications
Specifications KP-2SX4-33
| Electrical | |
| Frequency Band MHz | 2500—2700 |
| Gain dBi | 19.0±0.25 |
| Polarization Slant | Slant (±45°) |
| Horizontal HPBW Degree | 34±1 |
| Horizontal Squint Degree | ±0.5 |
| Vertical HPBW Degree | 7.8±0.2 |
| Electrical Downtilt Degree | 4 |
| Front-to-Back Ratio @ 180°±30° dB | 30 |
| Upper Side Lobe Suppression (+20°) dB | 15 |
| Cross-polarization Ratio over HPBW dB | 15 |
| VSWR | 1.3 typ | 1.5 max |
| Return Loss dB | 17 typ | 14 max |
| Port-to-Port Isolation dB | 25 |
| Max. Input Power per Port W | 50 |
| Impedance Ohms | 50 |
| Mechanical | |
| RF Connector Type | N-Type Female |
| RF Connector Quantity | 2 |
| RF Connector Position | Bottom of radome |
| Electrical Grounding | RF connector grounded to reflector and mounting bracket |
| Radome Material | UV resistant PVC |
| Reflector Material | Anodized Aluminium |
| Ingress Protection | IP65 rain and dust resistant |
| Wind Load, frontal | 637N @ 160km/h | 143lbf @ 100mph |
| Max. Wind Speed | 160km/h | 100mph |
| Temperature Range | -40° to +60° C | -40° to +140° F |
| Bracket | |
| Material Type | Powder Coated High-Strength Aluminium |
| Mechanical Tilt (Degree) | -1 to 5 (Slot A) | -2 to +8 (Slot B) |
| Mounting Type | Pipe Mount |
| Mounting pole diameter | 19 mm – 114 mm | 0.75 in – 4.5 in |
| Antenna-to-Pipe Distance | 121 mm | 4.8 in |
| Bracket-to-Bracket Distance | 1037 mm | 40.8 in |
| Dimensions | |
| Dimension | 71 in L x 13.75 in W x 10 in H |
| Weight | 38.8 lbs |
