KP Performance 902-928 MHz, Dual Pol, 45 Slant, 2-Port Omni
- SKU: KP-900-DPOMA-45
$909.81 $1,010.90
+ $194.60 Tariff
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information

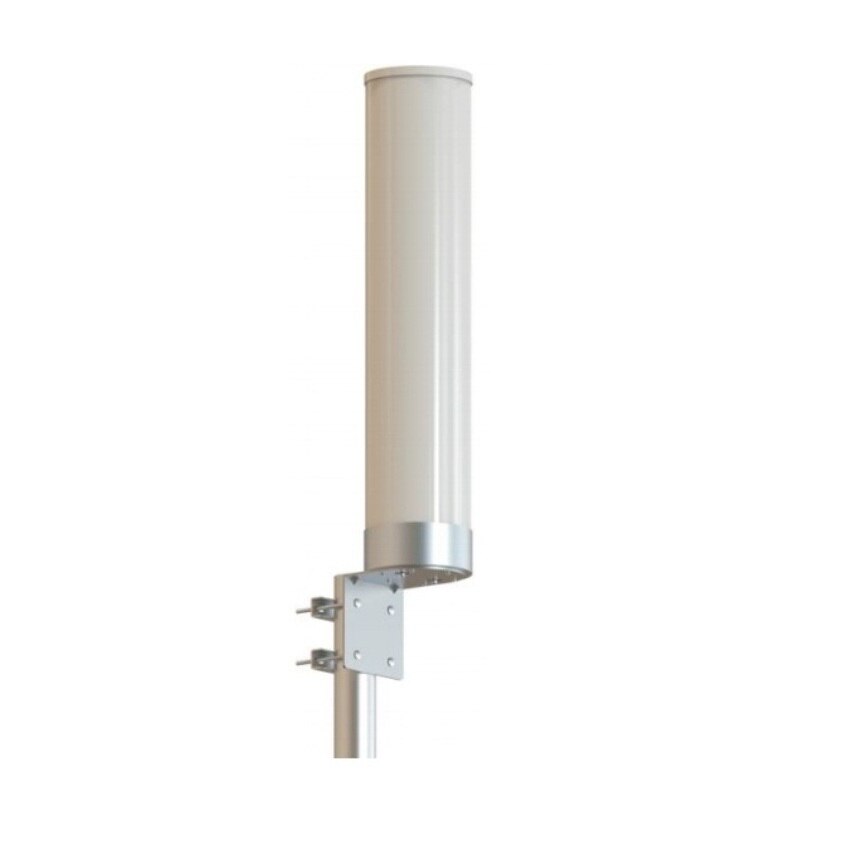

KP Performance KP-900-DPOMA-45
900 MHz, 10 dBi, Dual Pol 45 Slant Omni Antenna, 2-Port
The KP Performance KP-900-DPOMA-45 900 MHz omni antenna is an ideal solution for NLOS, greenfield deployments, or where subscriber unit count may be limited. This dual polarized ±45-degree slant, high-gain, 900 MHz omni antenna has been proven to provide reliable performance through lab and field testing.
KP Performance Antennas' new 900MHz omni antenna operates in the 824-928 MHz frequency range and provides uniform, 360-degree coverage with a minimal azimuth ripple and 10 dBi of gain. It supports any 900MHz AP, including the Cambium PMP 450i 900 MHz AP radio for point-to-multipoint installations. This antenna has 15-degree elevation beamwidth and is able to penetrate dense foliage with 900 MHz, dual, ±45-degree slant polarization.
Features:
- Operating frequency range of 824-928 MHz
- Uniform, 360-degree coverage with a minimal azimuth ripple
- 10 dBi of gain
- ±45-degree slant polarization
- 15-degree elevation beamwidth
Specifications
Specifications KP-900-DPOMA-45
| Electrical Specification | ||
| Frequency Band | 824—900 MHz | 900—928 MHz |
| Gain | 8.5±1 dBi | 10.0±0.5 dBi |
| Polarization | Slant (±45°) | Slant (±45°) |
| Horizontal HPBW | 360 Degree | 360 Degree |
| Vertical HPBW | 17±2 Degree | 15±1 Degree |
| Electrical Downtilt | 1 Degree | 1 Degree |
| Cross-polarization Ratio | 8 typ dB | 9 typ dB |
| VSWR | 1.7 typ | 2 max | 1.5 typ | 1.7 max |
| Return Loss | 12 typ | 10 max dB | 14 typ | 12 max dB |
| Port-to-Port Isolation | 20 dB | 30 dB |
| Max. Input Power per Port | 100 W | 100 W |
| Impedance | 50 Ohms | 50 Ohms |
| Mechanical Specifications | |
| RF Connector Type | Type N Female |
| RF Connector Quantity | 2 |
| RF Connector Position | Bottom of radome |
| Electrical Grounding | RF connector grounded to reflector and mounting bracket |
| Radome Material | UV resistant PVC |
| Ingress Protection | IP55 rain and dust resistant |
| Operating Temperature | -40° to +65° C |
| Max. Wind Speed | 210km/h | 130mph |
| Bracket Specifications | |
| Material Type | Power Coated Galvanized Steel |
| Mounting Type | Pipe Mount |
| Mounting pole diameter | 30 mm – 120 mm | 1.2 in – 4.7 in |
| OMNI Dimensions | |
| Dimension | 51.6 in L x 12.6 in W x 15.4 in H |
| Net Weight, with brackets | 18.0 kg | 39.6 lb |
