KP Performance 2.3 GHz to 2.7 GHz, 65 Degree Sector Antenna, 17.2 dBi, 4-port, ±45 Slant
Product Information

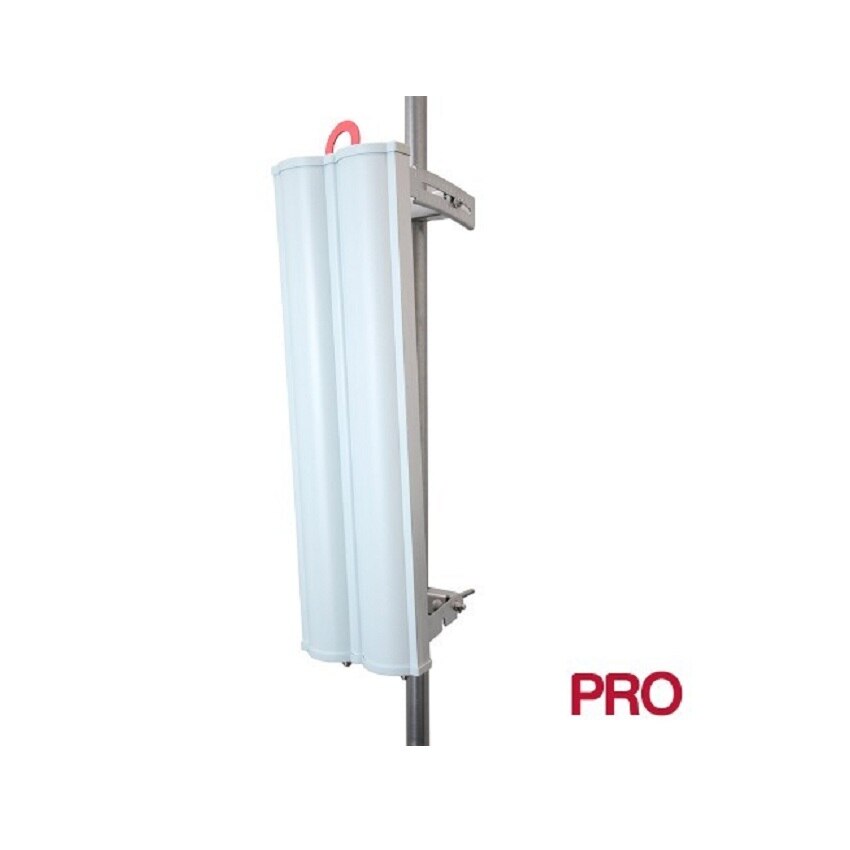

KP Performance KPP-2SX4-65
2.3 GHz to 2.7 GHz, 65 Degree Sector Antenna, 17.2 dBi, 4-port, ±45 Slant
This ProLine Sector Antenna is engineered to deliver high, stable gain over wide bandwidths and suppress side-lobes and back-lobes for mitigating inter-sector interference.
The KPP-2SX4-65 is a 65 Degree, 17.2 dBi sector antenna operating from 2.3 GHz to 2.7 GHz. This antenna features 4 ports and ±45° slant polarization with excellent front-to-back of 33 dB.
Features:
- Stable performance over wide bandwidths with flat gain
- Superior port isolation, cross polarization discrimination, gain, VSWR, and front-to-back
- Ultra-wide bandwidths for world-wide markets
- Upper side lobe suppression reduces inter-cell interference
- Null fill improves coverage near the tower
- Side-lobe mitigation and improved front-to-back performance help reject interference
- Integrated hoisting hook for added safety and convenient installation
- Heavy-duty aluminum brackets with powder coated steel hardware
- Universal radio bracket with quick-release slot/clip design is compatible with many AP radios
- Mounts to any size mast from 0.75" to 4.5"
Specifications
Specifications KPP-2SX4-65
| Frequency Range | 2.3 GHz to 2.7 GHz |
| Polarization Type | 45 Deg. Slant |
| Gain | 17.5 dBi |
| Vertical Beamwidth | 8° |
| Horizontal Beamwidth | 65° |
| Electrical Downtilt | 4° |
| F/B Ratio | 38 dB |
| Connector Type | 4 x Type N Female |
| Dimension | 36 in L x 13 in W x 9 in H |
| Weight | 19 lbs |
