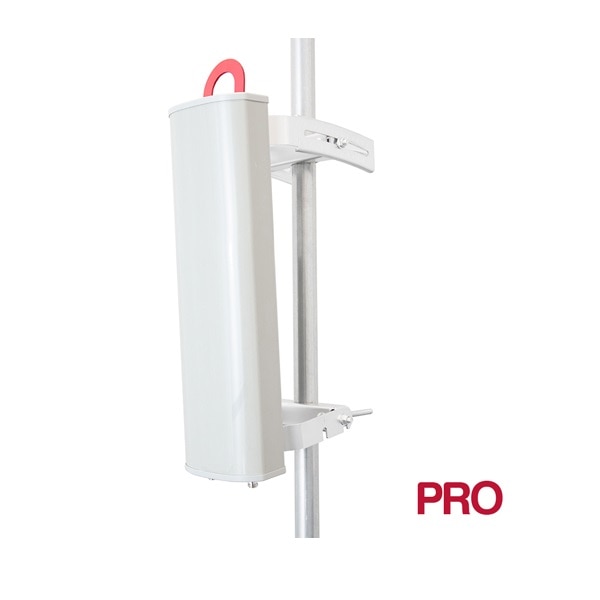

KP Performance 4.9 GHz to 5.9 GHz, 45 Degree Sector Antenna, 20.5 dBi, 2-Port, +/-45 Slant
- SKU: KPP-5DP45S-45
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance KPP-5DP45S-45
4.9 GHz to 5.9 GHz, 45 Degree Sector Antenna, 20.5 dBi, 2-Port, +/-45 Slant
The KPP-5DP45S-45 is a 5 GHz ProLine Sector Antenna with a 3 dB beamwidth of 45°, high gain of 20.5 dBi, two ports with + / - 45 slant polarization, and operates over an ultra-wide bandwidth of 4.9 GHz to 5.9 GHz. The sector antenna has an aesthetically small footprint and delivers consistent gain in its coverage area.
This sector antenna offers side lobes suppression and a front to back over 40 dB while retaining a high gain that outperforms asymmetric horn antennas of the same 3dB azimuth beamwidth. The highly suppressed side lobes and superior front to back allows for channel (frequency) reuse and can reach high levels of spectral efficiency in the most challenging and noisy environments. The polarization is + / - 45 slant, making the sector compatible with many 4.9 GHz to 5.9 GHz single or dual polarization 2 x 2 MIMO radios.
The antenna comes with rugged powder-coated aluminum brackets and features an Integrated hoisting hook for added safety and convenient installation. The sector antenna features a heavy-duty UV-resistant ABS radome and anodized aluminum reflector for all-weather operation. This ProLine Sector antenna is packaged with a rugged universal radio bracket that is compatible with many popular Cambium, Ubiquiti, Mimosa, and Baicells radios and can be retrofitted for many more
Features:
- High-performance gain and patterns that are stable over a wide bandwidth
- Interference mitigation with highly suppressed side-lobes and superior front-to-back that allows channel reuse
- Universal radio bracket with quick-release slot/clip design is compatible with many AP radios
- Ultra-wide bandwidths for world-wide markets
- Integrated hoisting hook for added safety and convenient installation
- Null fill improves coverage near the tower
- -5to 15 Degrees Mechanical Tilt
Applications:
- Wireless MIMO LAN systems & IEEE 802.11n applications
- Point-to-multipoint (PtMP) requiring sectorial coverage
- Supports public safety (4.9 GHz), U-NII-1, 2, 3, and 4 (5.15-5.925 GHz)
- Mobile WiMAX Wireless Internet Provider “cell” sites
- High-density deployments requiring frequency reuse to achieve high capacity and data rates
- Macro base station or small cell deployments
Specifications
Specifications KPP-5DP45S-45
Frequency Range: | 4.9 GHz to 5.9 GHz |
Polarization Type: | 45 Deg. Slant |
Gain: | 20 dBi |
Vertical Beamwidth: | 6.2° |
Horizontal Beamwidth: | 45° |
Electrical Downtilt: | 0° |
F/B Ratio: | 40 dB |
Connector Type: | 2 x Type N Female |
Mounting Mast Diameter | 0.75 to 4.5 in |
Weight | 12 lbs |
Dimension | 20 in L x 5 in W x 2.5 in H |
