KP Performance 4.9 GHz to 6.4 GHz, 90 Degree Sector Antenna, 17.0 dBi, 2-Port, ±45 Slant
- SKU: KPP-5DP90S-45
US$373.49 US$414.99
Product Information

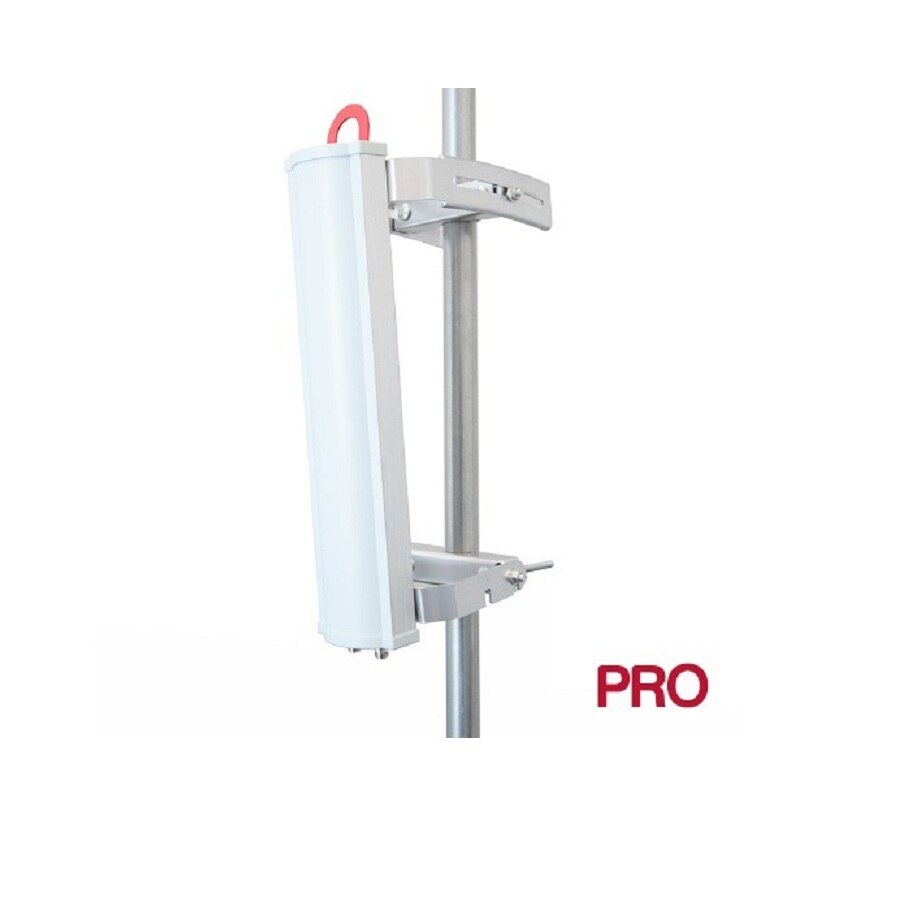

KP Performance KPP-5DP90S-45
4.9 GHz to 6.4 GHz, 90 Degree Sector Antenna, 17.0 dBi, 2-Port, ±45 Slant
This ProLine Sector Antenna is engineered to deliver high, stable gain over wide bandwidths and suppress side-lobes and back-lobes for mitigating inter-sector interference.
The KPP-5DP90S-45 is a 90 Degree, 17 dBi sector antenna operating from 4.9 GHz to 6.4 GHz. This antenna features 2 ports and ±45° slant polarization with excellent front-to-back of 33 dB.
Features:
- Stable performance over wide bandwidths with flat gain
- Superior port isolation, cross polarization discrimination, gain, VSWR, and front-to-back
- Ultra-wide bandwidths for world-wide markets
- Upper side lobe suppression reduces inter-cell interference
- Null fill improves coverage near the tower
- Side-lobe mitigation and improved front-to-back performance help reject interference
- Integrated hoisting hook for added safety and convenient installation
- Heavy-duty aluminum brackets with powder coated steel hardware
- Universal radio bracket with quick-release slot/clip design is compatible with many AP radios
- Mounts to any size mast from 0.75" to 4.5"
Specifications
Specifications KPP-5DP90S-45
| Frequency Range | 4.9 GHz to 6.4 GHz |
| Polarization Type | 45 Deg. Slant |
| Gain | 17 dBi |
| Vertical Beamwidth | 6° |
| Horizontal Beamwidth | 90° |
| Electrical Downtilt | 0° |
| F/B Ratio | 33 dB |
| Connector Type | 2 x Type N Female |
| Dimension | 40 in L x 10 in W x 9 in H |
| Weight | 13 lbs |
