KP Performance 4.9 GHz to 6.4 GHz, 65 Degree Sector Antenna, 17.5 dBi, 8-Port, ±45 Slant

(0)No Reviews yet
US$‎621.30 US$‎654.00
  • SKU: KPP-5SX8-65
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Spec Sheet:Download
81 in stock
College Station
1 In stock
Lewisville TX
80 In stock

Product Information

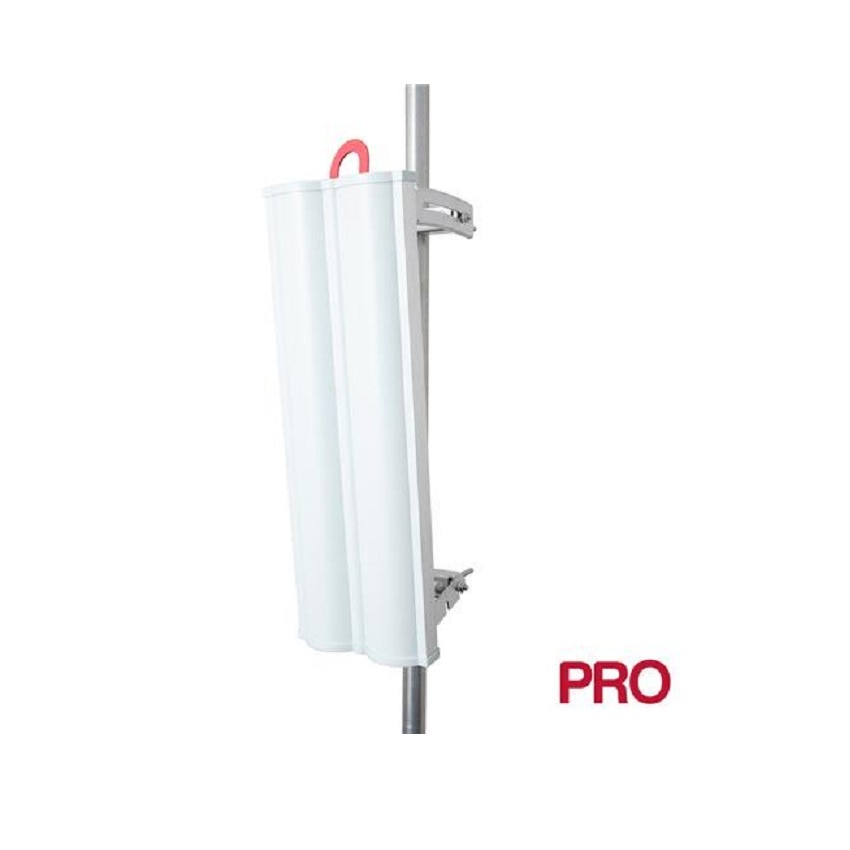

KP Performance KPP-5SX8-65

4.9 GHz to 6.4 GHz, 65 Degree Sector Antenna, 17.5 dBi, 8-Port, ±45 Slant

This ProLine Sector Antenna is engineered to deliver high, stable gain over wide bandwidths and suppress side-lobes and back-lobes for mitigating inter-sector interference.

The KPP-5SX8-65 is a 65 Degree, 17.5 dBi sector antenna operating from 4.9 GHz to 6.4 GHz. This antenna features 8 ports and ±45° slant polarization with excellent front-to-back of 38 dB.


Features:

  • Stable performance over wide bandwidths with flat gain
  • Superior port isolation, cross polarization discrimination, gain, VSWR, and front-to-back
  • Ultra-wide bandwidths for world-wide markets
  • Upper side lobe suppression reduces inter-cell interference
  • Null fill improves coverage near the tower
  • Side-lobe mitigation and improved front-to-back performance help reject interference
  • Integrated hoisting hook for added safety and convenient installation
  • Heavy-duty aluminum brackets with powder coated steel hardware
  • Universal radio bracket with quick-release slot/clip design is compatible with many AP radios
  • Mounts to any size mast from 0.75" to 4.5"

Specifications

Specifications KPP-5SX8-65

Frequency Range4.9 GHz to 6.4 GHz
Polarization Type45 Deg. Slant
Gain17.5 dBi
Vertical Beamwidth
Horizontal Beamwidth65°
Electrical Downtilt
F/B Ratio38 dB
Connector Type8 x Type N Female
Dimension 32 in L x 13 in W x 9 in H
Weight 18 lbs
