KP Performance One 2GHz H/V and one 5GHz H/V antenna in one radome

(0) No Reviews yet
  • SKU: KPPA-2HV5HV-90SS
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$499.99

Specifications KPPA-2HV5HV-90SS

ElectricalPort APort B
Frequency range2300-27005200-5900
PolarizationV/HV/H
Gain15.2 dBi15.8 dBi
Azimuth 3dB beamwidth90 °90 °
Elevation 3dB beamwidth7.2 °4.9 °
Electrical Downtilt< 1 °< 1 °
VSWR, Return loss< 2:1. > 10 dB< 2:1. > 10 dB
F/B ratio> 26 dB> 28 dB
Cross-pol ratio> 29 dB> 30 dB
Port to port isolation, in-band> 29 dB> 26 dB
between bands> -39 dB> -39 dB
ABAB frequency re-use-26 dB-30 dB
ABABAB frequency re-use-22 dB-24 dB
ABCABC frequency re-use-26 dB-30 dB
Input power50 W max per port
Connector TypeType N Female x 4
Mechanical
Dimensions35” x 11” x 6”
Weight15 lb
Mounting methodCarriage bolts
Mounting pole dia1¼” - 3 ½”
Surface FinishMatt powder coat
Environmental
Temperature range-40° to +60° C / +140° F
Wind speed160 km/h / 100 mph
UV protectionUV resistant UPVC
Ingress protectionIP55 rain resistant

KP Performance KPPA-2HV5HV-90SS

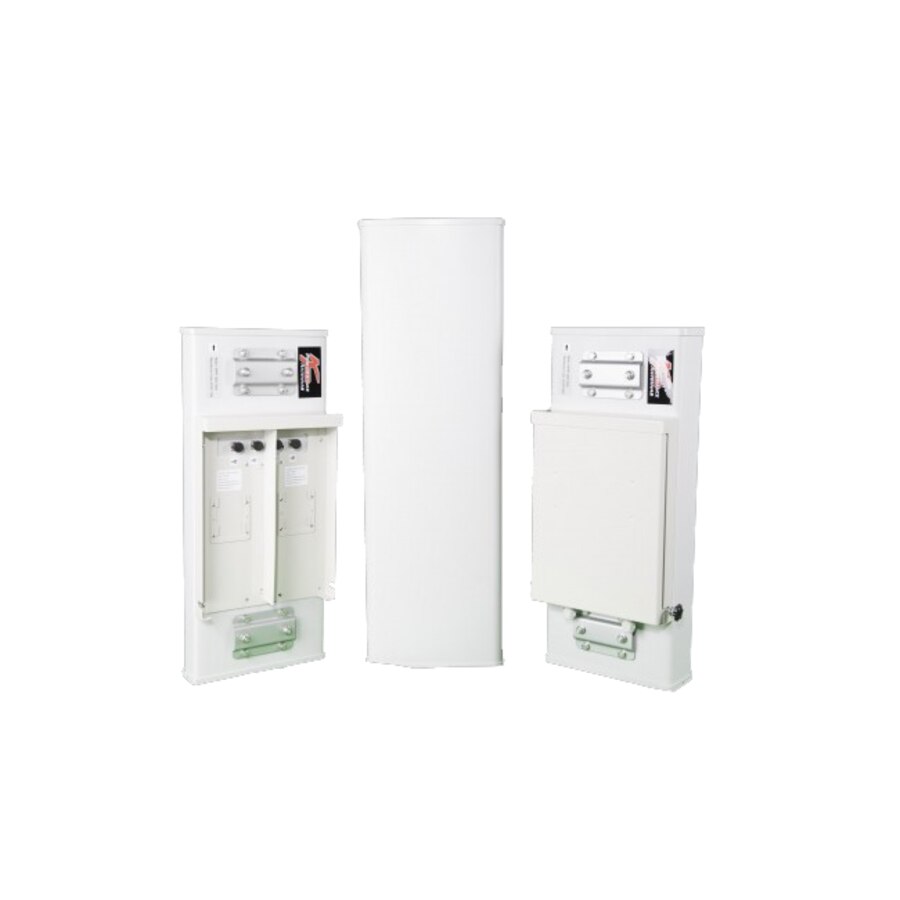

2 GHz H/V + 5 GHz H/V Dual Radio 90 Degree Sector Antenna Side by Side Alignment (Two Sectors In One Shell)

The new generation of dual band sector antennas from KP combine two complete radiating systems within a single rugged radome. This arrangement allows complete coverage while reducing tower rental space and installation costs.

The Kp Performance KPPA-2HV5HV-90SS is a high performance dual-band sector antenna which combines high gain with a 90° beam-width. A 2 GHz H/V polarized antenna and a 5 GHz H/V polarized antenna are integrated into a single enclosure with each internal antenna fed via its own individual connectors. Its dual-band design makes it suitable for applications in the 2 GHz and 5 GHz band which eliminates the need to purchase different antennas for each frequency. This dual sector antenna comes with a rugged case for two UBNT or ePMP radios and an adapter for external mounting up to two PMP radios. Pigtail cables not included.

Features

  • Two forward-facing 90° sector antennas in a single radome, one for each band
  • High gains of 15.2 and 15.9 dBi
  • Clean patterns for frequency re-use on the same tower
  • Supplied with KP’s over-designed universal adjustable bracket, in hot-dip galvanised steel, with wide U-bolts for mounting on poles or tower legs up to 4”.
  • Mounting space for two ePMP radios on back

Advantages

  • Reduced inches on tower, only 28” tall
  • Single mounting point means half the tower rental
  • Lower wind resistance than two equivalent sectors
  • Allows upgrade path to add a frequency band without using more space on tower.
  • Faster installation than two single-band sectors
