KP Performance Two 65 Degree Sector Antennas in Single Radome, 2GHz, 17.5dBi per port
- SKU: KPPA-2S2S-65SA
$377.08
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information

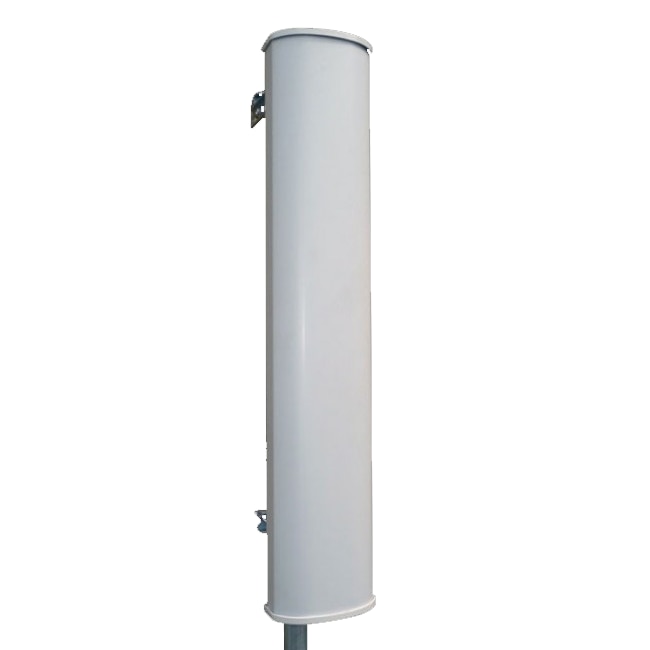

KP Performance KPPA-2S2S-65SA

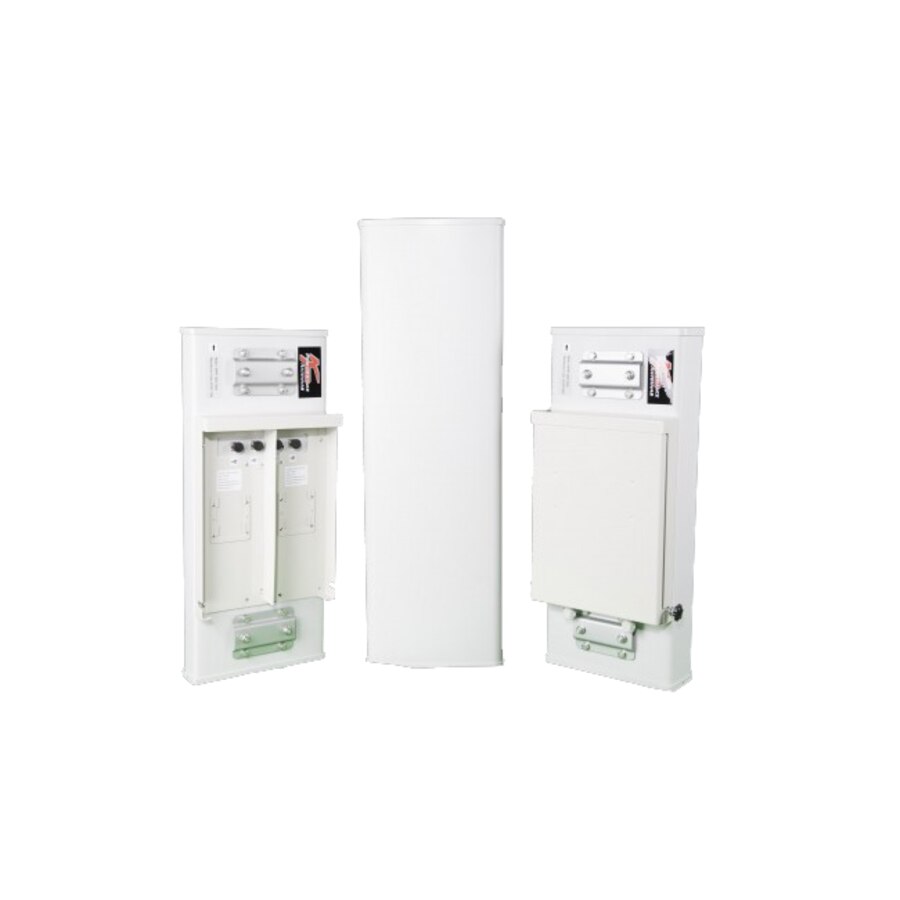

The new generation of dual-antennas from KP combine two complete radiating systems within a single rugged radome. This arrangement allows complete coverage while reducing tower rental and installation costs. The KPPA-2S2S-65SA is a high performance dual-band sector panel antenna which combines high gain with a 65° beam-width. Two 2GHz ±45 antennas integrated into a single enclosure with each internal antenna fed via its own individual connectors. Its dual-band design makes it suitable for applications in 2GHz band which and eliminates the need to purchase different antennas for each frequency. Comes with a rugged case for two UBNT or ePMP radios and an adapter for external mounting up to two PMP radios. Pigtail cables not included.
Specifications
Specifications KP Performance KPPA-2S2S-65SA
| Frequency range | 2400-2500 |
| Polarization Type | ±45 |
| Gain | 17.5 dBi |
| Beamwidth H/V | 62° per port / 120° total |
| Electrical Downtilt | > 1° |
| Cross Polar Ratio | > 21 dB |
| F/B Ratio | > 28 dB |
| V/H Port Isolation | > 23 dB same radio / > 33 dB other radio |
| Input Power | 50 W max per port |
| Return Loss | 10 dB |
| VSWR | < 2:1 |
| Input Impedance | 50 Ω |
| Connector Type | Type N Female x 4 |
| Operating Temperature | -40° to +60° C / +140° F |
| Length | 35.5'' |
| Width | 11.5'' |
| Height | 11.5'' |
| Rated Wind Velocity | 160 km/h / 100 mph |
| UV Protection | UV resistant powder coat |
| Ingress Protection | IP54 rain resistant |
| Weight | 18 lbs |
| Mounting Method | Carriage bolts |
| Surface Finish | Matte powder coat |
