KP Performance 2 GHz ±45 + 5 GHz H/V 90° Dual Radio Sector Side by Side Alignment (2 Sec one Shell)

(0) No Reviews yet
  • SKU: KPPA-2S5HV-90SS
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: 1 In Stock (updated live)
$399.99

Specifications KP Performance KPPA-2S5HV-90SS

Frequency range2400-2500 / 5400-5900 MHz
Polarization Type±45 / Vertical and Horizontal
Gain15.8 dBi / 14.9 dBi
Beamwidth H/V90° per port
Electrical Downtilt< 0.5 °
Cross Polar Ratio> 16 dB / > 30 dB
F/B Ratio> 27 dB
V/H Port Isolation > 28 dB 2GHz / > 27 dB 5GHz / - > 39 dB between bands
Return Loss> 10 dB
VSWR< 2:1
Input power50 W max per port
Connector TypeType N Female x 4
Operating Temperature-40° to +60° C / +140° F
Length35''
Width11"
Height5.5''
Rated Wind Velocity160 km/h / 100 mph
UV ProtectionUV resistant UPVC
Ingress ProtectionIP55 rain resistant
Weight16 lb
Mounting MethodCarriage bolts
Surface FinishMatte powder coat

KP Performance KPPA-2S5HV-90SS

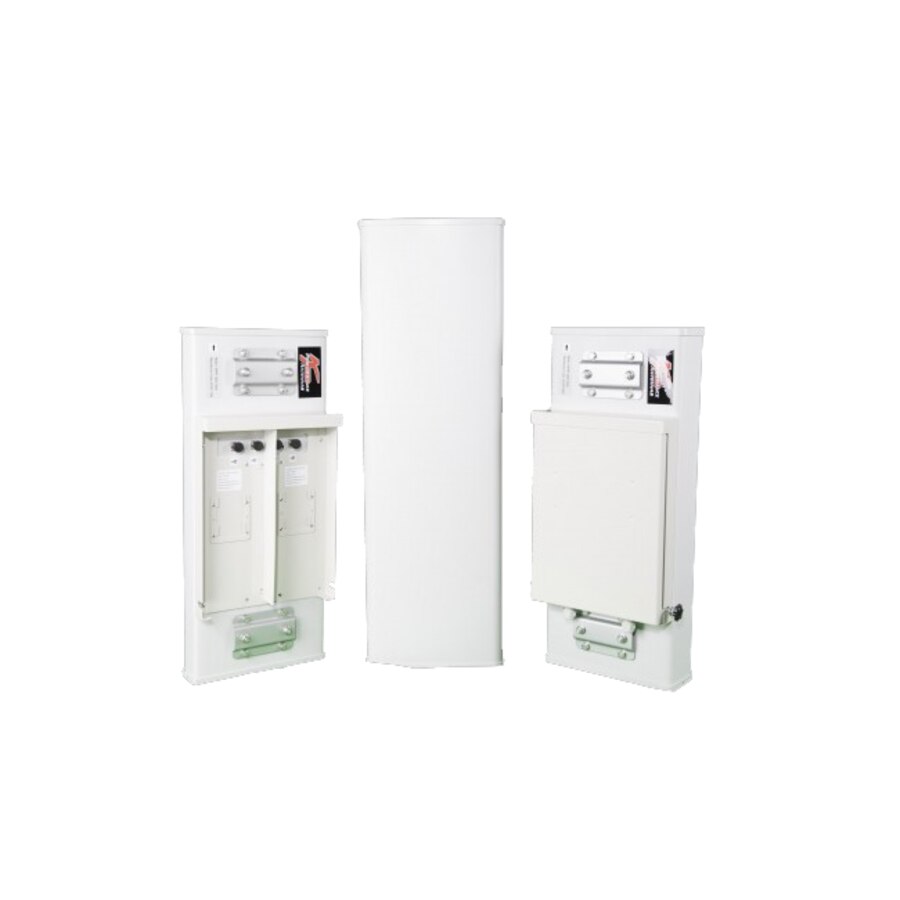

2 GHz ±45 Degrees + 5 GHz H/V Dual Radio 90 Degree Sector Antenna Side by Side Alignment (Two Sectors In One Shell)

The new generation of dual band sector antennas from KP combine two complete radiating systems within a single rugged radome. This arrangement allows complete coverage while reducing tower rental space and installation costs.

The KPPA-2S5HV-90SS is a high performance dual-band sector antenna which combines high gain with a 90° beam-width. A 2 GHz ±45 antenna and a 5 GHz H/V antenna are integrated into a single enclosure with each internal antenna fed via its own individual connectors. Its dual-band design makes it suitable for applications in the 2 GHz and 5 GHz band which eliminates the need to purchase different antennas for each frequency. This dual sector antenna comes with a rugged case for two UBNT or ePMP radios and an adapter for external mounting up to two PMP radios. Pigtail cables not included.
