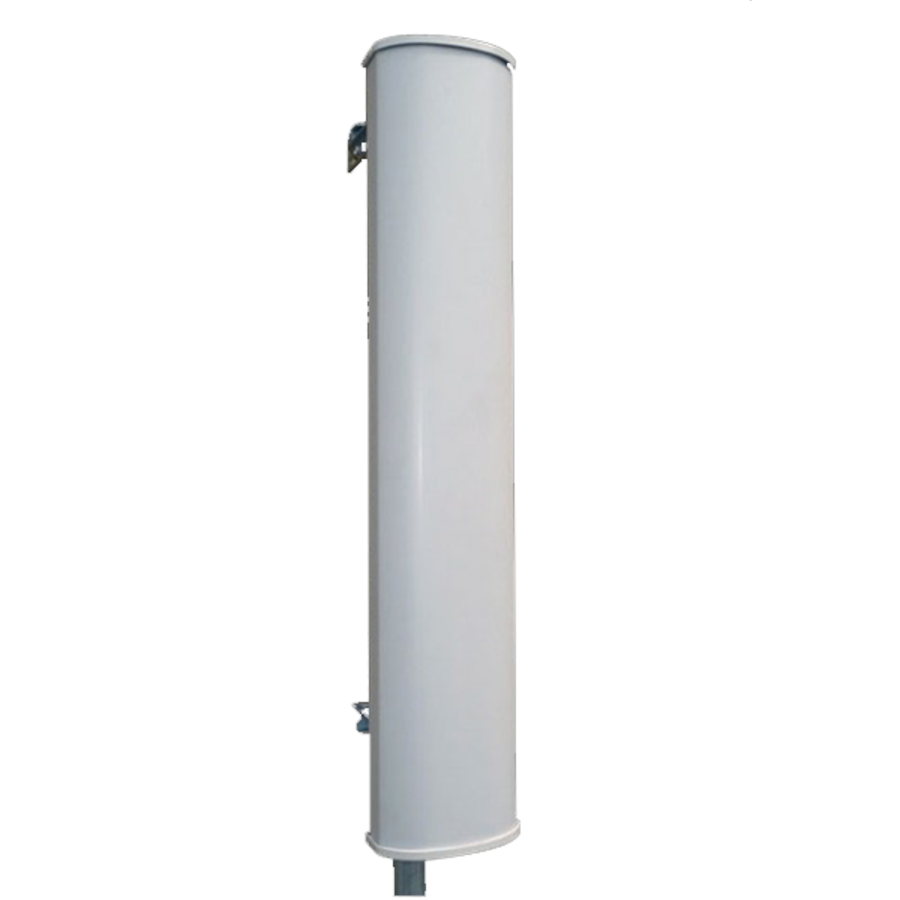

KP Performance 5GHz 120 degree 16.3 dBi Dual Pol Sector Gen III

(0) No Reviews yet
  • SKU: KPPA-5GHZDP120S
  • Manufacturer: KP Performance
  • Data/Spec Sheet: Download
  • Availability: 1 In Stock
$328.84

Specifications KPPA-5GHZDP120S

Part NumberKPPA-5GHZDP120S
Electrical
Frequency range5400-5900 MHz
PolarizationVertical and Horizontal
Gain16.3 dBi
Azimuth 3dB beamwidth120 °
Elevation 3dB beamwidth4.4 °
Electrical Downtilt0.9 °
VSWR< 2:1
Return loss> 10 dB
F/B ratio> 32 dB
Cross-pol ratio> 27 dB
V-H port isolation33 dB
ABAB frequency re-use29 dB
ABABAB frequency re-use-14 dB
ABCABC frequency re-use-30 dB
Input power30 W max per port
Impedance50 Ω
Connector TypeType N Female x 2
Mechanical
Dimensions27 x 7 x 3”
Weight9 lb
Mounting methodCarriage bolts
Mounting pole dia1¼” – 4”
Surface FinishMatt powder coat
Environmental
Temperature range-40° to +60° C / +140° F
Wind speed160 km/h / 100 mph
UV protectionUV resistant powder coat
Ingress protectionIP54 rain resistant

5GHz 120 degree 16.3 dBi Dual Pol Sector GEN III KPPA-5GHZDP120S

5GHz 120 degree 16.3 dBi Dual Pol sectors with two N connections. ABC ABC frequency re-use -30 dB

KP Performance Antennas is producing the product leading dual pol sector antennas out there today. Our KP sectors will provide you the consistent coverage you need to offer quality service. Options of Ubiquiti rocket radio box shield kits built on for companies deploying UBNT equipment. This option is a full metal enclosure for the Ubiquiti rocket with radio mount for ease of installation. Deploying our option reduces overall square footage on your towers and therefore preventing added wind load over other sectors on the market. The KPPA-5GHZDP120S & KPPA-5GHZDP65S & KPPA- 5GHZDP45S antennas comes with heavy duty mounting brackets with an easy attach system, stainless steel hardware and two shielded LMR 200 pigtails for increased performance. These sectors have an exceptional F/B ratio and the performance you have come to expect from KP Performance Antennas.
