KP Performance 5 GHz 17 dBi Dual Pol H/V 90 Degree Sector Antenna (Cables Included)
US$221.94 US$233.62
Product Information
- Description
- Specifications

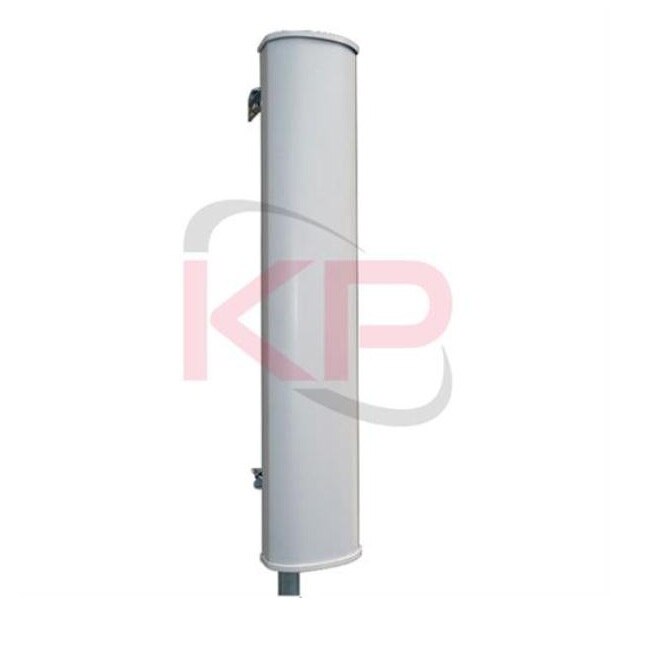

KP Performance KPPA-5GHZDP90S
5 GHz 90° 17.5 dBi Dual Pol Sector Gen II / Cables Included
The KP Performance KPPA-5GHZDP90S is a 5 GHz 90 degree 17 dBi H/V dual polarized sector antenna. These sector antennas come with heavy duty mounting brackets with an easy-attach system and stainless steel hardware. KP Performance 5 GHz sectors have an exceptional F/B ratio and designed for channel reusability on towers between sectors. This sector antenna is designed with two N connections.
Features:
- Functional mounting bracket
- Flexible LMR200 cables provided
- Stainless steel hardware
- Cost effective all in one Omni Antenna solution with radio casing attached
Specifications KPPA-5GHZDP90S
| Frequency Range | 5.1 GHz to 5.9 GHz |
| Polarization Type | Horizontal/Vertical |
| Gain | 17 dBi |
| Vertical Beamwidth | 4.7° |
| Horizontal Beamwidth | 90° |
| Electrical Downtilt | 1° |
| F/B Ratio | 32 dB |
| VSWR | 1.5:1 |
| Cross Polar Ratio | 28 dB |
| Port Isolation | 24 dB |
| Connector Type | 2 x Type N Female |
