KP Performance 5 GHz 90° 16.3 dBi Sector GEN III with PMP Mounting Bracket

(0)No Reviews yet
US$‎232.74 US$‎244.99
  • SKU: KPPA-5GHZDP90S-PMP
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide:Download

Out of Stock

164 in stock
Lewisville TX
164 In stock

Product Information

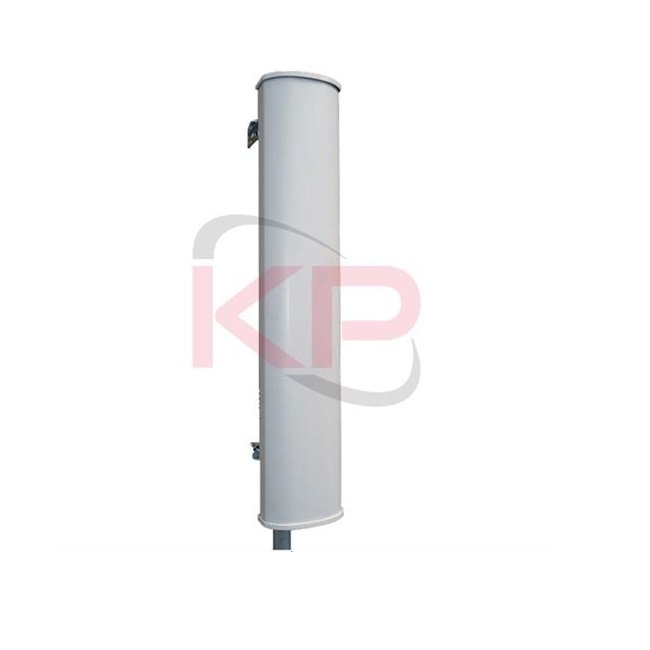

KP Performance KPPA-5GHZDP90S-PMP

5 GHz 16.3 dBi Dual Pol 90 Degree Sector Antenna with PMP Mounting Bracket

The KP Performance KPPA-5GHZDP90S-PMP is a 5 GHz, 16.3 dBi, 90-degree, ±45 Degree Slant sector antenna with two type-N connectors. This 5 GHz sector antenna is specifically designed for customers deploying 45 degree slant radios. This sector antenna has an adapter on the back specially designed for mounting a Cambium PMP radio.

These sector antennas come with heavy duty mounting brackets with an easy-attach system and stainless steel hardware. These 5 GHz sectors have an exceptional F/B ratio and designed for channel reusability on towers between sectors.

Specifications

Specifications KPPA-5GHZDP90S-PMP

Frequency Range5.1 GHz to 5.9 GHz
Polarization TypeHorizontal/Vertical
Gain16.3 dBi
Vertical Beamwidth4.4°
Horizontal Beamwidth90°
Electrical Downtilt
F/B Ratio32 dB
VSWR2:01
Cross Polar Ratio27 dB
Port Isolation33 dB
Connector Type2 x Type N Female
