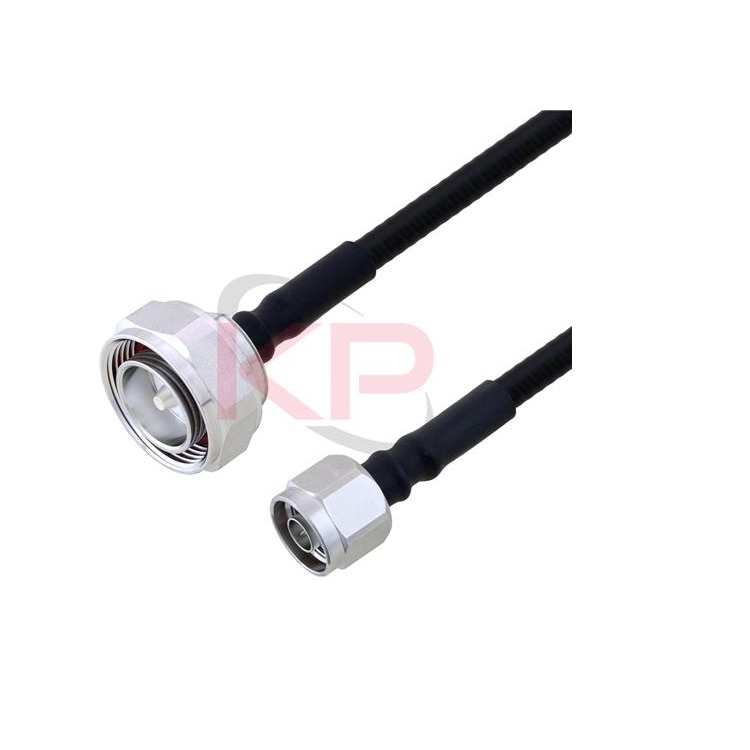

KP Performance 1/4" Superflex 7/16 DIN Male to N Male 24" Cable 1pcs
- SKU: KPPA-716-N-24-SF
US$81.89 US$90.99
- Manufacturer: KP Performance
Product Information
KP Performance KPPA-716-N-24-SF
1/4" Superflex 7/16 DIN Male to N Male 24" Cable 1pcs
The KP Performance KPPA-716-N-24-SF cable assembly is a Low PIM cable utilizing a 7/16 DIN male connector on one side and Type-N male on the other. It uses a 1/4" super flexible coax and has a PIM rating of -152 dBc mininimum and -155 dBc typical.
Use this cable with our Low PIM sector antennas designed for LTE networks:
- KP-3S3S-65SA | 3 GHz ±45 Deg. Slant + 3 GHz ±45 Deg. Slant Combo 65 Deg. Sector Antenna
- KP-3SX4-65 | 3 GHz 65 Degree ± 45 Degrees Slant (4-Port) 18 dBi Sector Antenna
Specifications
Specifications KPPA-716-N-24-SF
| Connector Type | 7/16 DIN to Type N |
| PIM Rating | -152 dBc min. & -155 dBc typ. |
| Connector Gender 1 | Male (Plug) |
| Connector Polarity 1 | Standard |
| Connector Angle 1 | Straight |
| Connector Impedance 1 | 50 Ohm |
| Connector Gender 2 | Male (Plug) |
| Connector Polarity 2 | Standard |
| Connector Angle 2 | Straight |
| Connector Impedance 2 | 50 Ohm |
| RF Cable Type | Low PIM 1/4” Superflex |
| RF Cable Impedance | 50 Ohm |
