Product Information

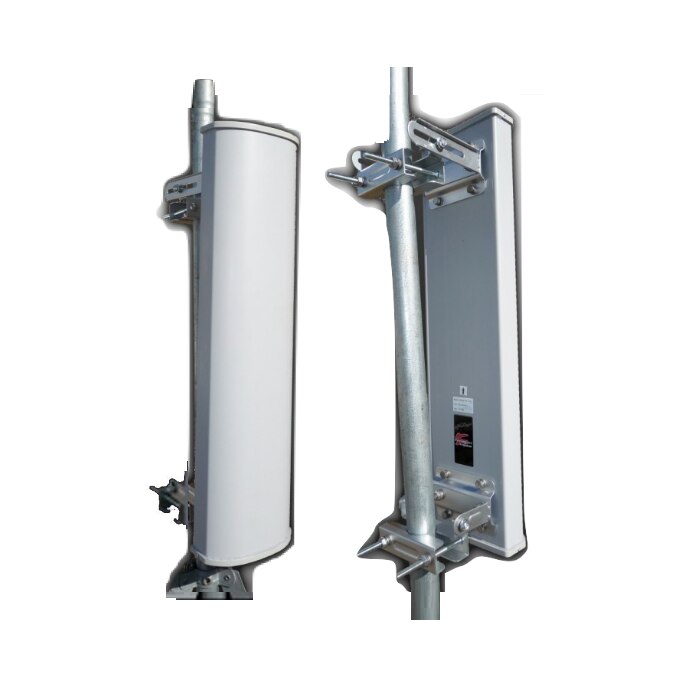

KP Performance KPPA-900-120-11.5

900 MHz 11.5 dBi Single Pol Horizontal 120 Degree Sector Antenna (Cables Included)

The KP Performance KPPA-900-120-11.5 is a 900 MHz 11.5 dBi sector antenna designed for Non Line of Sight (NLOS) applications. This sector antenna has been constructed with heavy duty aluminum extrusion and covered with a UV resistant ABS radome.

The KPPA-900-120-11.5 horizontal polarized antenna is very well suited for communicating with fixed and mobile wireless clients. The size of this sector antenna will allow you to install three sectors on one small tower. Because of its high gain of 11.5 dBi, it offers superior extended range. The 120 degree beamwidth also covers a large service area. The heavy duty mounting system on this sector antenna will ensure a stable installation in high wind conditions. The mount has a tilt indicator to enable setting of accurate antenna down tilt.


Features:

  • 900 MHz horizontal polarized sector antenna
  • 11.5 dBi gain
  • 120 degree beamwidth
  • Heavy duty stainless steel scissor bracket
  • Type N female integrated connector
  • Heavy duty mounting brackets

Specifications

Specifications KP Performance KPPA-900-120-11.5

Frequency range902-928 MHz
Polarization TypeHorizontal
Gain11.5 dBi
F/B Ratio> 17 dB
VSWR1.5
Input Impedance 50Ohms
Maximum Power50W
Return loss> 14 dB
Connector TypeN-Female
Mounting pole dia1¼ “ – 3 ½”
Surface FinishMatt powder coat
Rated Wind Velocity120 m/s
Rated Wind Loading98.3 Lbs
Ingress protectionIP55 rain resistant
Dimension 33 in L x 9 in W x 8 in H
Weight 15 lbs
