Laird Technologies RJ45 Field Replaceable Ethernet Connector System
- SKU: RJ45-ECS
- Manufacturer: Laird Technologies
- Datasheet: Download
Product Information
Laird Technologies RJ45-ECS

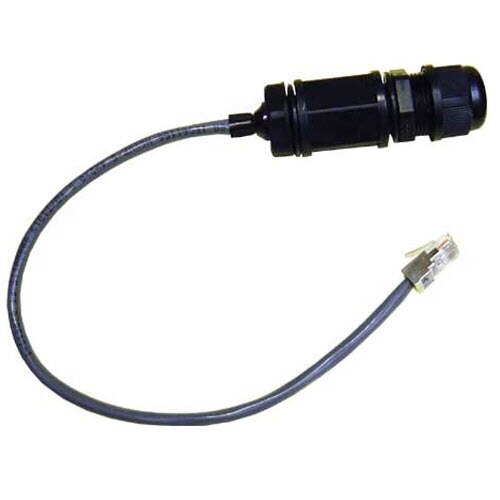

RJ45 Field Replaceable Ethernet Connector System. Passes RJ45 Plug and seals cable to IP68.
The Patented RJ45-ECS connector system exclusively from Pacific Wireless is a field replaceable outdoor rated and shielded Ethernet connection system for high speed 10BaseT, 100BaseT and 1000BaseT networks. The system features a shielded RJ45 Receptacle mounted in a UV protected housing and a mating cable gland which passes an RJ45 connector and seals the cable to IP67 requirements. The system provides for quick and easy disconnect and reconnect of equipment. Because of its many unique design features and low cost, the RJ45-ECS is a universal solution for many industries where a sealed and waterproof, yet removable, Ethernet connection is required. These include outdoor applications such as wireless equipment or video surveillance equipment and indoor applications such as equipment used in factory automation or harsh industrial processes.
RJ45 connectors are not designed for high reliability in the presence of moisture, dust or corrosive elements. For this reason, the IP67 sealing ability of the RJ45-ECS connector system provides a reliable connection, even in very harsh environments, for many years of trouble free service. The shielded nature of the Cat5e cable and connectors provide maximum shielding against external EMI for consistent data communications.
For modern wireless systems, the quick disconnect feature allows for ready replacement of rooftop equipment, to minimize field time spent servicing customer’s equipment, and minimizing downtime for the customer. This helps to increase operator profitability and customer satisfaction.
Specifications
Specifications
Data | 10BaseT, 100BaseT and 1000BaseT Networks CAT5e per TIA/EIA 568B ClassD per ISO/IEC 11801 |
Mechanical | Mating Cycles >500 Positive RJ45 bayonet coupling Cat5 Cable Strain Relief |
Material | UV Resistant Nylon 66 |
Sealing | IP67 |
Salt Spray | >1000h |
Flammability | UL94VO |
Thermal Shock | 10 cycles -40 to +100°C |
Temperature Range | -40°C to +85°C |
Installation Hole Dia | 0.787 in (20 mm) |
Overall Size (L x Dia) | 3.75 in x 1.18 in (95 x 30 mm) |
Weight | 2 oz (57 gm) |
