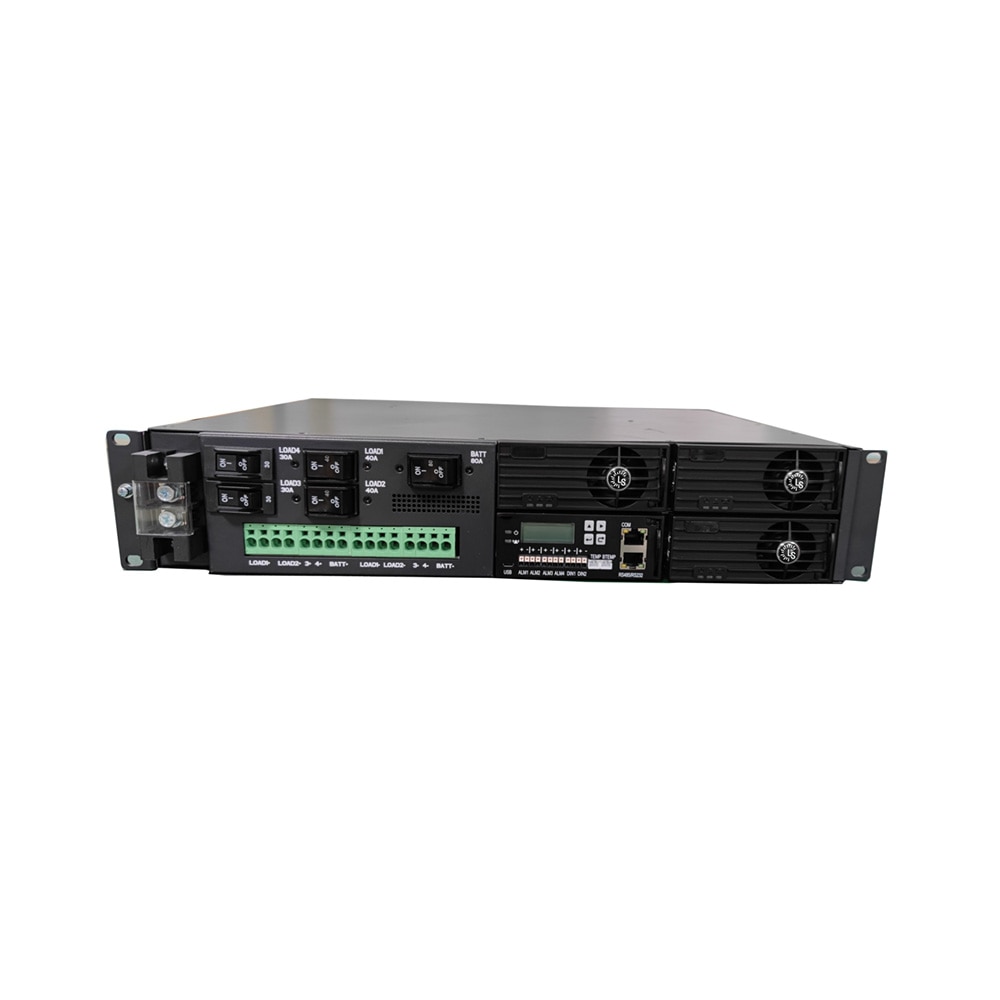

Lightsaber Optics 2U System 48V (3000W*3) Rectifier
- SKU: LSO-48150L-II
US$1,939.00
Product Information
Lightsaber Optics LSO-48150L-II
Lightsaber Optics 2U System 48V (3000W*3) Rectifier
SNMP MIB Download
LSO-48150L-II is an AC/DC embedded power system with excellent performance such as high power efficiency, intelligent battery management,remote management, wide range of AC input voltage, etc. The system can configure 3 pieces of 1U 3000W high rectifier modules.
Features:
- 1U rectifier: high density, high efficiency, excellent high temperature performance(full load @ 55°C)
- Wide operation temperature range of embedded power from -40°C to 70°C.
- Hot-swappable provide easy installation and maintenance.
- Standard installation structure design, adapt to various scenarios.
- Compact design(only 2U in height), saving space and installation cost.
- Excellent rectifier dormancy function helps increase system efficiency.
- Intelligent battery management and protection help to prolong battery lifespan.
- Support environmental signal monitoring and remote management through dry contact, serial interface or ethernet interface(options).
Application:
- Wireless base station.
- Transmission network.
- Communication network of enterprises.
Specifications
Specifications LSO-48150L-II
| Dimension | 440mm(W)×354mm(D)×88mm(H) 17.32" x 13.93" x 3.46" |
| Weight | ≤15kg (33.06 lbs) |
| Cooling mode | Natural cooling |
| Installation mode | Installed on 19-inch rack or inside the cabinet |
| Cabling mode | Front inlet and Front outlet |
| Maintenance mode | Front maintenance, support module grade change |
| Protection level | IP20 |
| AC Distribution | |
| Input mode | 110-220VAC single phase, range:85V ~ 290VAC 2P Acterminal |
| Output capacity | 1x10 A/ fuse |
| Input frequency | 45~66Hz, rated value: 50Hz/60Hz |
| SPD | 20kA/40kA, 8/20μs |
| DC Distribution | |
| Output voltage | -42~-58VDC, rated value: -53.5VDC |
| Maximum capacity | 9000W |
| Battery breakers | 1×80A/MCB |
| Load breakers | 2x30 A, 2x40A /MCB |
| Rectifier | |
| Input voltage | 85VAC～300VAC, rated 220VAC |
| Efficiency | R482000H1＞95%Peak, R482000E1＞92% |
| Rated power | 9000W(176~290VAC) |
| Working temperature | R482000H1 -40°C~+85°C(full load @ 55°C), R482000E1 -40°C~+80°C(full load @ 50°C), |
| Dimension | 70.3mm(W)×286mm(D)×42.5mm(H) |
| Weight | ≤1.3kg |
| Cooling mode | Forced cooling |
| Power factor | ≥0.99,（@230Vac，full load） |
| THD | ≤5%,（@230Vac，full load） |
| Inverter | |
| Input voltage | 44~ 60VDC; 40~ 44VDC (output power 900VA) |
| Efficiency | 0.91 |
| Rated power | 1250VA (44~ 60VDC;) |
| Working temperature | -40°C~+60°C |
| Dimension | 106mm(W)×287mm(D)×42.5mm(H) |
| Weight | ≤1.7kg |
| Controller | |
| Signal input | 1 Battery temp, 1 ambient temp, 1 smoke & 1 gate |
| Communication port | SNMP |
| Display mode | LCD |
| Environment | |
| Operating temperature | -40°C~+60°C |
| Storage temperature | -40°C~+70°C |
| Operating humidity | 5%~95%(non-condensing) |
| Altitudet | 0~2000m |
