Litelinx Terminal MST Box 12 Port with Drop Flat Cable Stub Length of 50F

Litelinx MST12-50F

Terminal MST Box 12 Port with Drop Flat Cable Stub Length of 50F

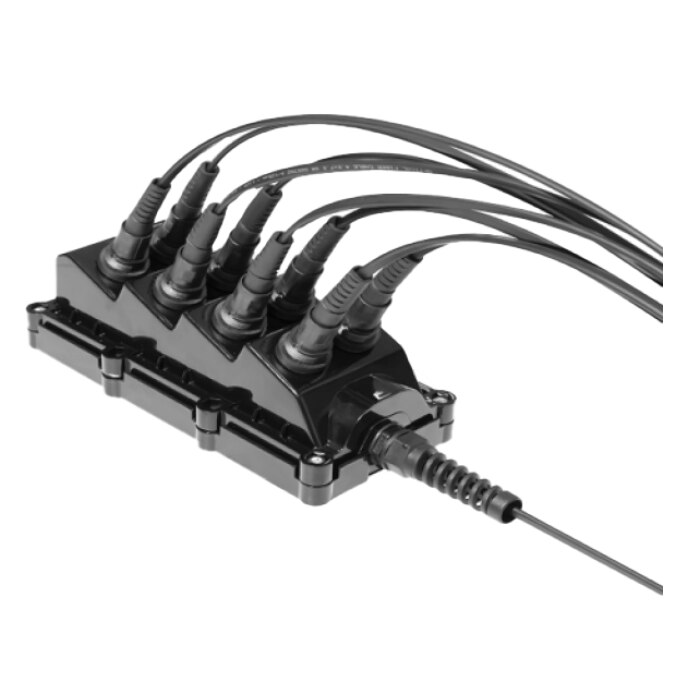

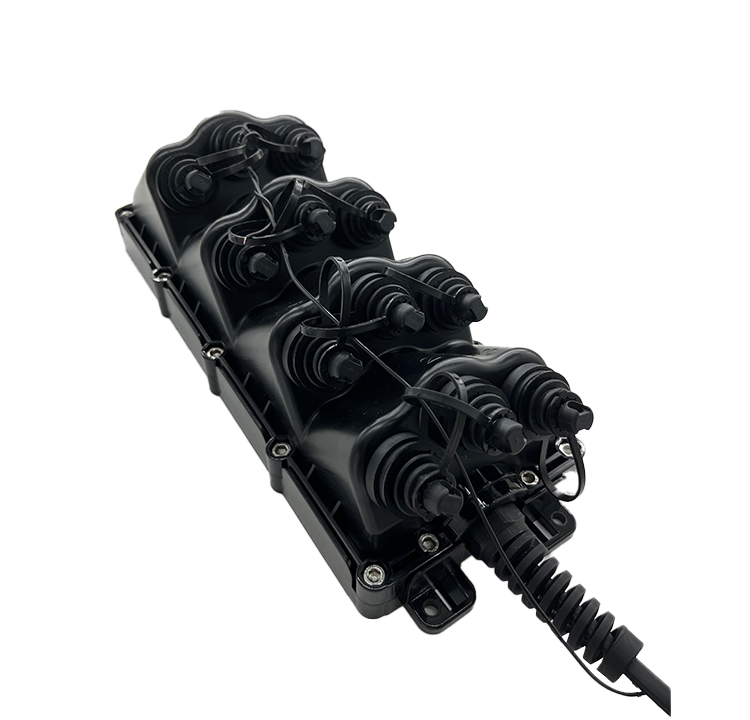

Hardened Multiport Service Terminal (MST) designed for rapid FTTH deployment with up to 12 ports. Features pre-terminated drop connectors, IP68-rated sealed housing, and multiple mounting options. No splicing required—just plug and go.

The LiteLinx MST (Multiport Service Terminal) is a pre-terminated, factory-sealed fiber distribution solution engineered to accelerate FTTH and FTTx deployment. With no splicing required, installers can reduce provisioning time by 15–30%—delivering fast, cost-effective service activation in even the most challenging environments.

Plug-and-play fiber distribution made easy.

This rugged IP68-rated terminal comes pre-configured with 4, 6, 8, or 12 hardened adapter ports, supporting both FlatDrop and Pushable Duct STUBBED round cable options. Its sealed design eliminates the need for on-site assembly while offering superior protection against dust, water, and environmental stress.

Ideal for ODN (Optical Distribution Network) applications, LiteLinx MST supports up to 1 km stub lengths, integrates splitter options, and accommodates a wide range of mounting configurations, including strand-mount, pedestal, pole, and below-grade handholes.

Designed for -40°C to +80°C operation, the terminal is built to withstand extreme weather while ensuring secure fiber alignment, efficient fusion protection, and long-term durability.

Features:

• Pre-terminated “plug-and-play” design – no field splicing needed
• Available in 4, 6, 8, or 12 hardened SC/APC port configurations
• IP68-rated, factory-sealed for outdoor and underground use
• Accepts FlatDrop and Pushable Duct STUBBED cables
• Compatible with splitters (1x2, 1x4, 1x8, etc.)
• Supports up to 24 fusion protection sleeves
• Stub cable length options up to 1 km
• Multiple mounting options: strand, pole, pedestal, handhole
• Operating temperature: –40°C to +80°C
