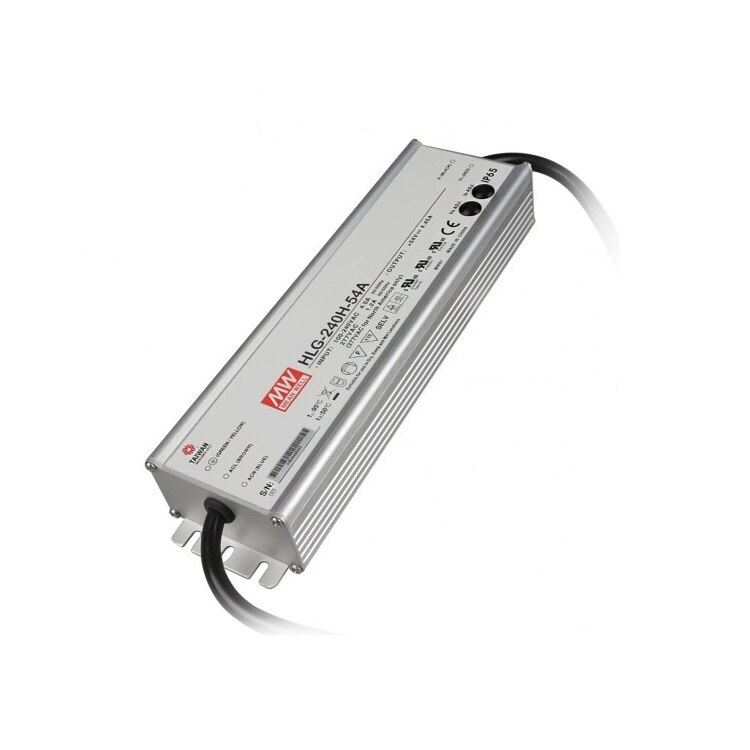

Mean Well 54V 4.45A 240W Single Output LED Switching Power Supply

(0) No Reviews yet
  • SKU: HLG-240H-54A
  • Manufacturer: Mean Well
  • Data Sheet: Download
  • Availability: 14 In Stock (updated live)
$72.25

Specifications HLG-240H-54A

EU RoHS Compliant
ECCN (US)EAR99
Part StatusActive
HTS8504.40.95.30
TypeConstant Current|Constant Voltage
Input/Output TypeAC/DC
Number of Outputs1
Output Voltage Range (VDC)27 to 54
Maximum Output Current (mA)4450
Output Power (W)240.3
Input Voltage Range127VDC to 431VDC|90VAC to 305VAC
Dimming1-10V/PWM
Power Factor Correction0.98(Min)
Efficiency (%)93.5(Typ)
Termination StyleLead Wire
IP RatingIP65
Warranty7Year
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)90
Product Weight (g)1300
Pin Count5
MountingScrew
Package Height38.8
Package Length244.2
Package Width68
PCB changed5
Lead ShapeLead Wire

Mean Well HLG-240H-54A

LED Power Supplies 240.3W 54V 4.45A 90-305VAC IP65 rated

HLG-240H series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constantcurrent output. HLG-240H operates from 90 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40 ~ +90 ℃ ℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.


Features:

  • Constant Voltage + Constant Current mode output
  • Metal housing with class designI
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer;3 in 1 dimming
  • Typical lifetime> 62000 hours
  • 7 years warranty

Applications:

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type “HL” for use in Class , Division 2Ihazardous (Classified) location
