MikroTik KNOT IoT Gateway BLE CAT-M/NB WiFi Bluetooth LAN GNSS

(0)No Reviews yet
US$‎193.03 US$‎199.00
  • SKU: RB924iR-2nD-BT5&BG77&R11e-LR9
12 in stock
College Station
12 In stock

Product Information

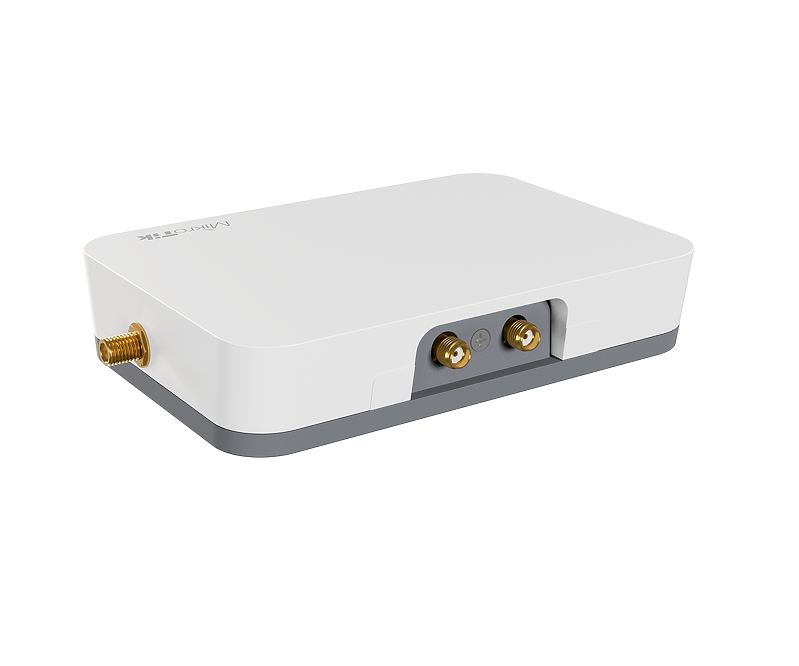

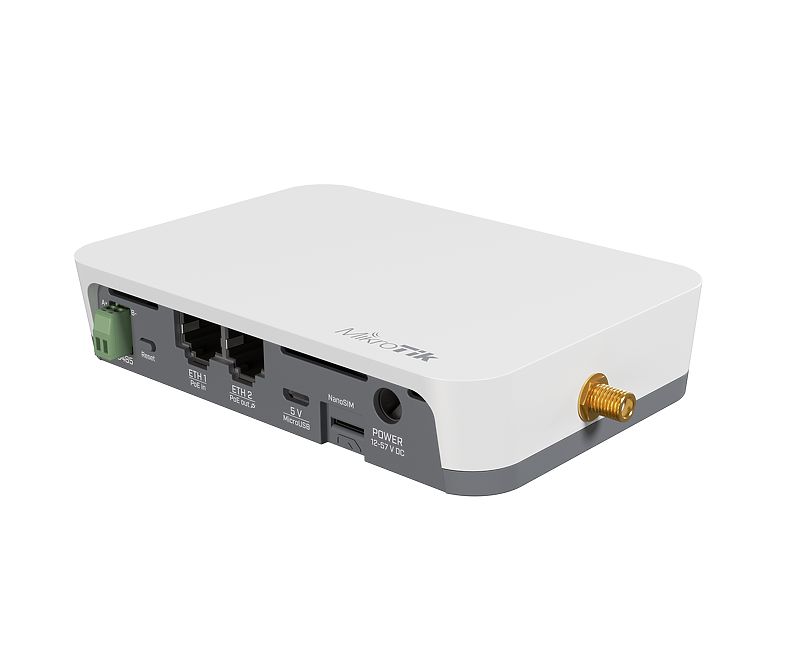

MikroTik RouterBOARD RB924iR-2nD-BT5&BG77&R11e-LR9

An out-of-the-box 902-928 MHz IoT Gateway solution for LoRa® technology. For ultimate versatility and cost-effectiveness

We all know the struggle of managing so many devices with different interfaces and communication protocols.. You keep adding new solutions to your setup to keep up, but the older devices are still too good to let them go. How do you integrate all of them in a single system that will serve you right? Easy – you “tie” them together by using the KNOT!

It doesn’t matter whether you have devices that are no longer in production, devices that came out this year, or even some custom solutions by your technician – the KNOT can handle them all!

KNOT LR9 kit is an out-of-the-box IoT Gateway solution for LoRa® technology. It uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers. With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point.

It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and moisture sensors with only a few megabytes per day!

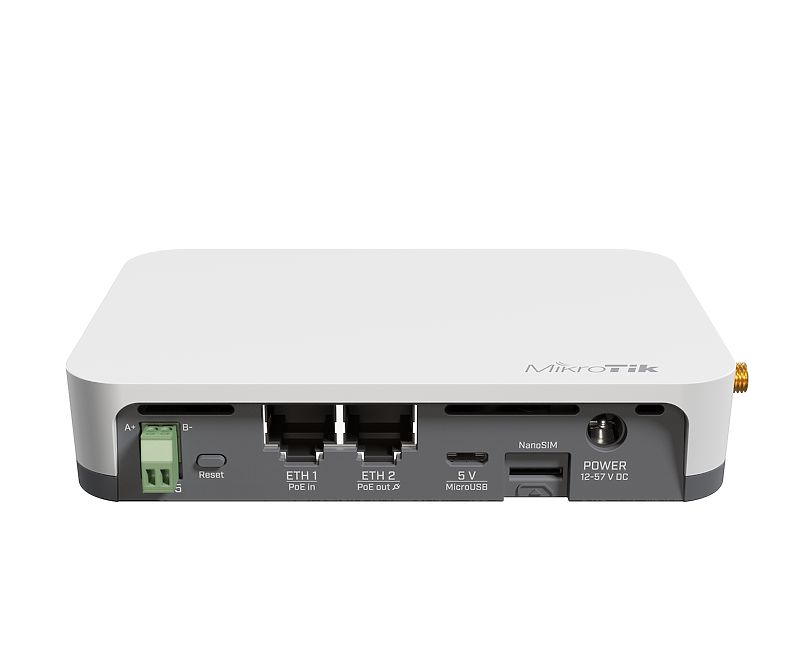

KNOT features so many protocol support and connectivity options: 2.4 GHz wireless, Bluetooth, LoRa®, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!

With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format. It has powerful filters for forwarding only relevant packets and ignoring others.

This kit can even help you in the most unusual situations. Remember the part about onboard GPIOs? Those pins can be used to read all kinds of analog sensors, interact with a single-board computer or other custom electronics – hobbyist kits, D.I.Y. robotics... It’s like getting the whole Swiss Army instead of a Swiss Army knife!

KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.

Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT!

Specifications

Specifications RB924iR-2nD-BT5&BG77&R11e-LR9

Dimensions (L x W x H)‎122 x 87 x 26 mm 4.80" x 3.42" x 1.02"
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
RouterOS license4
Operating SystemRouterOS
Size of RAM64 MB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C
Powering
MicroUSB input Voltage5-5 V
Number of DC inputs3 (PoE-IN, DC jack, MicroUSB)
DC jack input Voltage12-57 V
Max power consumption20 W
Max power consumption without attachments5 W
FAN countPassive
PoE in802.3af/at
PoE in input Voltage12-57 V
PoE-out
PoE-out portsEther2
PoE out802.3af/at
Wireless specifications
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz1.5
Wireless 2.4 GHz chip modelQCA9531
Wireless 2.4 GHz generationWi-Fi4
Ethernet
10/100 Ethernet ports2
Peripherals
Number of SIM slots1 Modem (Nano SIM)
MiniPCI-e slots1
Serial console portRS485
Number of USB ports1
USB slot typemicroUSB type AB
Max USB current (A)1
Other
PCB temperature monitorYes
Voltage MonitorYes
Bluetooth version5.2
Bluetooth RF connector typeuUFL
Certification & Approvals
CertificationCE, FCC, IC, EAC, ROHS

Wireless specifications
2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s22-96
11MBit/s22-89
6MBit/s20-93
54MBit/s18-74
MCS020-93
MCS716-71
