MikroTik RouterBOARD RB953GS-5HnT
- SKU: RB953GS-5HnT
US$131.11
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
MikroTik RouterBoard RB953GS-5HnT

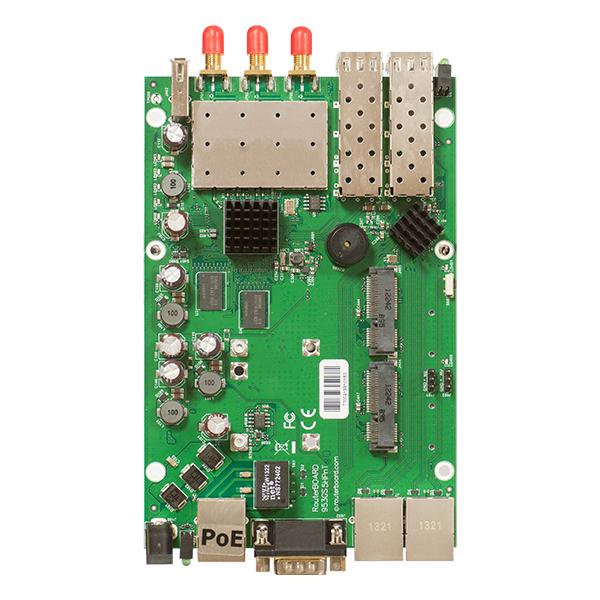

RouterBOARD 953GS-5HnT is our first product with 5GHz 3x3 MIMO Triple Chain support. It has powerful (up to 1600mW!) Atheros QCA9558 802.11a/n wireless chip with three SMA connectors (not compatible with Flex-guide cable) onboard.
RB953GS-5HnT is equipped with new Scorpion 720Mhz CPU, 128MB RAM and three Gigabit Ethernet ports, to take advantage of high-speed 3x3 MIMO wireless. Moreover, it comes with two SFP cages to accommodate FTTH requirements.

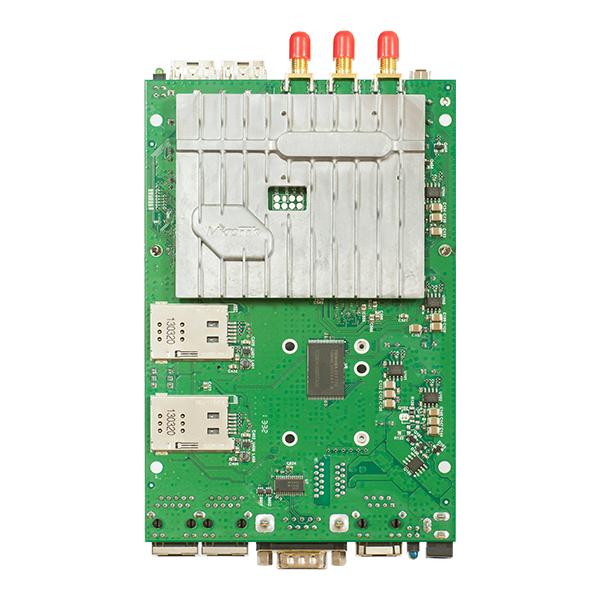

Handy additions are two miniPCI-express slots and two SIM slots, for multiple 3G/4G connections or wireless expansion.
Unit comes with preinstalled RouterOS Level5 license.
Specifications
Specifications RB953GS-5HnT
| CPU nominal frequency | 720 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100/1000 Ethernet ports | 3 |
| MiniPCI-e slots | 2 |
| Wireless chip model | QCA9558 |
| Wireless standards | 802.11a/n |
| Number of USB ports | 1 |
| Power Jack | 1 |
| Supported input voltage | 8 V - 30 V |
| PoE in | Yes |
| Dimensions | 183x105x24mm |
| Operating System | RouterOS |
| License level | 5 |
| CPU | QCA9558 |
| Max Power consumption | 25W |
| SFP ports | 2 |
| USB slot type | USB type A |
| Storage size | 128 MB |
| Storage type | NAND |
