  • MikroTik 902-928 MHz 23 dBm LoRaWAN concentrator Gateway card mini PCIe

MikroTik 902-928 MHz 23 dBm LoRaWAN concentrator Gateway card mini PCIe

  • SKU: R11e-LR9
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Availability: 91 In Stock    (updated live)
$‎89.00

Specifications R11e-LR9

Product code R11e-LR9
Max power consumption2 W
Interface Mini-PCIe
Supported class A and C
Frequency 902-928 MHz (AU915-928, US902-928, AS923, KR920-923)
RF Output power 902-928 MHz 23 dBm
Receive max sensitivity -137 dB @ SF12
Range Up to 15 km in rural environment and up to 2 km in urban environment when using MikroTik LoRa 6.5 dBi antenna kit
Operating ambient temperature -40 to 70°C

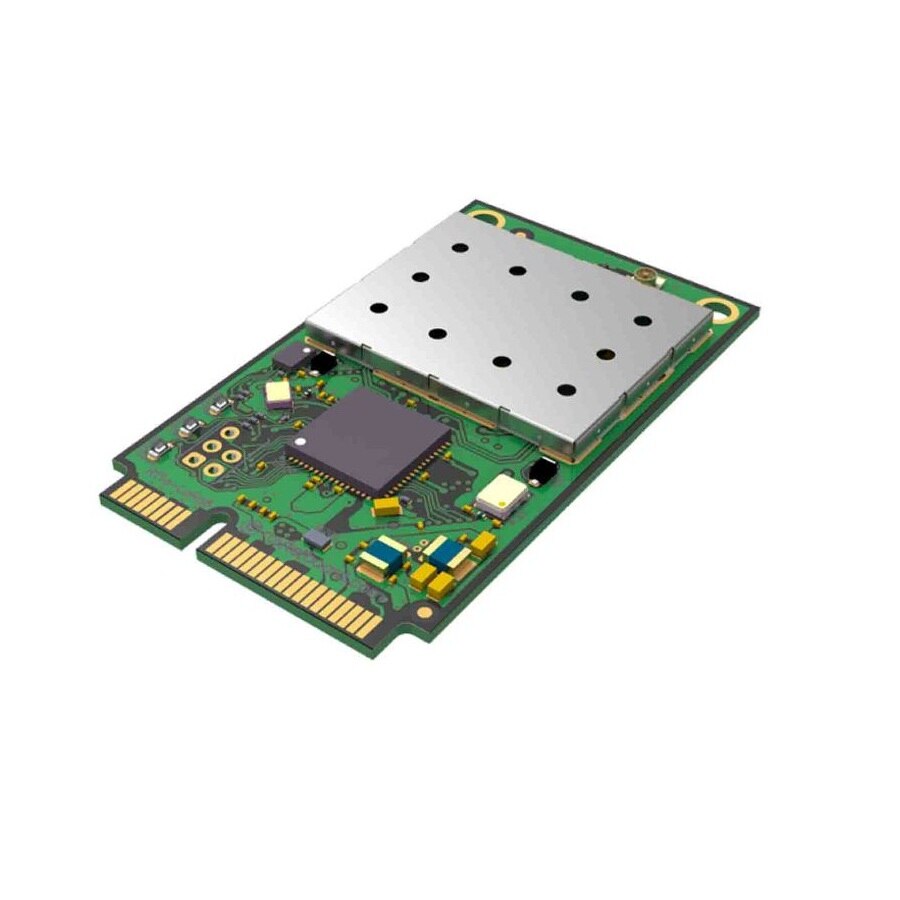

MikroTik RouterBOARD R11e-LR9

LoRaWAN concentrator Gateway card mini PCIe

MikroTik is bringing you new, powerful products for LoRa® for the fraction of the cost you would expect.

R11e-LoRa9 is a new concentrator Gateway card for LoRa® technology in mini PCIe form factor based on Semtech SX1301 chipset. It enables LoRa® connectivity for any MikroTik product that has mPCIe slot with connected USB lines.

With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point.

Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)
