Mikrotik 300MHz CPU, 32MB RAM, 1xEthernet, miniPCI, USB, RouterOS L4
Product Information

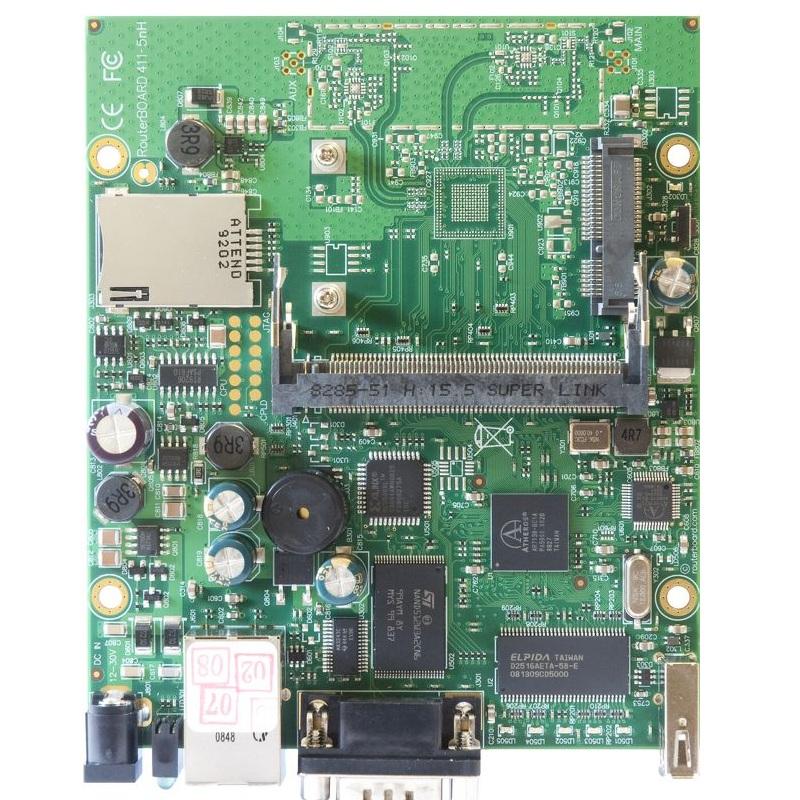

MikroTik RouterBOARD RB411U Small scale CPE
This product is End of Life. Suggested replacement: RBM11G
The RB411U is a versatile yet very small device. It includes all - a miniPCI slot (for 802.11 wireless cards), a USB 2.0 port and a miniPCIe slot for connecting a 3G card (does not support 802.11 wireless cards). A SIM card slot for 3G is also present on the RB411U.
RB411U includes RouterOS - the operating system, which can be a router, firewall, bandwidth manager, a mobile 3G router, and more - all at the same time.
You can use the USB port to attach a secondary storage device, or a USB 3G modem. The RB411U mounting holes are in the same location as other RB411 models, so you can easily mount it into any supported outdoor case/antenna.
Features:
- CPU Atheros AR7161 300MHz network processor
- Memory 32MB DDR SDRAM onboard memory
- Boot loader RouterBOOT
- Data storage 64MB onboard NAND memory chip
- Ethernet One 10/100 Mbit/s Fast Ethernet port with AutoMDI/X
- miniPCI One MiniPCI Type IIIA/IIIB slot
- One MiniPCIe slot for 3G modem (onboard SIM connector)
- Wireless not built in, possible by adding a miniPCI card
- Expansion USB 2.0 with 5V 1A supply
- Extras Reset switch, Beeper, Input voltage monitor
- Serial port One DB9 RS232C asynchronous serial port
- LEDs Power, NAND activity, 5 user LEDs
- Power options Power over Ethernet: 10..28V DC (except power over datalines). Power jack: 10..28V DC
- Dimensions 12.5 cm x 10.5 cm, Weight: 104g
- Power consumption 3-12W
- Operating System MikroTik RouterOS v3, Level4 license
Specifications
Specifications RB411U
| Architecture | MIPSBE |
| CPU | AR7161 |
| CPU core count | 1 |
| CPU nominal frequency | 300 MHz |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 32 MB |
| Storage size | 64 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C .. +70°C tested |
| Max Power consumption | 12W |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-28 V |
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI slots | 1 |
| MiniPCI-e slots | 1 |
| Serial port | RS232 |
| Number of USB ports | 1 |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| 10/100 Ethernet ports | 1 |
