MikroTik LHG 4G kit 21dBi, 64MB RAM, 650MHz CPU

Tariff Fee: $8.85
  • SKU: RBLHGR&R11e-4G
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Quick Guide: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!

Accessories (click to select)

Specifications RBLHGR&R11e-4G

CPU QCA9531 650 MHz
Size of RAM 64 MB
Storage 16 MB Flash
10/100 Ethernet ports 1
LTE antenna gain21 dBi
Antenna beam width 25°
LTE category 4 (150Mbps Downlink, 50Mbps Uplink)
SIM slot 1 (Mini SIM)
PoE in Yes
Supported input voltage12 - 57 V (Passive PoE, 802.3af/at)
Dimensions 391 x 391 x 227 mm
Operating temperature -40°C .. +60°C tested
License level 3
Operating System RouterOS
Max Power consumption 6 W
Supported bandsRBLHGR&R11e-4G
LTE (FDD) bands 3/7/20/31 (1800/2600/800/450)
LTE (TDD) bands 41n/42/43 (2500/3500/3700)
These devices typically work fine on AT&T and T-Mobile. They are not certified on any US carrier and Verizon may not allow them on their network. The buyer and user assume all risks for using them on carrier networks including the possibility you may not get them to work or that the carrier may decide to ban the use of the device on their network without recourse.

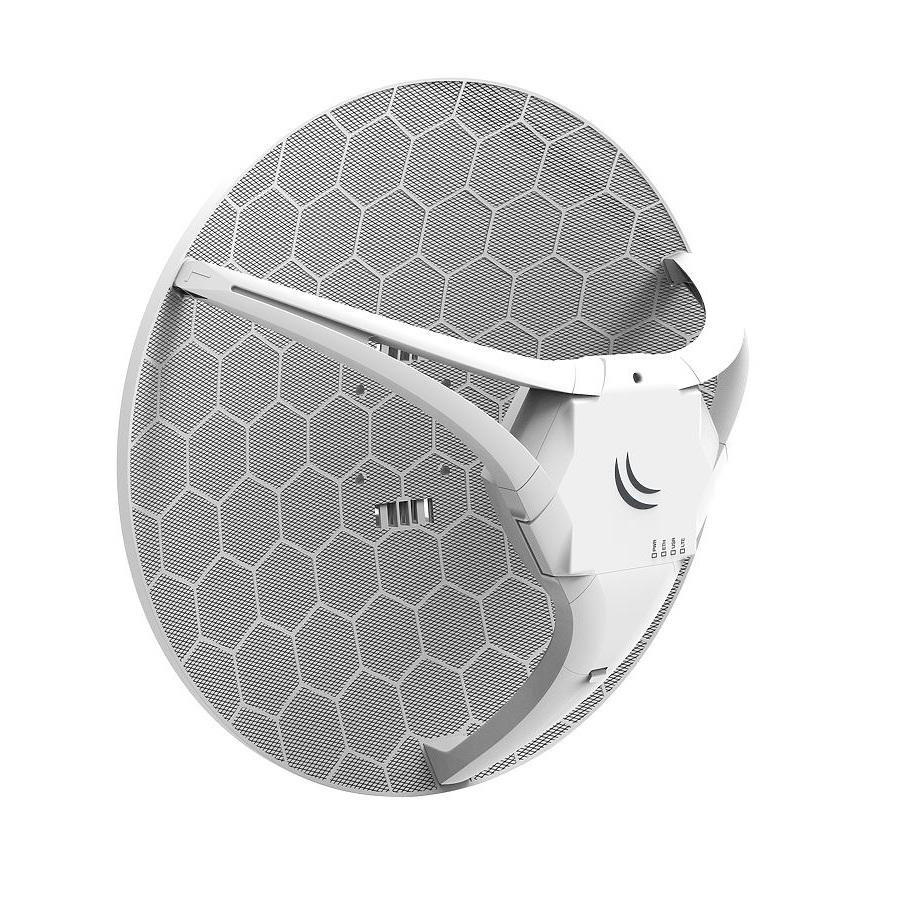

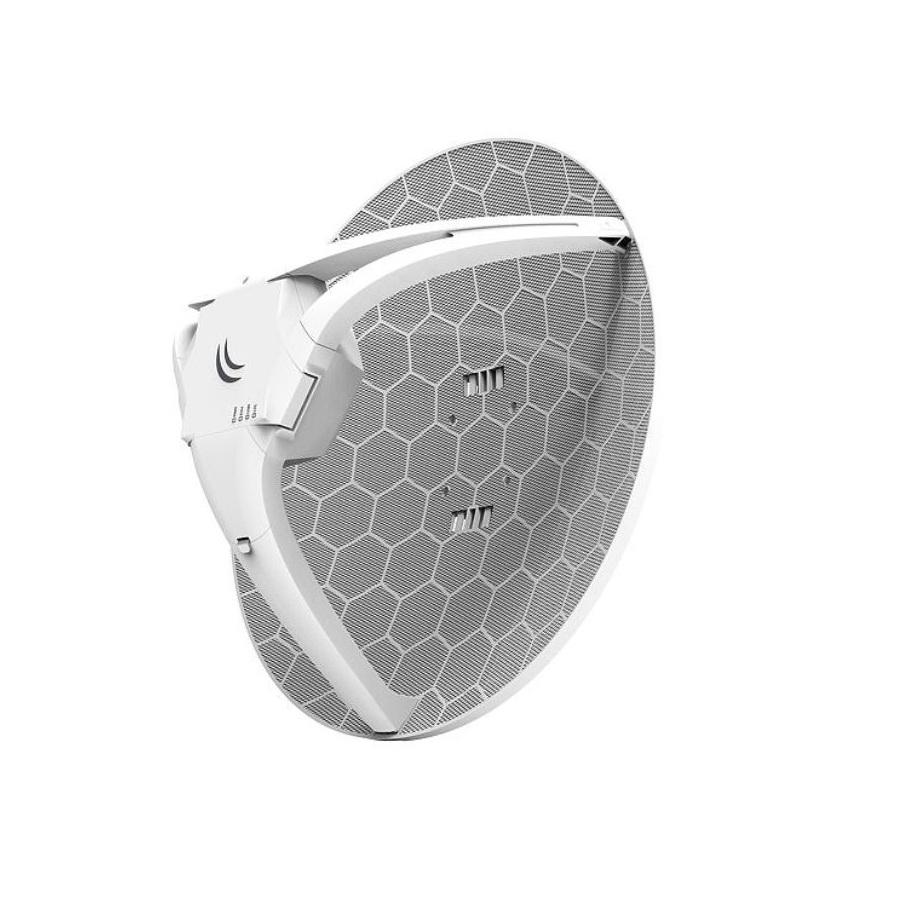

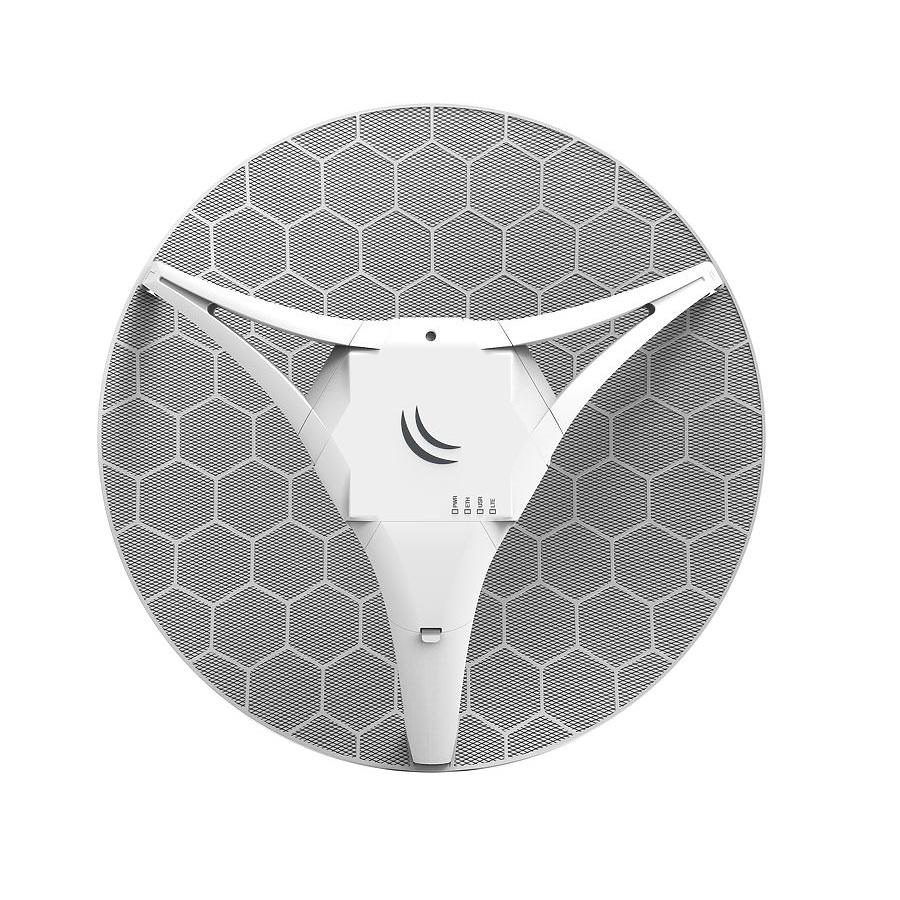

MikroTik RouterBOARD RBLHGR&R11e-4G

LHG 4G kit 21dBi, 64MB RAM, QCA9531 650 MHz CPU, RouterOS L3

LHG 4G kit (RBLHGR&R11e-4G) includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).

The LHG LTE kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.
