MikroTik RouterBOARD RBcAPGi-5acD2nD-XL

  • SKU: RBcAPGi-5acD2nD-XL
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
US$‎99.00

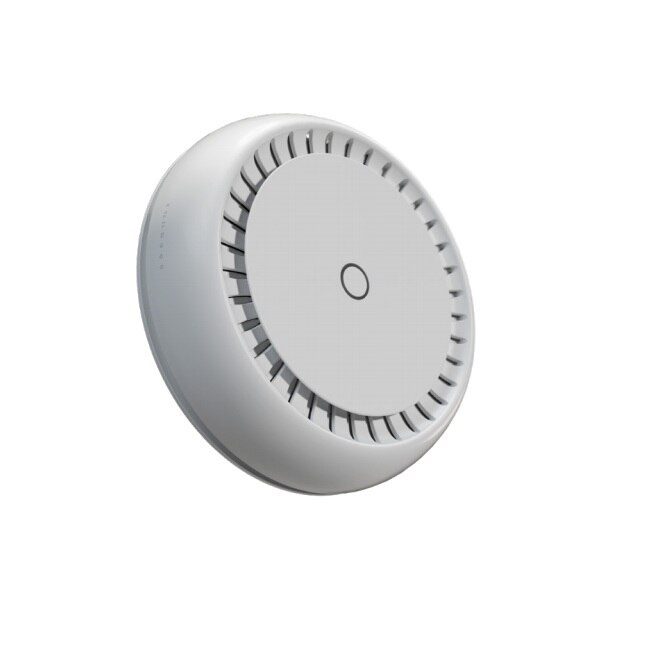

MikroTik RouterBOARD RBcAPGi-5acD2nD-XL

2.4 GHz 128 MB RAM Quad core IPQ-4018 710 MHz cAP XL ac Dual Band Wall/Ceiling AP RouterOS L4

Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.

The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!

The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/ at PoE input on the first port and passive PoE output (up to 57V) on the second port.

Specifications RBcAPGi-5acD2nD-XL

CPUQuad core IPQ-4018 710 MHz
Size of RAM128 MB
RAM typeDDR3L
Storage16 MB, Flash
Number of 1G Ethernet ports2
Wireless2.4 GHz, 5 GHz
Supported protocol802.11b/g/n, 802.11a/n/ac
Antenna gain6 dBi, 5,5 dBi
Number of chains2
Operating systemRouterOS (License level 4)
Switch chip modelIPQ-4018
Dimensions191 x 42 mm
Operating temperature-40°C to +70°C tested
Powering
PoE-in802.3af/at
PoE-outPassive PoE up to 57V
Smart PoEInjector
Number of DC inputs1
PoE-out portsEther2
Supported input voltage17-57 V
Power adapter nominal voltage24 V
Power adapter nominal current1.2 A
Max power consumption (without attachments)11 W
Max power consumption24 W
Certification & Approvals
CertificationCE, FCC, IC

Wireless specifications
Rate (2.4 GHz)Tx (dBm)Receive Sensitivity
1MBit/s26-100
11MBit/s26-94
6MBit/s26-96
54MBit/s23-78
MCS026-96
MCS722-73
Rate (5 GHz)Tx (dBm)Receive Sensitivity
6MBit/s26-96
54MBit/s21-80
MCS026-96
MCS720-75
MCS918-70
