NetPoint Directional Antenna for tropical areas with 30dBi gain 4.9 - 6.2 GHz Marine Environment
- SKU: NPTR5-DP-2FT
$388.00
- Manufacturer: NetPoint
- Data Sheet: Download
Product Information
NetPoint NPTR5-DP-2FT
Directional Antenna for tropical areas with 30dBi gain 4.9 - 6.2 GHz Marine Environment

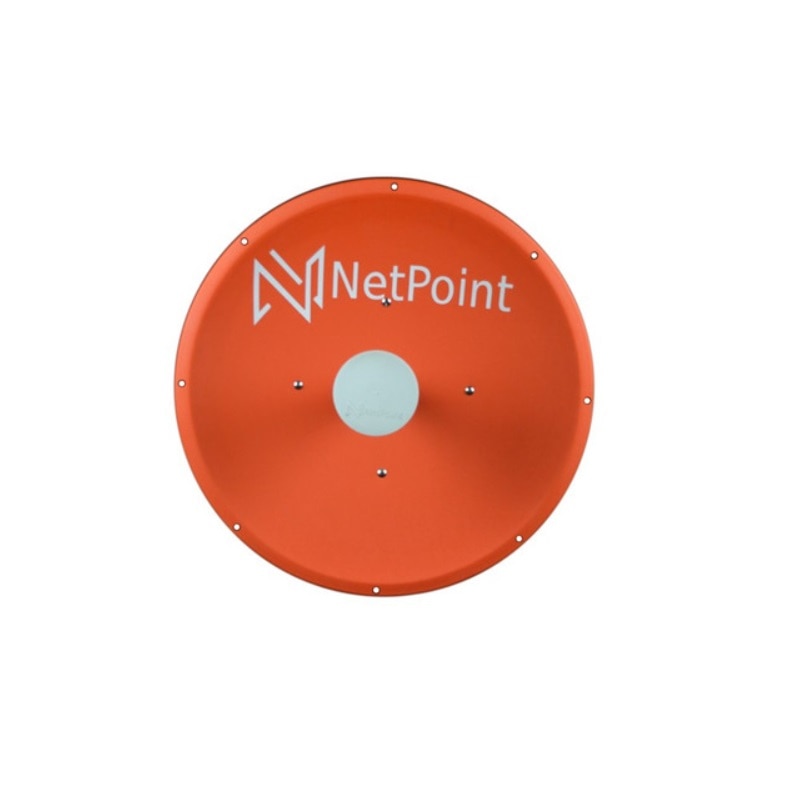

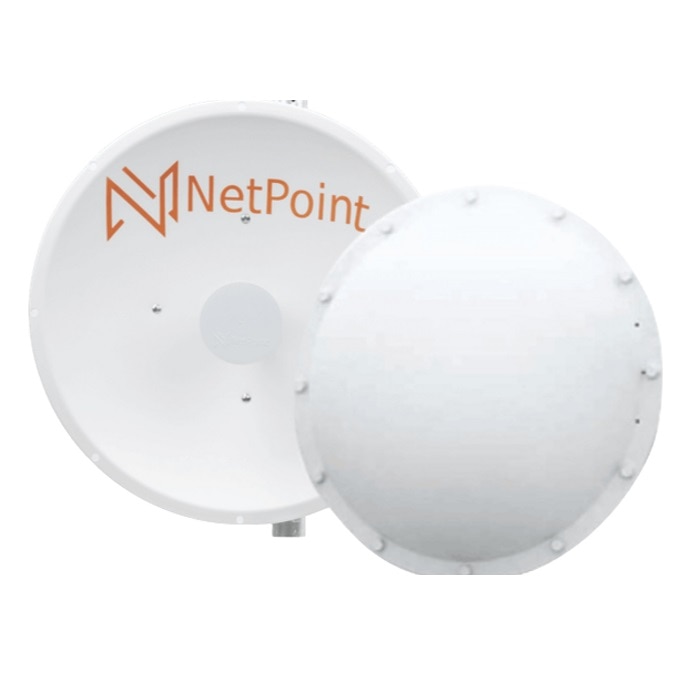

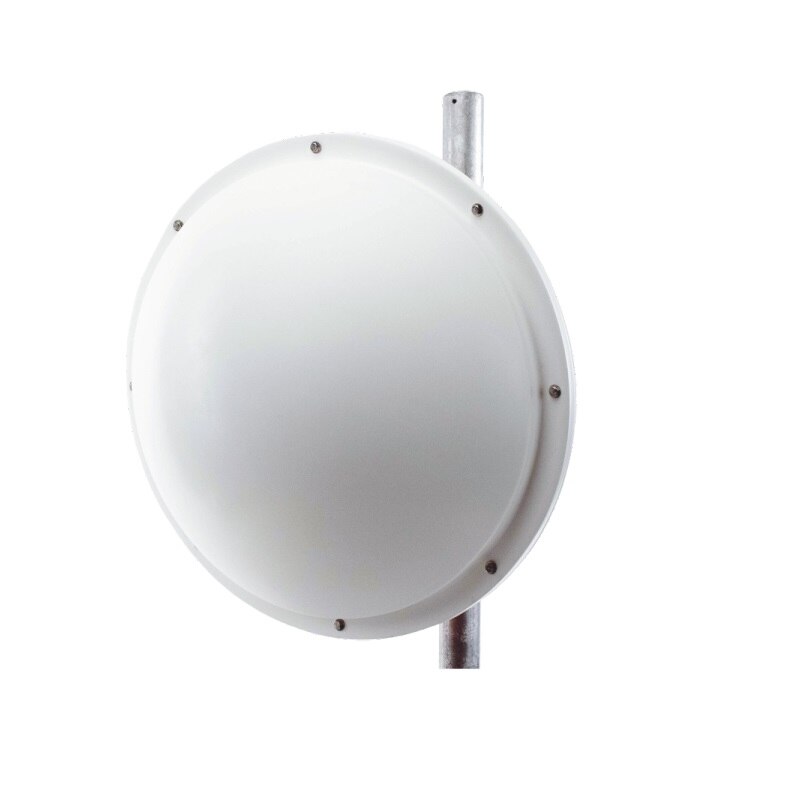

NetPoint's NPTR5-DP high-performance parabolic antenna is designed to work with very high performance in both licensed and unlicensed bands with excellent gain. The NPTR5-SDP model has dual polarization and an N-female connector, as well as exceptional VSRW performance in the 4.9 to 6.4 GHz operating band. The antenna comes with galvanized materials and alloys, has an integrated radome for high wind protection, and reliable operation in the most demanding conditions. This parabolic antenna has a size of 2ft and can be used for PTP backhaul or in maritime environments.
Features:
- Gain of up to 30 dBi with low VSWR and high port isolation across the entire 4.9-6.4 GHz band.
- One antenna that covers 5 and 6 Ghz.
- Reduced interference with 38 dB minimum front to back.
- Simplifies installation on site and guarantees “factory-tested” quality.
- Connector type N Female.
Specifications
Specifications NPTR5-DP-2FT
| Dimensions (L x W x H) | 28.34 x 28.34 x 11.41in (72cm X 72cm X 29cm) |
| Weight (Kg) | 14.3lb (6.5kg) |
| Eletrical | |
| Antenna type | Directional parabolic reflector |
| Frequency | 4.9 - 6.4 Ghz |
| Connector type | Female N |
| Gain (dBi) | 28, 30, 29 - 4.9GHz, 5.4GHz and 5.7GHz |
| VSWR HPOL | <1.5 |
| Beamwidth VPOL | 6.0° |
| Beamwidth HPOL | 6.2° |
| Return loss | 11 |
| ISO (dB) | 30 |
| Radius F/B (dB) | 38 |
| Polarization | Dual slant 45° or 90° |
| Mechanical | |
| Wind max survival speed (MPH) | 124.2 miles with Radome |

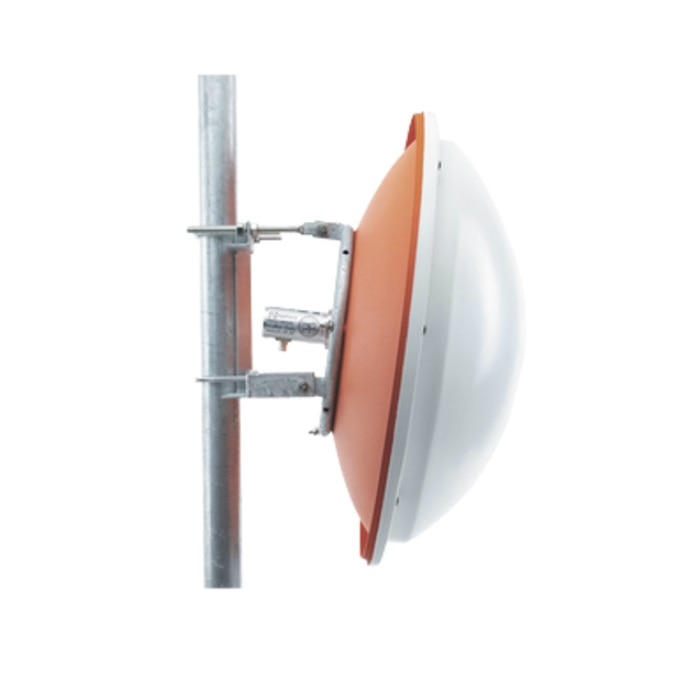

| Azimuth adjustment | +/- 60 degrees |
| Elevation adjustment (°) | +/- 15 degrees |
| Mounting Pipe Diameter, Min | 1 inch - 25.4mm |
| Mounting Pipe Diameter, Max | 2.750 inch 69.86mm |
| Operating temperature (C°) | -49 to +140 F° | -45 to +60 C° |
| Connector type | Dual N-Female with pigtails for RP-SMA |
| Lenght of Pig tail | 2ft - 600 mm |
