PPC Broadband QuikPush Cable Assembly, 1F, 900um G657A2, 3mm, BLK, Balistix SC/APC to Standard SC/APC, 25FT
- SKU: QP13PBB92B5S5025F
- Manufacturer: PPC Broadband
- Data Sheet: Download
Product Information
PPC Broadband QP13PBB92B5S5025F
QuikPush Cable Assembly, 1F, 900um G657A2, 3mm, BLK, Balistix SC/APC to Standard SC/APC, 25FT
QuikPush® cable assemblies offer a flexible, pushable pre-terminated fiber optic drop solution for fast and reliable FTTX deployments. At just 3 mm outer diameter, the Miniflex® drop cable is also one of the smallest cables in the industry. Manufactured using the patented Miniflex® grooving process and utilizing the Balistix pushable connector technology, QuikPush has a number of advantages over alternative last-drop solutions.

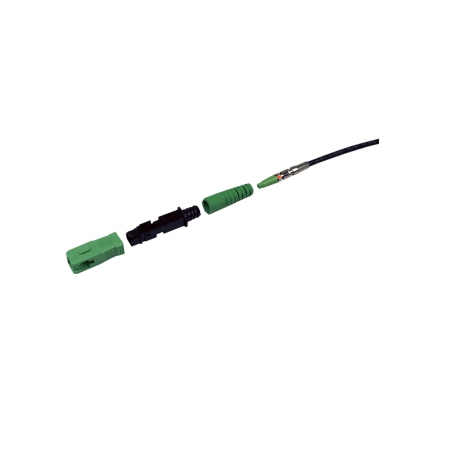

The Balistix pushable connector enables the pre-connectorized QuikPush cable to be installed through microducts and small holes that are typical of most FTTX scenarios. QuikPush can be installed without using large conduits or drilling big holes through the customer’s wall. At the other end of the drop cable, the connector options are unlimited; including SC, LC, FC, Balistix LC & SC and even no connector.
QuikPush can be successfully pushed through 5 mm (0.2 in) holes and microduct bores as small as 3.5 mm (9/64 in). Hand push distances vary according to bend frequency and duct quality; e.g. QuikPush combined with PPC microduct exceeds 100 m (328 ft) in a route with 8 x 90° bends. With air assistance, the route can be extended to 12x bends and up to 1 km (3,280 ft). The rugged nature of the Miniflex® cable, in tandem with the pre-terminated connector, reduces the cost of fiber deployments as well as the intrinsic skill and difficulty of handling and connecting customer drop cables.
Features:
- ITU-T: G657A1 & A2
- UL Riser rated and CPR certified
- Complies with IEC 60794-1-2
- REACH & RoHS compliant
- Pre-terminated – so no field splicing/mechanical termination
- Guaranteed Insertion loss/return loss with certification
- Installs inside microducts with bores as small as 5.5 mm (9/64 in) I.D.
- Industry-standard SC Balistix™ connector (LC also available)
- Single-mode UPC, APC or multi-mode options
- Features Miniflex® bend limiting technology
- Ultra light-weight
- High crush resistance
- Low friction outer sheath
- Inherent kink resistance
- Small round concentric design
Specifications
Specifications QP13PBB92B5S5025F
| Weight | 0.19 lbs |
| Dimensions (HxWxL) | 12" x 12" x 0.5" D |
| Specification | G657 A2 |
| Attenuation (850 / 1300 nm) | n/a |
| Attenuation (1310 / 1550 nm) | 0.4/0.3 dB/km |
| Attenuation at 1383nm | n/a |
| Attenuation at 1625 nm | < 0.24 dB/km |
| Refractive Index at 1310nm, 1550nm | 1.467, 1.468 |
| Refractive Index at 850nm, 1300nm | n/a |
| Proof test | 0.69 GPa (100 kpsi), 1% min. |
| Cladding diameter | 125 ± 0.7 μm |
| Coated diameter | 235μm to 245μm |
| Core/Cladding concentricity error | ≤ 0.5 μm |
| Coating concentricity error | ≤ 12μm |
| Macro bend loss | (1550 nm) |
| 10 turns at 50mm diameter | n/a |
| 10 turns at 15 mm diameter | ≤ 0.03 dB |
| 1 turn at 10mm diameter | ≤ 0.10 dB |
| 1 turn at 7.5mm diameter | ≤ 0.50 dB |
