Perfect Vision Coax RG6 Solid Copper, Single, CCS Ground-1000 Ft DTV - Black
- SKU: CB4B06DSCR0-05
US$126.85
- Manufacturer: Perfect Vision
- Data Sheet: Download
Product Information
Perfect Vision CB4B06DSCR0-05
Coax RG6 Solid Copper, Single, CCS Ground-1000 Ft DTV - Black

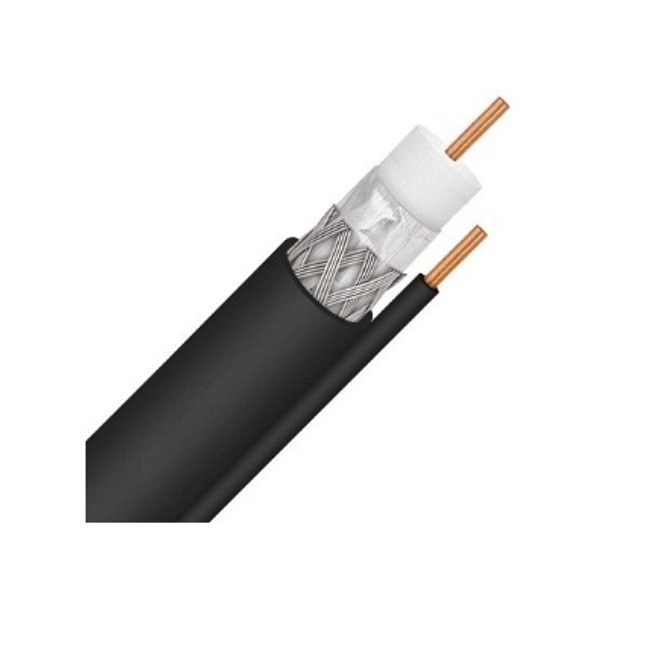

This black, single, RG-6 coax cable is UL Listed, has a solid copper center conductor, SBCA compliant, includes a copper clad steel grounding wire and comes in an easy to use 1000’ pull box with internal rolling reel. It is swept tested to 3 GHz, 60% aluminum braiding, 100% shielded, PVC jacket and foamed polyethylene.
Features:
- UL Approved RG-6 coax cable
- PVC Jacket and foamed polyethylene
- UL-Listed Solid Copper conductor
- Foot markings on cable for easy length cuts
- Black in color, solid copper grounding wire alone side of RG6 conductor cable
- 1,000 total feet in length, easy to use pull box with internal rolling reel
- SBCA Compliant coax cable - DIRECTV Approved
Specifications
Specifications CB4B06DSCR0-05
Coax Type | RG6 with Ground |
Packaging | RIB |
Shipping Weight | 20.0 kg G.W. 44 lb |
Applications | Indoor and Outdoor Use |
Operating Temperature | -40° C through +75 C |
Materials | |
(a) Jacket | Nominal OD: 6.86 ± 0.15mm |
Material | PVC |
Color | Black, White |
(b) Braids | Material: Aluminum Magnesium Alloy |
Braid Wire Count | 80 |
Braid Coverage | 60% |
(c) Foil Shield | Material: Aluminum Foil |
Adhesive | EAA |
Foil Shield Coverage | 100% (18% overlap minimum) |
(d) Dielectric | Material: Gas Injected Foam PE |
Nominal OD | 4.57mm ± 0.10mm |
(e) Conductor | Material: Solid Copper |
Nominal OD | 1.02mm ± 0.01mm (18 ga) |
(f) Ground | Material: Copper-Clad Steel |
Nominal OD | 1.15 ± 0.01 mm (17 ga) |
Electrical | |
Impedance | 75 Ohms ± 3 Ohms |
Capacitance | 16.2 PF/ft ± 1.0 PF/ft |
Velocity of Propagation | 83% |
Nominal Delay | 1.22 NS/ft |
Conductor DC Resistance | 22 Ohms / Km |
Shield DC Resistance | 43 Ohms / Km |
Swept Tested | 5 MHZ~3000 MHz |
UL | CATV / CM |
Footage markers | Every 2 ft |
