CAT6, Outdoor, F/UTP, Dry Gel Tape, Black PE, 1000' R1K

(0)No Reviews yet
  • SKU: PVCAT6NFDT-BLK-R1K
US$‎241.53 US$‎264.99
  • Manufacturer: Perfect Vision
  • Data Sheet: Download
2 in stock
College Station
2 In stock

Product Information

Perfect Vision PVCAT6NFDT-BLK-R1K

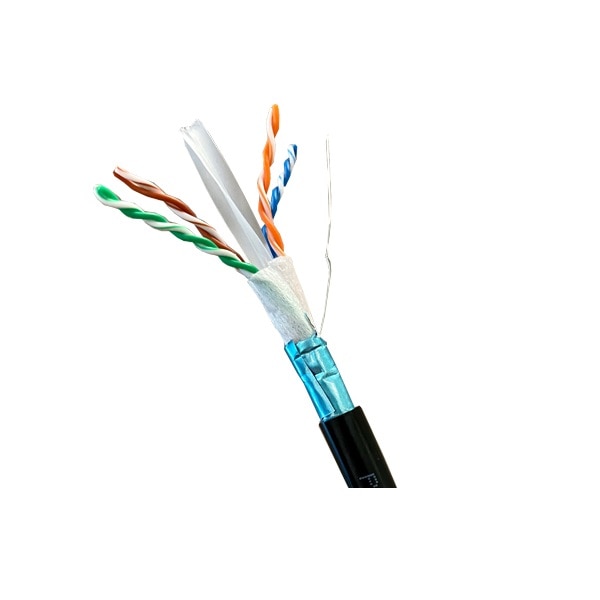

CAT6, Outdoor, F/UTP, Dry Gel Tape, Black PE, 1000' R1K

This category 6 shielded cable with water blocking tape is suitable for outdoor applications for both home and commercial WISP installations. Burial is not recommended, instead use our PVCAT6B.

Specifications

Specifications PVCAT6NFDT-BLK-R1K

Impedance 1 MHz to 100 MHz100 Ω ± 15 Ω
Nominal Mutual Capacitance @ 1 KHz≤ 5.6nF /100 m
Maximum Capacitance Unbalance330 pF/100 m
Nominal Velocity of Propagation70%
Maximum Delay (ns/100 m) @ 100 MHz538 ns
Maximum Delay Skew≤ 45 ns/100 m
Maximum DCR Unbalance @ 20 °C≤ 5%
Maximum Conductor DC Resistance @ 20 °C9.38 Ω/100 m
Number of Pairs4
Total Number of Conductors8
AWG23 (0.57 mm)
Conductor StrandingSolid
Conductor MaterialBare copper
Insulation MaterialHDPE
Outer Jacket OD8 mm (.31 in)
Outer Jacket MaterialLDPE UV Rated
Outer Jacket RipcordYes
Shipping Weight39.6 lb (18.0 Kg)
Max Recommended Pulling Tension35 lb (16 kg)
Min Bend Radius (Install)-40 °C to + 75 °C
Sequential Marking0 ft to 1000 ft (0 m to 305 m)
Reference StandardISO/IEC 11801, ANSI/TIA-568.2-D
Packaging Options1000
UL/CSA/ETLNone
Wall Blocking MaterialDry Gel Swellable Tape
Shield TapeAluminum Tape
Drain Wire26 AWG Solid TC
