Poynting Generic Phone-to-Antenna Adaptor (SMA f)

(0)No Reviews yet
  • SKU: AT-ADPT-024
  • Manufacturer: Poynting
  • Data Sheet: Download
32 in stock
College Station
34 In stock

Product Information

Poynting AT-ADPT-024

Poynting Generic Phone-to-Antenna Adaptor (SMA f)

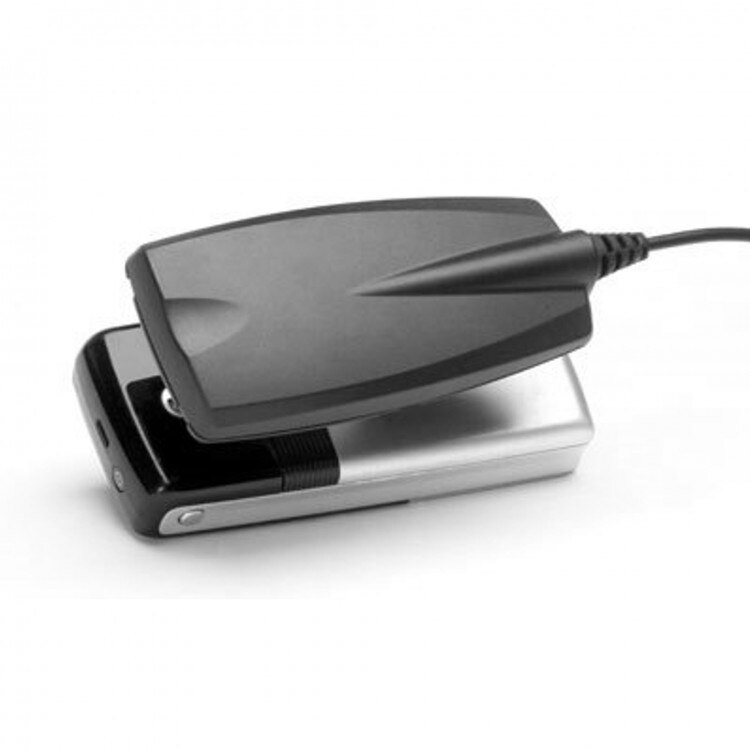

The adaptor consists of a flat plastic pad with a 50 cm cable that terminates in a SMA (female) connector. The plastic sleeve, that looks similar to a cell phone battery, encloses a device that is able to couple to a cell phone and divert it to a booster antenna thereby ensuring better reception.

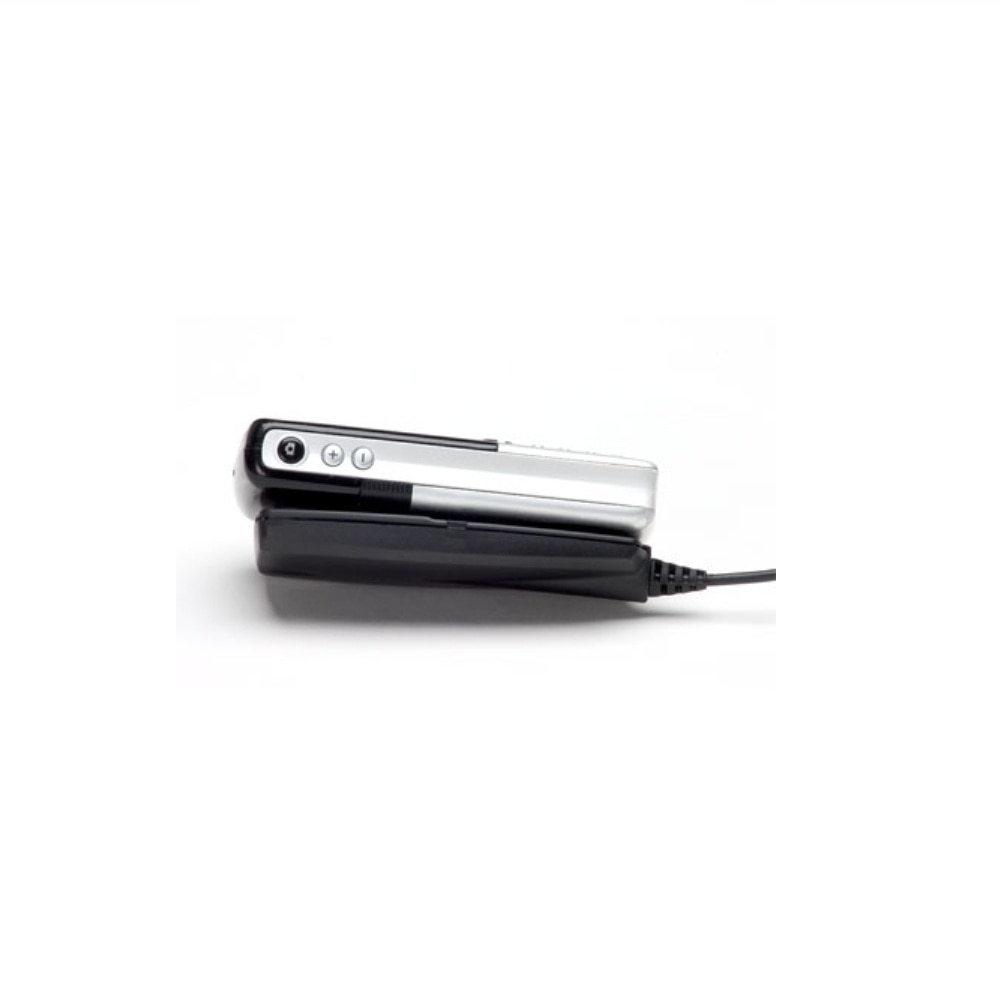

The pad of the coupler is placed against the top of the phone. (The coupler is supplied with a small piece of Velcro that you can use to ensure a more secure connection to your phone). You then connect the other end of the coupler to one of our booster antennas via the SMA (female) connector. The booster antenna can be mounted on the outside of a building and pointed in the direction of your closest cellular base station to ensure good reception.

Specifications

Specifications AT-ADPT-024

Electrical

Frequency Bands 1698 - 960 MHz, 1710 - 2700 MHz
VSWR (Coupled): < 3:1
VSWR (Free Space): < 3:1
Feed power handling 10 W
Cable loss0.35dB/m @900 MHz 0.53dB/m @ 2000 MHz
DC Short10
Nominal input impedance50 Ohm
PolarisationLinear

Environmental

Wind LoadingNA
Temperature Range- 20° C to +50° C
Environmental ConditionsIndoor
Operating Relative HumidityUp to 98%
Storage Humidity5% to 95% - non condensingMechanical
Storage Temperature-20°C to +50°C

Mechanical

Dimensions (l x w x d)80 mm x 45 mm x 15 mm
Weight29g
Plastic MaterialsABS (Halogen Free)
Plastic ColourRAL Black
