Poynting Generic USB Modem-to-Antenna Adaptor (SMA f)
US$7.06
- SKU: AT-ADPT-026
- Manufacturer: Poynting
- Data Sheet: Download
Product Information
Poynting AT-ADPT-026
Poynting AT-ADPT-026 Generic USB Modem-to-Antenna Adaptor (SMA f)

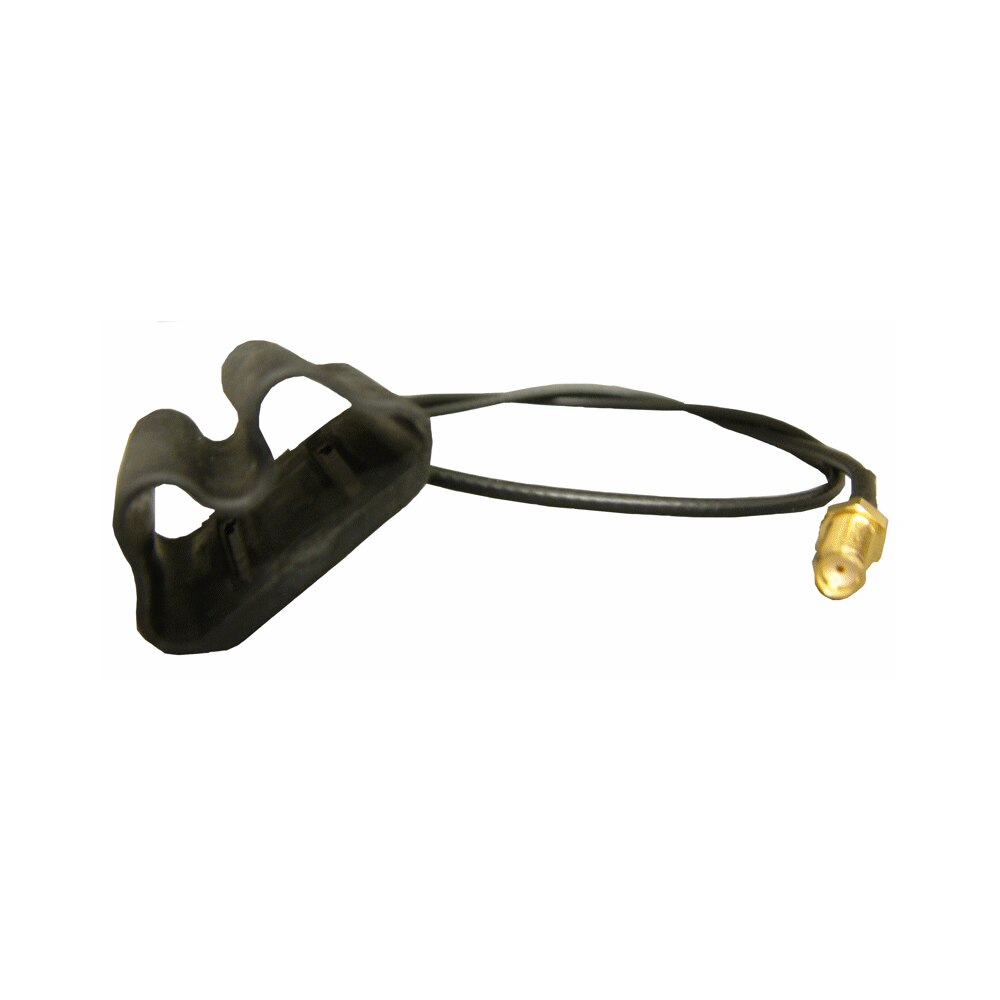

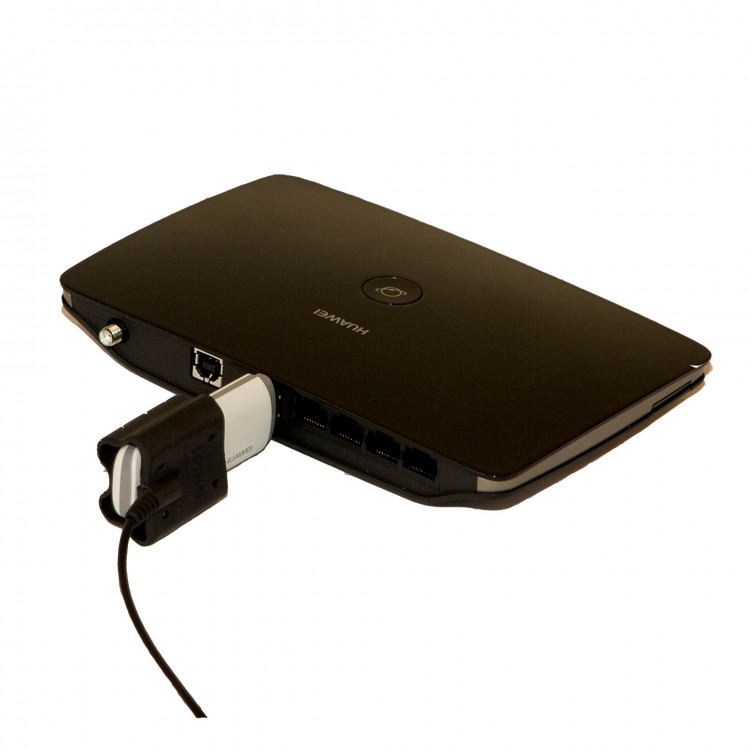

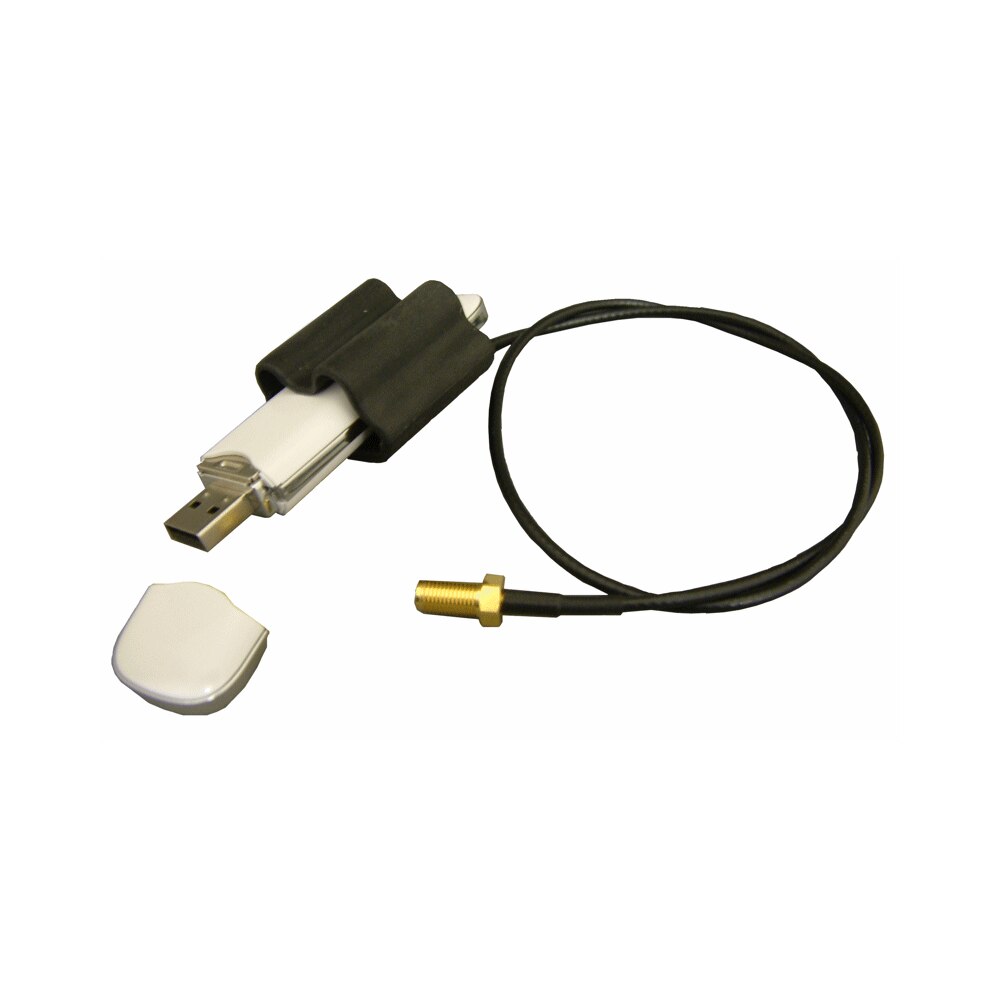

This device couples most data modems to an external antenna. The diverted antenna ensures better signal reception and ultimately better data throughput.The coupler slides over the modem (see photos).You then connect the other end of the coupler to one of our booster antennas via the SMA (female) connector. The booster antenna can be mounted on the outside of a building and pointed toward your closest cellular base station to ensure good reception.
Specifications
Specifications AT-ADPT-026
Electrical
Frequency Bands | 698 - 960 MHz,1710 - 2700 MHz |
VSWR (Coupled) | < 3:1 |
VSWR (Free Space) | < 3:1 |
Feed Power Handling | 10 W |
Input impedance | 50 Ohm (nominal) |
Polarisation | Linear |
Environmental
Temperature Range | - 20° C to +50° C |
Environmental Conditions | Indoor |
Operating Relative Humidity | Up to 98% |
Storage Temperature | -20°C to +50°C |
Mechanical
Dimensions (l x w x d) | 45 mm x 36 mm x 22 mm |
Weight | 20g |
Colour | Black |
