MikroTik R11e-5HacT 802.11ac MiniPCI-express Triple Chain Card
- SKU: R11e-5HacT
US$57.23 US$59.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information

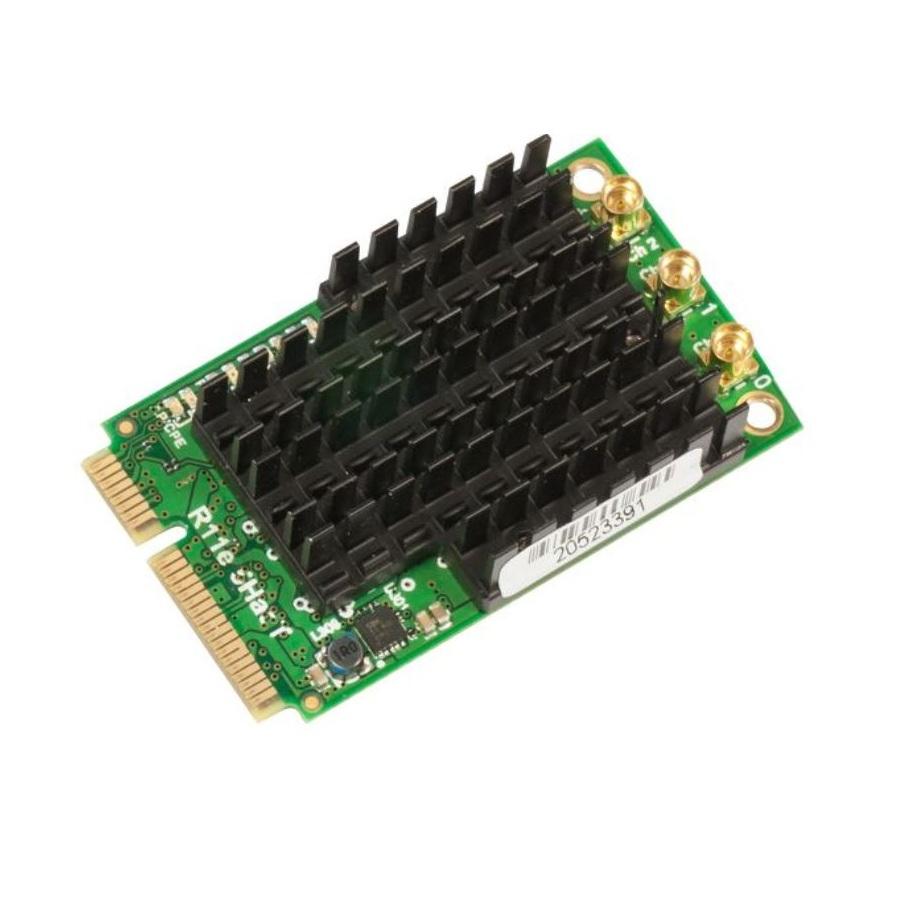

MikroTik R11e-5HacT 802.11ac High Power Triple-Chain miniPCI-e card with MMCX connectors
The new AC standard is here, with up to 1.3Gbps datarate and 256-QAM modulation, and 80MHz channels. 802.11ac opens up new possibilities and speeds never possible before.
R11e-5HacT is our first MIMO 3x3 triple chain 802.11ac card in miniPCIe format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB800, BaseBox etc.
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
Specifications
Specifications R11e-5HacT
| Chipset | QCA9880 |
| Frequency Range | 4920-6100MHz |
| Supported Channels | 20/40/80MHz |
| Standards | 802.11ac |
| Max Output Power | 650mW |
| Format | miniPCIe |
| Connectors | 3 x MMCX |
| Max Power Consumption | 5W |
| Operating Temperature | -22 to 149deg F (-30 to 65deg C) |
| TX/RX at MCS0 | 28dBm / -96dBm |
| TX/RX at MCS7 | 27dBm / -77dBm |
| TX/RX at MCS9 | 24dBm / -72dBm |
| TX/RX at 6Mbit | 28dBm / -96dBm |
| TX/RX at 54Mbit | 28dBm / -81dBm |
