RF Elements Omni Antenna for SBXM 800-900MHz/1dBi
- SKU: OARDSBX800
US$0.99 US$7.50
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information

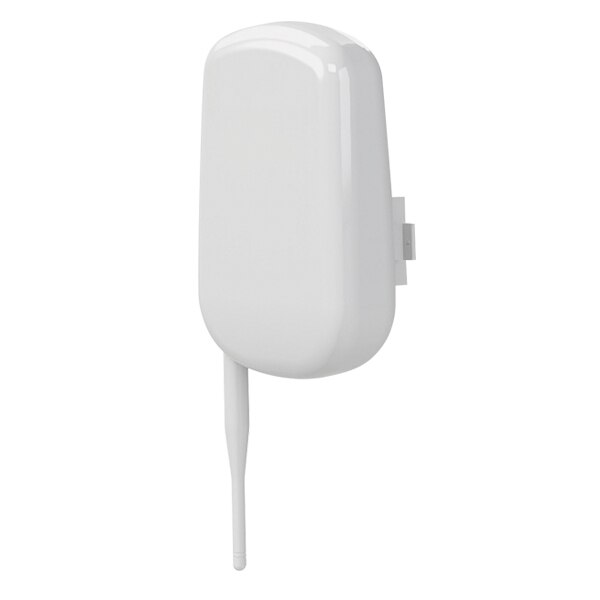

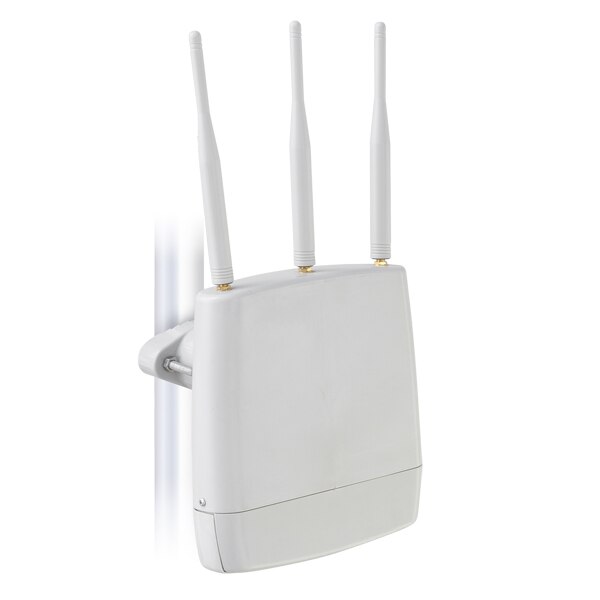

RF Elements 800-900MHz 1dBi Omni Antenna for StationBox Mikro/Classic
With these little helpers, you easily turn the enclosure into small integrated hotspot solution, mesh node or any other application where the small omnis can be helpful and effective. There are three models for 5GHz, 2.4GHz and 800-900MHz spectrum, crafted in compact size, made of UV stabilized plastic, light grey color.
Specifications
Specifications OARDSBX800
| Product ID | OARDSBX800 |
| Antenna Connector | SMA PLUG RP + C-RING |
| Gain | 1 dBi |
| Type | Dipole |
| Polarization | Linear Vertical |
| VSWR | ≤ 1.7 : 1 |
| Frequency | 800~900 MHz |
| Max Power | 50 W |
| Frequency | 800~900 MHz |
| Max Power | 50 W |
| Weight | 28 g, 0.06 lbs |
| Size | L 158 mm / ø 13,7 mm |
