RF Elements HG3-CC-A30
30° Asymmetrical Beam Antenna
30° Asymmetrical Horn CC has radiation pattern narrow in the azimuth and wide in the elevation plane, greatly improving the coverage planning options. Increased gain and zero side lobes are suitable for rural deployments.
30° Asymmetrical Horn CC Antenna exceeds the traditional patch array sector antenna thanks to high stability of gain and radiation pattern in the whole bandwidth of operation. Outstanding noise rejection and precision of radiation pattern favor 30° Asymmetrical Horn CC antenna for high-density AP clusters and dense co-location sites. 30° Asymmetrical Horn CC Antenna features two N-female connectors.
Game Changing Sector Antennas
Asymmetrical Horn CC Antennas provide unique asymmetrical beam shape while maintaining excellent noise rejection and overall excellent performance of a well designed horn antenna with N-female connectors. Enabling new levels of network scalability and throughput increase. Asymmetrical Horn CC antennas complement the successful Symmetrical Horn Antennas.
Unique Asymmetrical Beam
Asymmetrical Horn CC Antennas have unique beam shape. The beam cross-section in bore sight is elliptical: wide in azimuth and narrow in the elevation plane. This is useful for deployments where asymmetrical beam shape delivers better coverage.
No Side Lobes
Asymmetrical Horn CC Antennas have naturally suppressed side lobes because of their optimized design: they focus energy into a single main beam. Absence of side lobes enables excellent noise immunity of a network when using Asymmetrical Horn CC Antennas.
Wide Band Performance
The radiation pattern of Asymmetrical Horn CC Antennas is stable over the whole band width of operation.
Balanced H + V Beams
Asymmetrical Horn CC Antennas have balanced Horizontal and Vertical beam patterns. Balanced H+V beams are very difficult to achieve for antenna with asymmetrical beam shape and this is the area where all competitive products on the market fail. Balanced H+V beams are critical feature for stable link performance when switching channels.
Asymmetrical Horn CC Antennas have higher gain compared to Symmetrical Horn Antennas with the same azimuth beam width. Asymmetrical Horn CC Antennas cover ultra-wide frequency range: 5180-6000 MHz with excellent VSWR performance.
Perfect Coverage Pattern

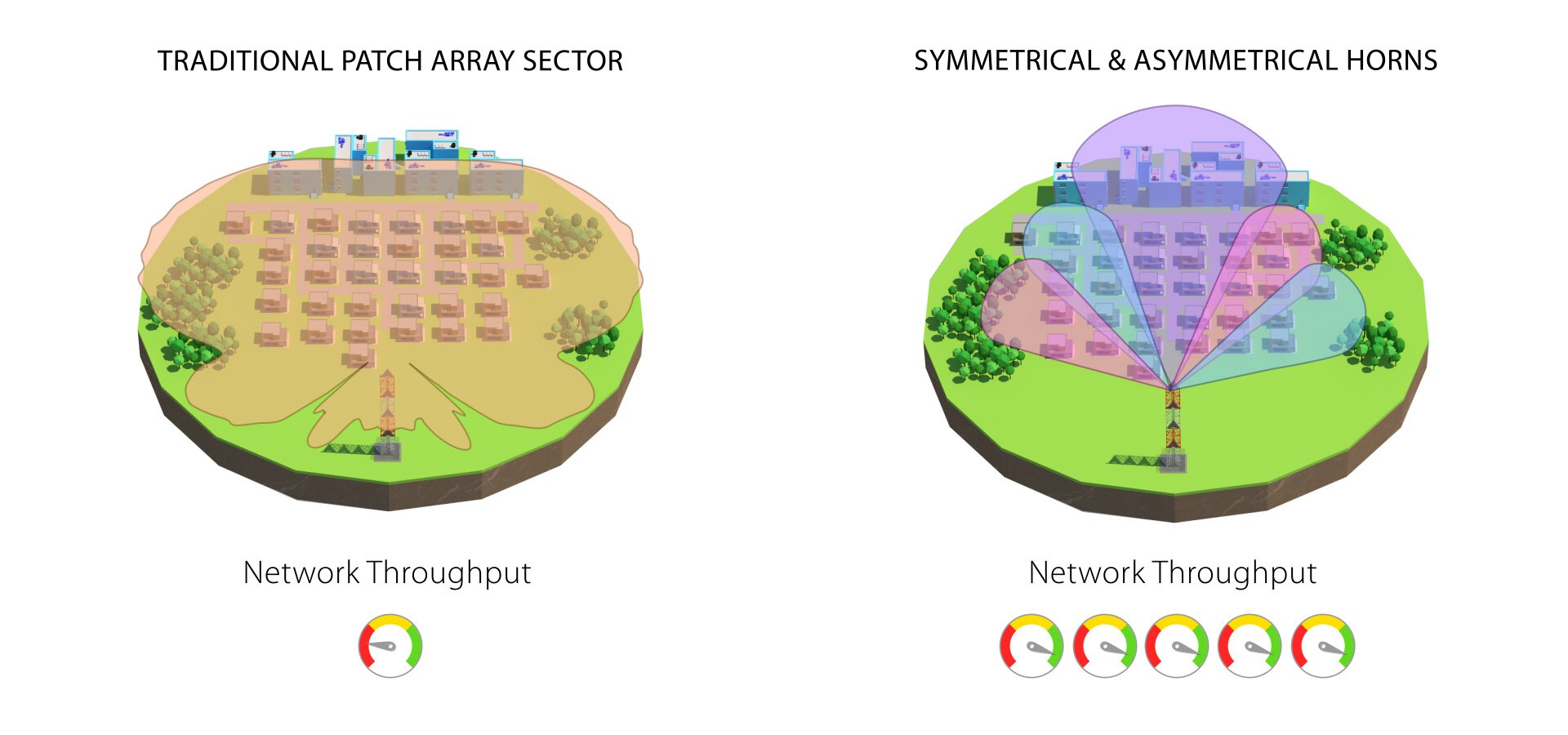

Mainstream patch array sector antennas have radiation pattern extremely wide in the azimuth and extremely narrow in the elevation plane. If an AP is deployed on a tall tower, customers near the tower suffer from low AP signal level. Asymmetrical Horn CC Antennas provide valuable extra degrees of the elevation beam width, shrinking the null zone while preserving the increased gain for long-range performance.
Breakthrough Scalability: Expanded
RF elements® Horn CC Antennas enable extraordinary network scalability. Asymmetrical Horn CC Antennas are a new addition to the toolbox of a modern WISP. Unique beam performance, precise radiation patterns, and increased gain push system scalability even further.
Asymmetrical Horn CC Antennas feature N-female connectors, used with a wide range of radios, such as MimosaTM A5c, Cambium NetworksTM PMP 450, LigoWaveTM, and many others.
Built Like a Tank
Asymmetrical Horn CC Antennas have solid aluminium body, built to last and resist any weather conditions. We use the most suitable materials: die cast, stamped, and extruded aluminium; stainless steel, high quality ABS plastic, and high density polyethylene.
|Radio Connection||2x N Female Bulkhead Connector|
|Materials||UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel|
|Pole Mounting Diameter||36-80 mm (recommend as close to 80mm as possible)|
|Temperature||-35°C to +55°C (-31°F to +131°F)|
|Wind Survival||160 km/hour|
|Wind Loading||67 N at 160 km/hour|
|Mechanical Adjustment||± 25° Elevation, ± 20° Azimuth|
|Weight||4.5 kg / 10.0 lbs – single unit* 6.6 kg / 14.6 lbs – single unit incl. package*|
|Single Unit||Retail Box: 435 × 360 × 250 mm / 17.1 × 14.2 × 9.8 inch*|
|Frequency Range||5180 - 6000 MHz|
|Azimuth Beam Width -3 dB||H 21° / V 21°|
|Elevation Beam Width -3 dB||H 15° / V 15°|
|Azimuth Beam Width -6 dB||H 30° / V 30°|
|Elevation Beam Width -6 dB||H 20° / V 20°|
|Beam Efficiency**||95 %|
|Front-to-Back Ratio||35 dB|
|VSWR Max 5180-6000 MHz||1.6|
|Polarization||Dual Linear H + V|
