RF Elements 16 dBi 90° Asymmetrical Horn TP Antenna

  • SKU: HG3-TP-A90
  • Manufacturer: RF Elements
  • Data Sheet: Download
  • Availability: 58 In Stock    (updated live)

Add ons (click to select)

Specifications HG3-TP-A90

Antenna Connection TwistPort™ - Quick Locking Waveguide Port
Antenna Type Horn
Materials UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel
Enviromental IP55
Pole Mounting Diameter36-80 mm (we recommend as close to 80mm as possible)
Temperature -35°C to +55°C (-31°F to +131°F)
Wind Survival 160 km/hour
Wind Loading76 N at 160km/h
Mechanical Tilt± 25° Elevation, ± 20° Azimuth
Weight5.3 Kg / 11.6 lbs – single unit*
7.2 Kg / 15.9 lbs – single unit incl. package
Frequency Range 5180 - 6000 MHz
Gain16 dBi
Azimuth Beam Width -3 dBH 60° / V 60°
Elevation Beam Width -3 dB H 16° / V 16°
Azimuth Beam Width -6 dB H 90° / V 90°
Elevation Beam Width -6 dB H 25° / V 25°
Beam Efficiency**90%
Front-to-Back Ratio 30 dB

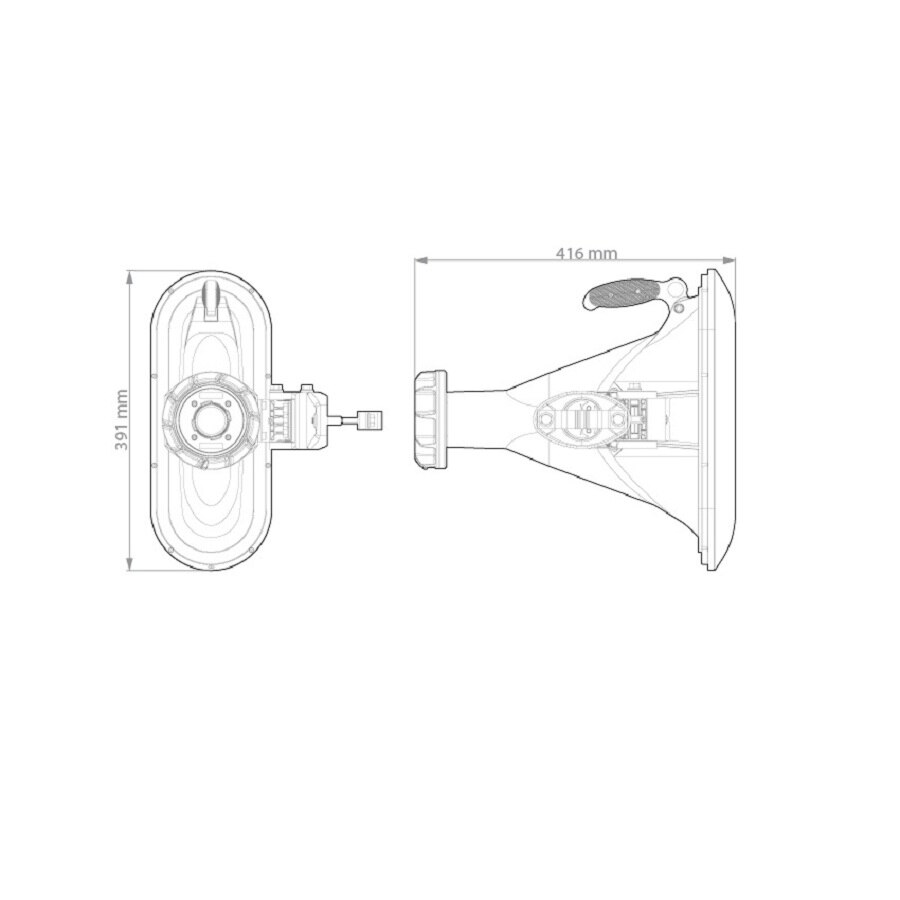

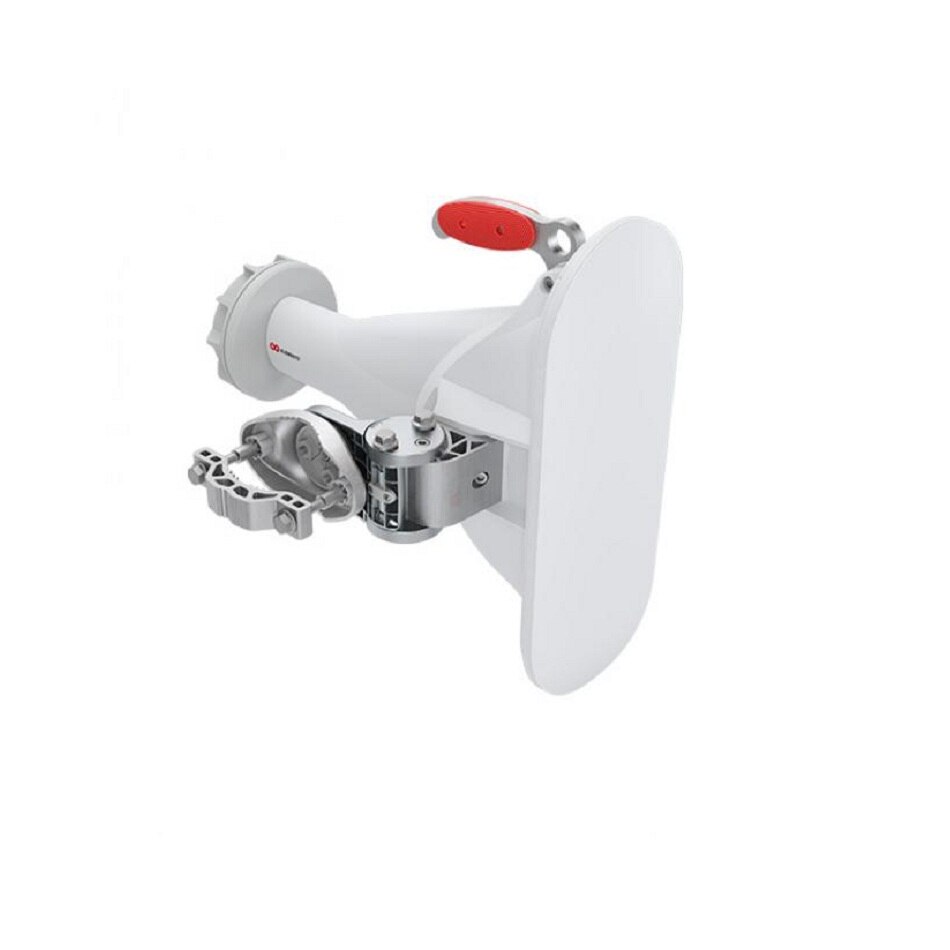

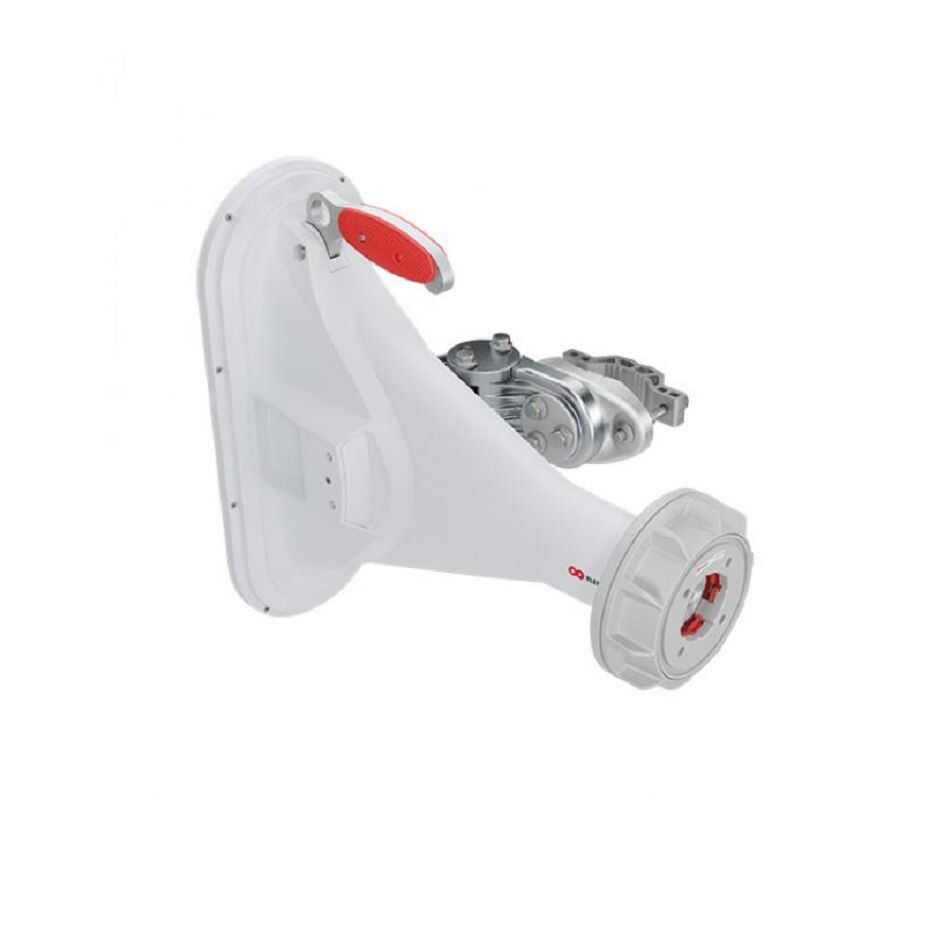

RF Elements HG3-TP-A90

16 dBi 90° Asymmetrical Horn TP Antenna

Game Changing Sector Antennas

90° Asymmetrical Horn TP Antenna combines the best of both worlds - high gain of a traditional sector antenna and zero side lobes of a horn. Its radiation pattern is wide in azimuthal and narrow in elevation plane, greatly improving coverage planning options. 90° Asymmetrical Horn TP Antenna exceeds the traditional patch sector antenna thanks to high stability of gain and radiation pattern in the whole band of operation. Outstanding noise rejection and precision of radiation pattern favors 90° Asymmetrical Horn TP antenna for high-density AP clusters, in highly populated areas and dense co-location sites.

HG3-TP-A90 features our revolutionary TwistPort™ connector, a patent-pending twistand-lock waveguide port. TwistPort™ is virtually lossless and embodies a complete shift of paradigm in wireless network scalability and convenience of deployment. 90° Asymmetrical Horn TP Antenna supports a wide range of third party mainstream radios with our TPA TwistPort™ Adaptor.

Asymmetrical Horn TP Antennas provide asymmetrical beam shape and game-changing TwistPortTM (TP) connector. Asymmetrical Horn TP Antennas provide excellent noise rejection, network scalability and throughput increase. Providing specific beam shape, increased antenna gain and excellent noise rejection, Asymmetrical Horn TP antennas complement the successful Symmetrical Horn Antennas.

Unique Asymmetrical Beam

Asymmetrical Horn TP Antennas have unique beam shape. The beam cross-section in bore sight is elliptical: wide in azimuth and narrow in elevation plane. This is useful for deployments where where asymmetrical beam shape delivers better coverage.

No Side Lobes

Asymmetrical Horn TP Antennas have naturally depressed side lobes: they focus energy into single main beam. Absence of side lobes enables excellent noise immunity of Asymmetrical Horn TP Antennas.

Wide Band Performance

The radiation pattern of Asymmetrical Horn TP Antennas is stable over the whole frequency range.

Balanced H + V Beams

Asymmetrical Horn TP Antennas have balanced Horizontal and Vertical beam patterns. Balanced H+V beams are very difficult to achieve for antenna with asymmetrical beam shape and this is the area where all competitive products on the market fail. Balanced H+V beams are critical feature for link performance.

Gain Performance

Asymmetrical Horn TP Antennas provide increased gain when compared to Symmetrical Horn TP Antennas with the same azimuth beam width. Asymmetrical Horn TP Antennas cover ultra-wide frequency range: 5180-6000 MHz with excellent VSWR performance.

Perfect Coverage Pattern

Mainstream patch array sector antennas have radiation pattern extremely wide in azimuth and extremely flat in elevation plane. If an AP is deployed on a tall tower, customers near the tower suffer from low AP signal level. Asymmetrical Horn TP Antennas provide valuable extra degrees in elevation beam width, shrinking the null zone while preserving increased gain for long range performance.

Co-Location Miracle

Asymmetrical Horn TP Antennas have naturally depressed side lobes and extremely low back radiation. Asymmetrical Horn TP Antennas are perfect for high density sector clusters with demanding co-location requirements.

Breakthrough Scalability: Expanded

RF elements® Horn TP Antennas provide extraordinary scalability options. Asymmetrical Horn TP Antennas are new addition to the tool box. Unique beam performance, precise radiation patterns and increased gain push system scalability even further.

TwistPortTM Connector

Asymmetrical Horn TP Antennas feature our industry-changing TwistPortTM connector, a patent-pending quick-locking waveguide port. TwistPortTM is virtually lossless: there are no coaxial connectors or cables that attenuate signal. Connecting radios is ingeniously simple - “twist and lock” - with a single hand!

Cross-Platform Compatibility

Wide range of TwistPortTM Adaptors enables connection of the most popular connectorized radios of third party vendors, such as UBNTTM, MimosaTM, MikroTikTM or Cambium NetworksTM, directly to any TwistPortTM-enabled antenna.

Built Like a Tank

Asymmetrical Horn TP Antennas have solid aluminium body, built to last and resist any weather conditions. We use the most suitable materials: die cast, stamped and extruded aluminium; stainless steel, high quality ABS plastic and high density polyethylene.
