RF Elements TP-ADAPTOR-R5AC-PTP_v2

(0) No Reviews yet
  • SKU: TP-ADAPTOR-R5AC-PTP_v2
  • Manufacturer: RF Elements
  • Data Sheet: Download
  • Spec Sheet: Download
  • Availability: 68 In Stock (updated live)
$25.00

Specifications TP-ADAPTOR-R5AC-PTP_v2

Frequency Range5180 - 6100 MHz
Gain18.5 dBi
Azimuth/Elevation BW -3 dBH 21° / V 21°
Azimuth/Elevation BW -6 dBH 30° / V 30°
Front-to-Back Ratio41 dB
VSWR Max1.8
PolarizationDual Linear H + V
Impedance50 Ohm

RF Elements TP-ADAPTOR-R5AC-PTP_v2

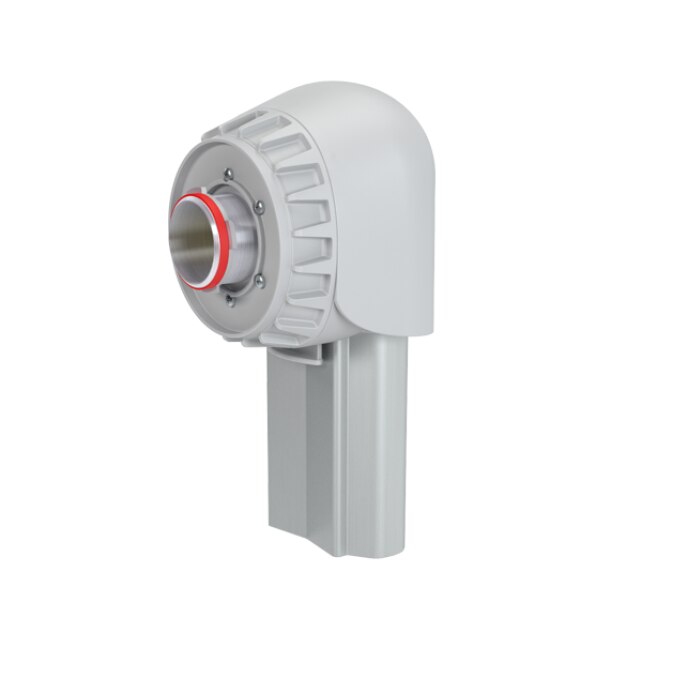

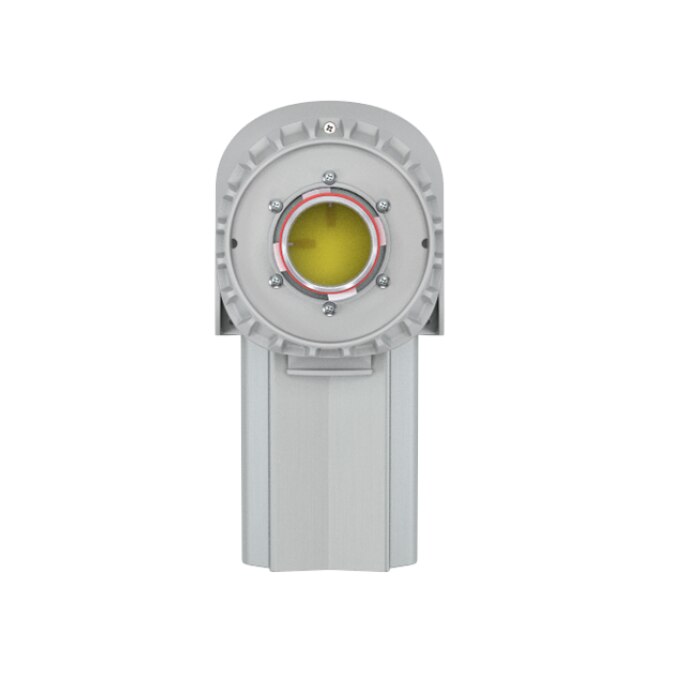

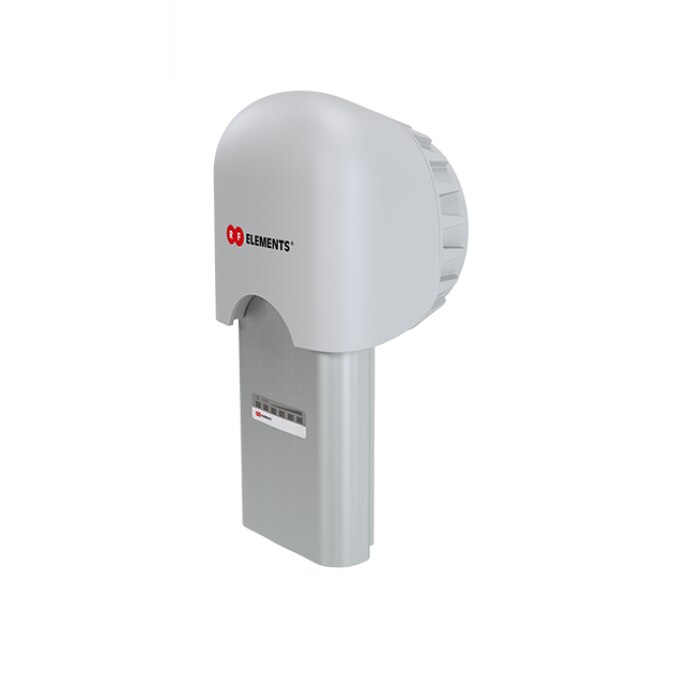

TwistPort™ Adaptor for Rocket™ 5AC – PTP/PTMP v2

What Is A TwistPort™ Adaptor

TwistPort™ Adaptors make most popular connectorized radios and MikroTik RouterBoards compatible with any TwistPort™ antennas. They are the key to the entire TwistPort™ ecosystem with all its benefits - low loss, high scalability, easy co-location, simple deployment, and easy maintenance.

For Ubiquiti Networks Rocket™ Radios

TwistPort™ Adaptors for Ubiquiti Networks Rocket radios enable integration with Rocket M5, Rocket 5AC-Lite, Rocket 5AC-PTP, and Rocket 5AC-PTMP. The adaptor uses special coaxial connectors without threads, so the installation is effortless. Simply slide the radio into the adaptor until you hear “click”. To unlock, press the button and slide the radio out.

To improve co-location performance and decrease noise emmission, TwistPort Adaptors are available also in a shielded version. Shielded Adaptors for UBNTTM Rocket radios have a visible metal enclosure attached to the main body.

TwistPort™ Adaptor for the latest Rocket™ 5AC Prism is now available so you can connect it to any TwistPort™ antenna. The GPS antenna connector is located on the bottom of the Adaptor. The integration with the radio is smooth and effortless. TwistPort™ Adaptor for Rocket 5AC Prism covers an ultra-wideband spectrum from 5180 MHz to 6400 MHz!

TwistPort™ Adaptor for the latest Rocket™ AF5X is now available so you can connect it to any TwistPort™ antenna. The integration with the radio is smooth and effortless. TwistPort™ Adaptor for Rocket AF5X covers an ultra-wideband spectrum from 5180 MHz to 6400 MHz!

For MikroTik™ RouterBoard™

TwistPort™ Adaptors for MikroTik™ RouterBoard™ are compatible with popular RouterBoard™ RB92x, RB91x, RB71x and RB41x product series. The installation of the RouterBoard™ is quick and easy.

To improve co-location performance and decrease noise emmission, TwistPort™ Adaptor for MikroTik™ RouterBoard™ are available also in a shielded version. Shielded Adaptor for MikroTik™ RouterBoard™ is equipped with an additional metal cage hidden inside the enclosure.

For Cambium Networks ePMP1000TM

TwistPort™ Adaptor for Cambium Networks ePMP1000TM radios allows easy integration with ePMP1000TM AP and CSM radios. The TwistPort™ Adaptor uses special coaxial connectors without threads, so the installation of the radio is effortless. Simply slide the radio into the adaptor until you hear “click”. To unlock, press the button and slide the radio out.

Wideband Performance

Starting with version "V2", you can utilize all benefits of TwistPort™ eco-system and superb performance of TP antennas in wideband. TwistPort™ Adaptors V2 cover ultra-wideband spectrum: 5180-6400 MHz!

Easy Integration

Check how easy the TwistPort™ Adaptor integrates connectorized radios and MikroTik™ RouterBoard™.

Integration of the new Rocket 5AC Prism is revolutionary simple!
