RF Elements TwistPort Adaptor for Mimosa A5x

  • SKU: TPA-A5x
  • Manufacturer: RF Elements
  • Data Sheet: Download
  • User Guide: Download
  • Availability: 27 In Stock    (updated live)
    27 In stock at College Station

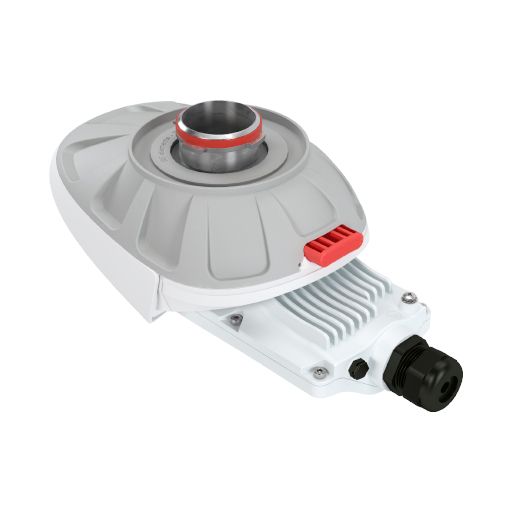

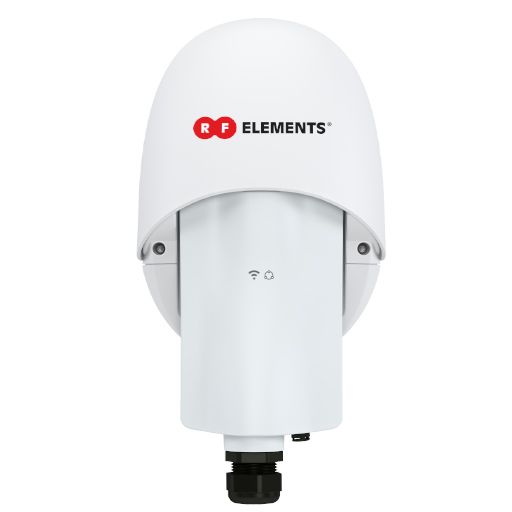

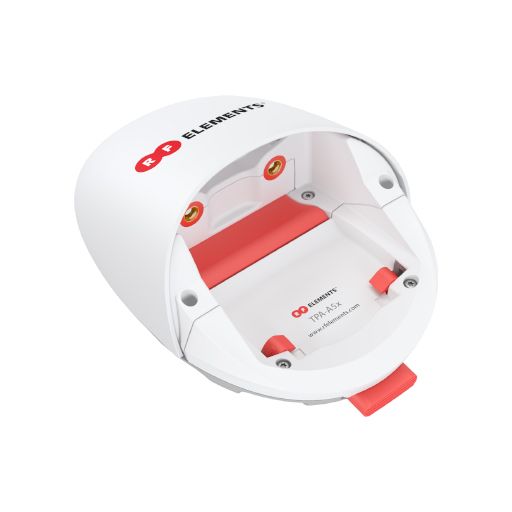

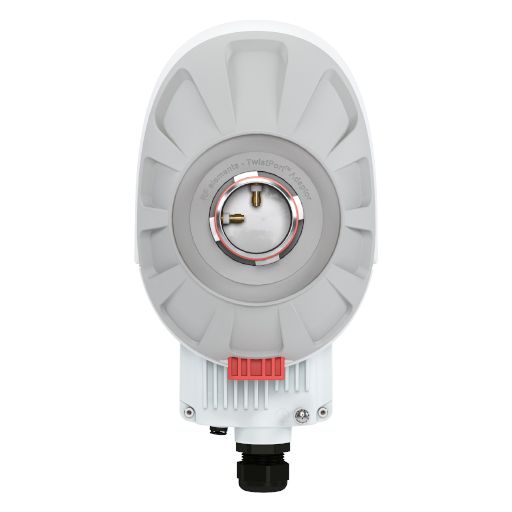

RF Elements TPA-A5x

TwistPort Adaptor for Mimosa A5x

The TPA-A5x product is a TwistPort ™ waveguide adapter that allows you to connect the RF Elements antennas with TwistPort ™ connector easily and without loss with the A5x Mimosa device.


  • Antenna Connection: TwistPort - Quick Locking Waveguide Port
  • Radio Connection: 2x Slide-On RP-SMA
  • Materials: • Insert - Aluminum Alloy • Adaptor - UV stabilized and weather resistant ABS plastic

Compatible Wireless Platforms :

  • RF elements: Any TwistPort Antenna
  • Mimosa Networks: A5x

Specifications TPA-A5x

Weight0.35 Kg / 0.77 lbs
Dimensions (L x W x H)19.8 × 13.7 × 11.4 cm / 7.8 x 5.4 x 4.9 inchs
Flame RatingUL 94 HB
Temperature-40°C to +60°C (-40°F to +140°F)
Wind Survival160 km/h
Frequency Range5180MHz - 6400MHz
PolarizationDual Linear H + V
VSWR Max1.8
Impedance50 Ohm
