RF Elements TwistPort™ Adaptor for Mimosa C5x
- SKU: TPA-C5x
Product Information
RF Elements TPA-C5x
TwistPort™ Adaptor for Mimosa C5x
What is TwistPort™Adaptor

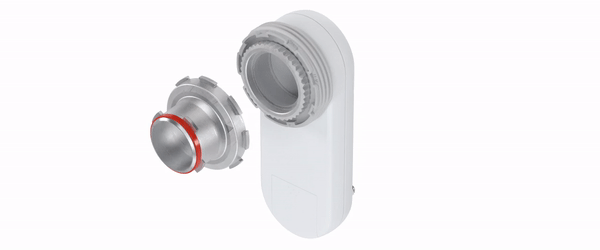

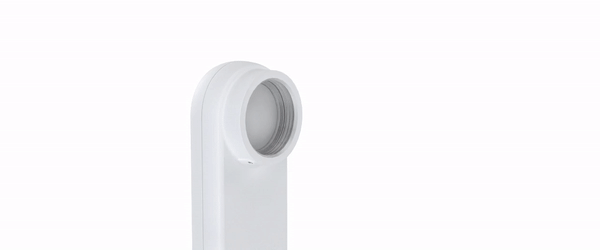

TwistPort Adaptor TPA-C5x adapts Mimosa® C5x radios to RF elements® proprietary TwistPortTM waveguide connector. Integration of the radio is smooth and easy. Making Mimosa® C5x radios compatible with TwistPortTM allows for using the radio with any TwistPortTM antenna ever made and enable superior performance, noise immunity and network scalability.
Dual Slant or H+V
TPA-C5x allows to choose between Dual Slant polarization setup or H+V polarization setup.
Market Leading Performance

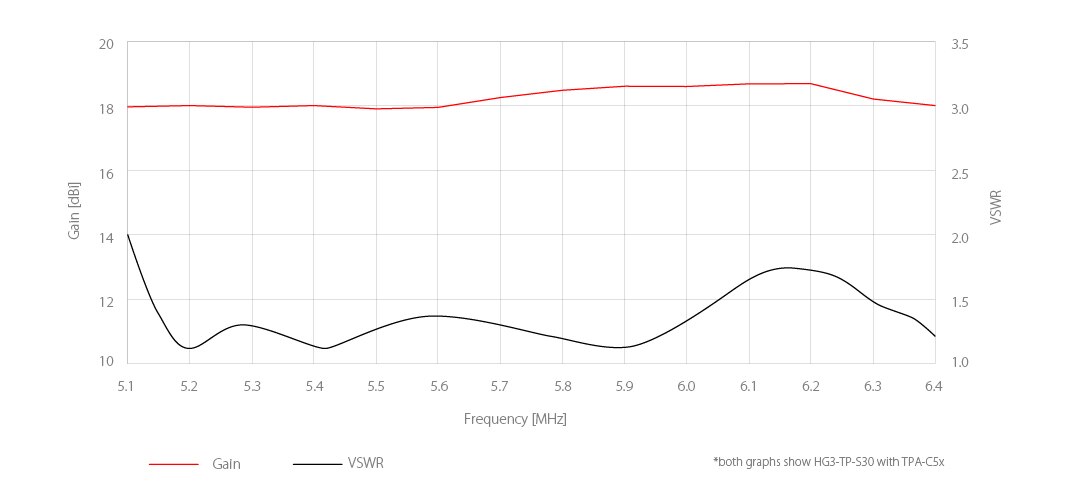

TwistPortTM Adaptors cover an ultra-wideband spectrum of 5180-6400 MHz and perform with superb efficiency with very well managed VSWR across the spectrum.
Find In-Stock Products
Expected availability: Late Q1 2020. Check our Stock locator service that provides real-time information about stock available at our distributors.
Specifications
Specifications TPA-C5x
| Antenna Connection | TwistPort Quick Locking Waveguide Port |
| Radio Connection | Waveguide |
| Materials | Insert - Aluminium Alloy Adaptor - UV stabilized and weather resistant ABS plastic |
| Flame Rating | UL 94 HB |
| Temperature | -40°C to +60°C (-40°F to +140°F) |
| Wind Survival | 160 km/h |
| Frequency Range | 5180 - 6400 MHz |
| Polarization | Dual Linear H + V and Slant |
| Antenna Compatibility | Any TwistPortTM Compatible Antenna |
| Radio Compatibility | Mimosa® C5x |
| Weight | 0.17 kg / 0.3 lbs – single unit 0.20 kg / 0.4 lbs – single unit incl. package 19.5 kg / 43 lbs – carton (100 units) |
