RF Elements TwistPort™ Adaptor for RouterBoard

(0)No Reviews yet
  • SKU: TPA-RBC
  • Manufacturer: RF Elements
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

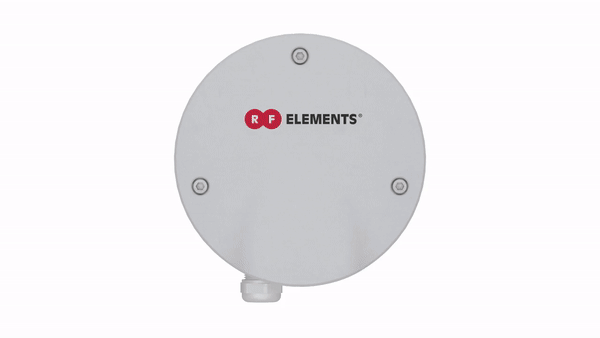

RF Elements TPA-RBC

TwistPort™ Adaptor for RouterBoard

TwistPort Adaptor adapts 3rd party radios to RF elements® proprietary TwistPortTM waveguide connector. Integration of the radio is smooth and requires no tools. Making 3rd party radios compatible with TwistPortTM allows for using the radio with any TwistPortTM antenna ever made and enable superior performance, noise immunity and network scalability.

Made For RBM11G

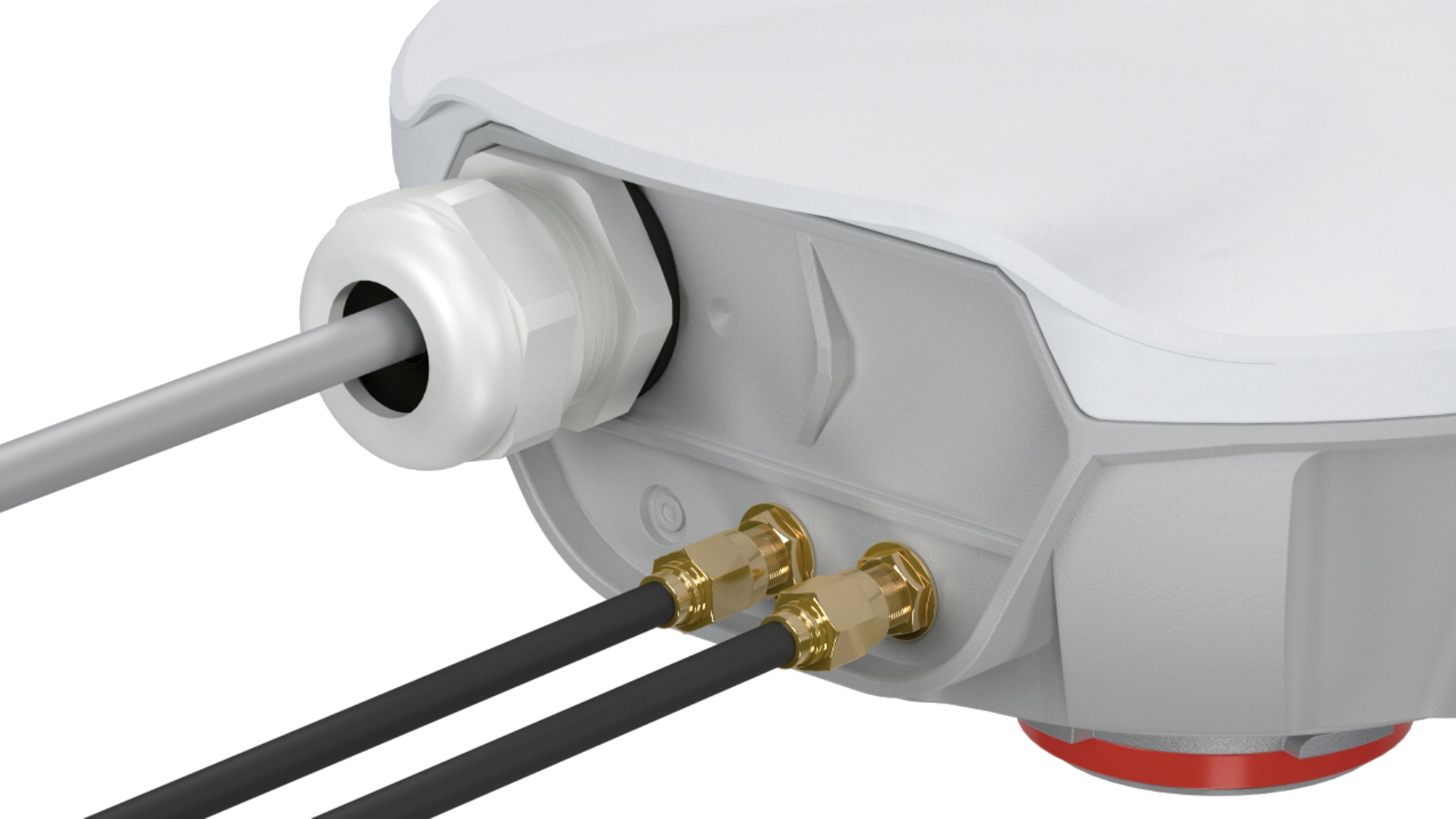

TwistPortTM Adaptor for RouterBoardTM is compatible with MikroTikTM RouterBOARDTM 9XX, 7XX and 4XX series, as well as with the recent M11 Series. Transition to TwistPortTM waveguide connector is terminated with two MMCX pigtails.

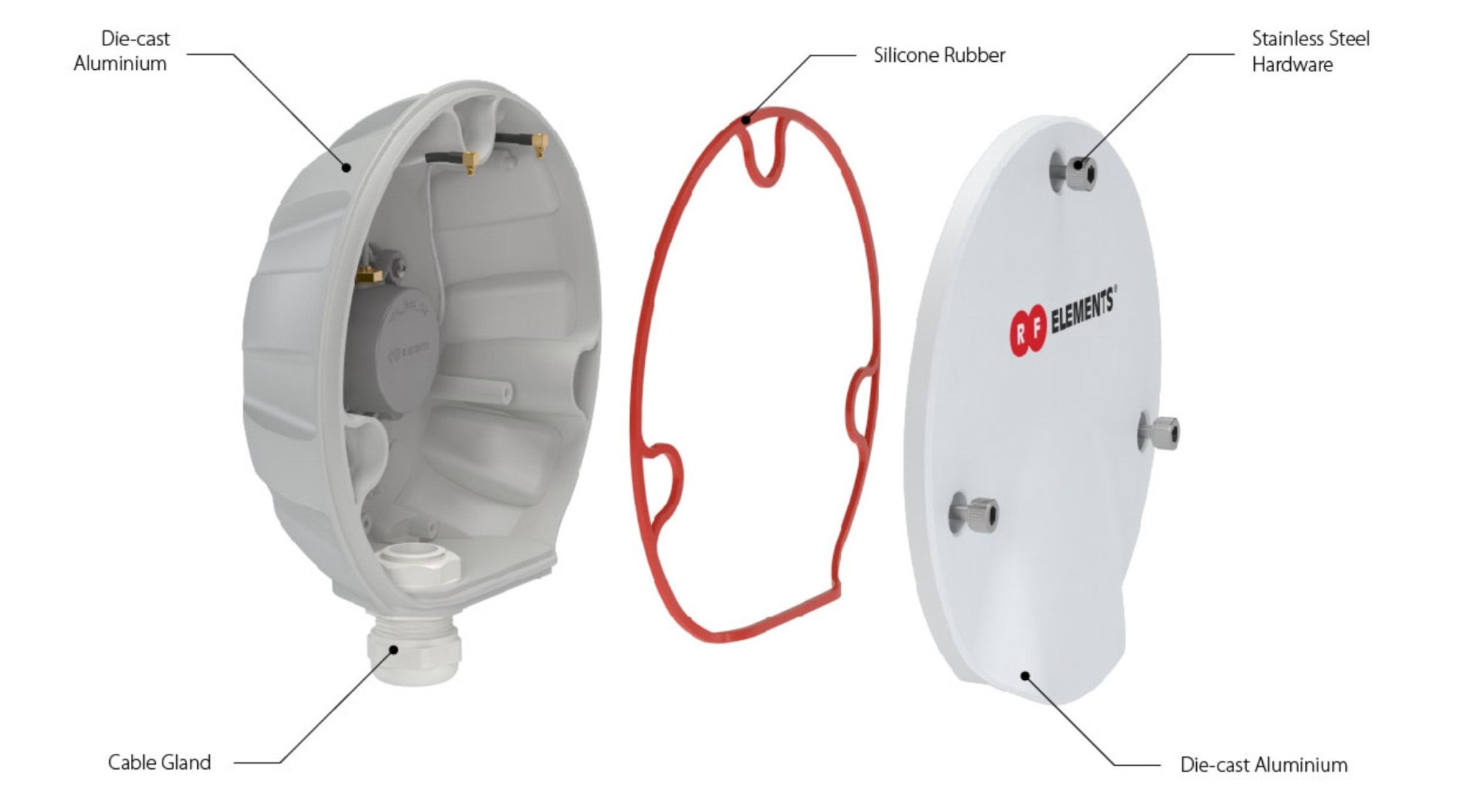

Aluminium Enclosure

TPA-RBC is made of cast aluminium and provides excellent protection that is required in outdoor environment.

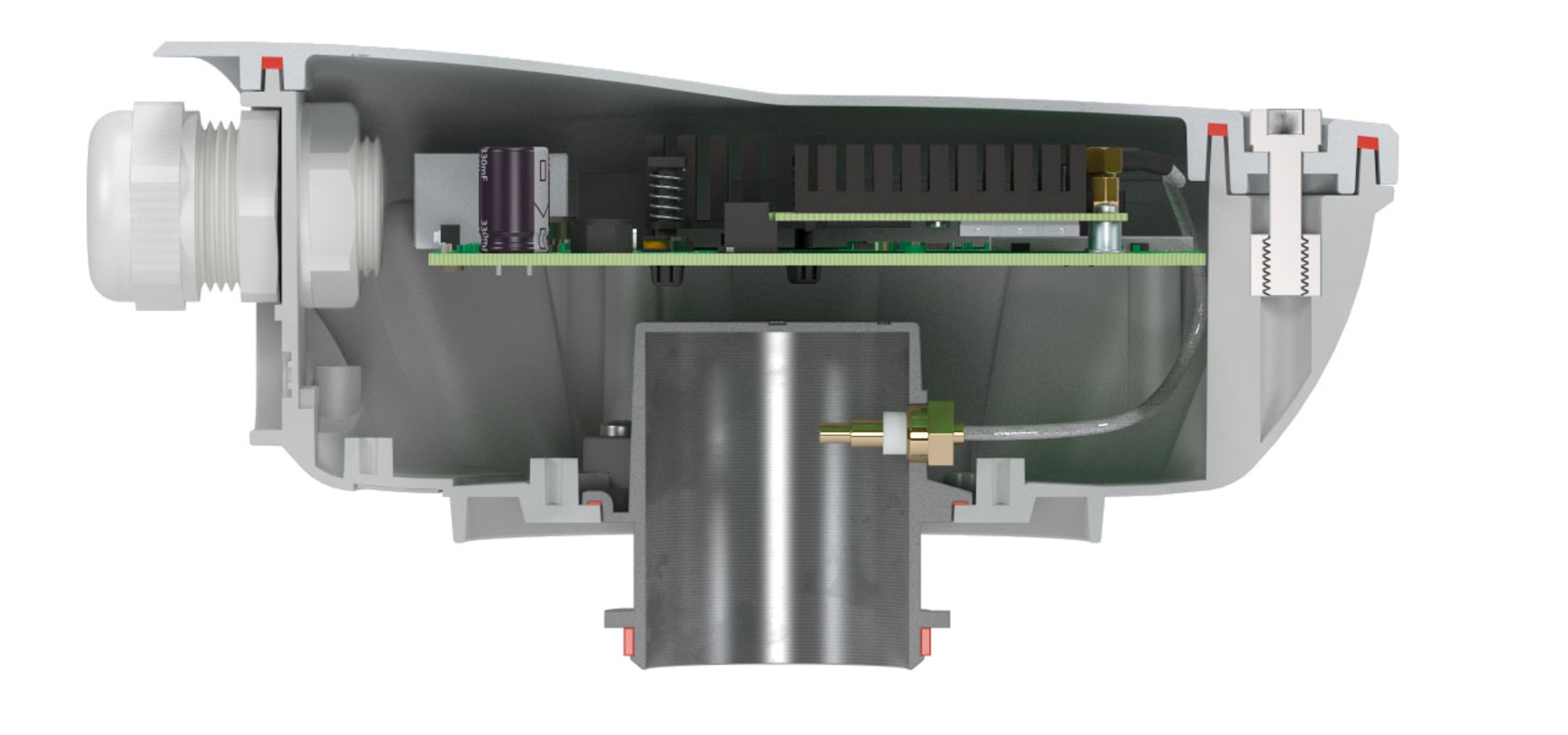

More Real Estate

TPA-RBC offers more real estate inside the enclosure. It can be used for any additional equipment when building your own radio platform e.g. for radio cards with taller heath sinks.

More Flexibility

TPA-RBC offers space for additional external connectors of choice. Aluminium wall allows for custom drilling or milling to fulfill various requirements.

Excellent Performance

TPA-RBC covers an wideband spectrum of 5180-6100 MHz.

Easy Installation


Specifications

Specifications TPA-RBC

Antenna Connection TwistPort - Quick Locking Waveguide Port
Radio Connection 2x Right Angle MMCX
Materials Insert - Aluminium Alloy
Body - Aluminium Alloy
Flame Rating UL 94 HB
Temperature -40°C to +60°C (-40°F to +140°F)
Wind Survival 160 km/h
Weight 0.55 Kg / 1.2 lbs – single unit
0.74 Kg / 1.6 lbs – single unit incl. package
15.8 Kg / 34.8 lbs – carton (20 units)
PERFORMANCE
Frequency Range 5180 - 6400 MHz
Polarization Dual Linear H + V
VSWR Max 1.8
Impedance 50 Ohm
COMPATIBLE WIRELESS PLATFORMS
RF elements® any TwistPort™ Antenna
MikroTik™ RouterBoard™ RB91x, RB92x , RB71x, RB411L, RB411GL
