RF Elements TwistPort™ Adaptor with SMA connectors

(0) No Reviews yet
  • SKU: TPA-SMA
  • Manufacturer: RF Elements
  • Data Sheet: Download
  • Availability: 169 In Stock (updated live)
$44.90

Specifications TPA-SMA

Antenna Connection TwistPort - Quick Locking Waveguide Port
Radio Connection 2x RP-SMA male
Materials Insert - Aluminium Alloy
Adaptor - UV stabilized and weather resistant ABS plastic
Flame Rating UL 94 HB
Temperature -40°C to +60°C (-40°F to +140°F)
Wind Survival 160 km/h
Weight 0.21 Kg / 0.46 lbs – single unit
0.28 Kg / 0.61 lbs – single unit incl. package 29.0 Kg / 63.9 lbs – carton (100 units)
Single Unit Retail Box: 15.5 × 10.0 × 9.7 cm
100 Units Carton Box: 99 × 48 × 32 cm
PERFORMANCE
Frequency Range 5180 - 6400 MHz
Polarization Dual Linear H + V
VSWR Max 1.8
Impedance 50 Ohm

RF Elements TPA-SMA

TwistPort™ Adaptor with SMA connectors

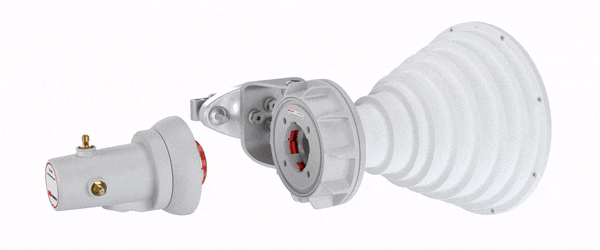

TwistPort Adaptor (TPA) adapts 3rd party radios to RF elements® proprietary TwistPortTM waveguide connector. We typically provide custom made TPA for specific 3rd party radios, following their shape and connector setup. Custom designed TPA allows for the best RF performance, minimal RF loss and excellent user experience.

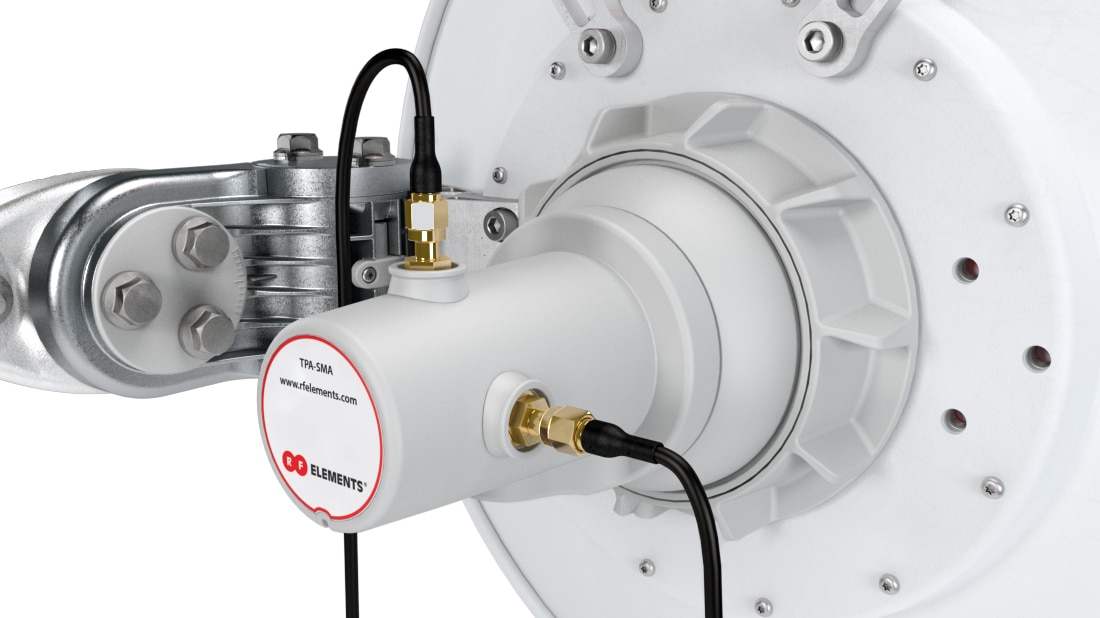

Not all radios are able to fit custom designed TPA. They might be too bulky, too heavy or simply we do not know about them. For these radios we created TPA that provides RP-SMA male connector interface.

RP-SMA Coaxial Interface

TPA-SMA provides industry most used RP-SMA male coaxial interface in dual linear H+V polarization.

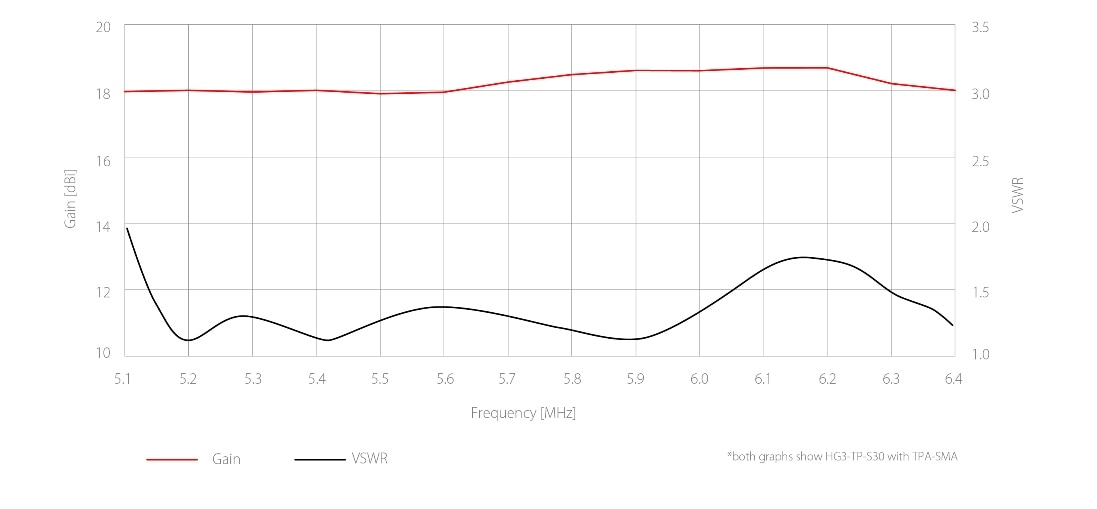

Performance

TPA-SMA covers an ultra-wide band spectrum of 5180-6400 MHz and performs with superb efficiency.

Minimized Loss

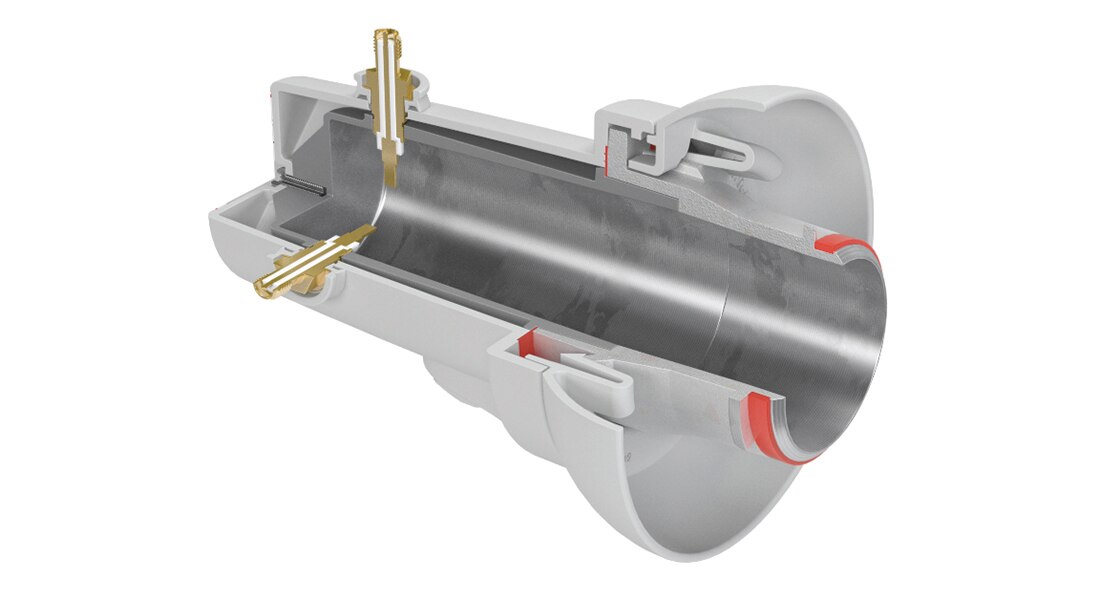

RP-SMA connectors are placed directly on waveguide, avoiding use of inner coaxial cables and minimizing loss to necessary minimum.
