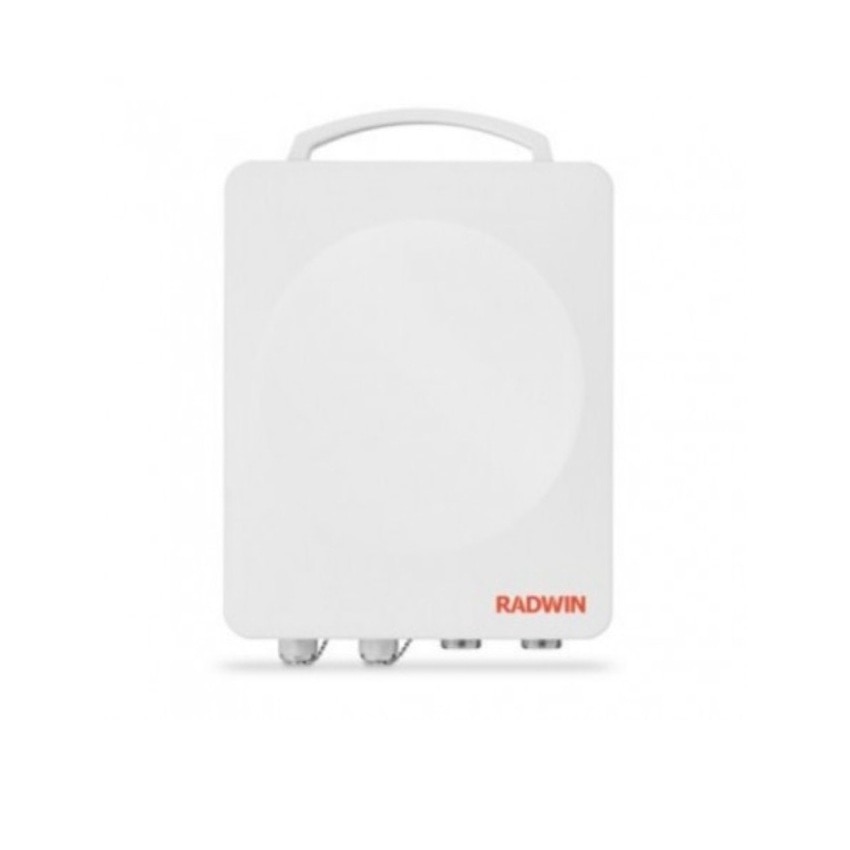

RADWIN RW5000 HBS-Pro 5200 Series Base Station Radio Connectorized for External Antenna (2x N-type) F54 IC
- SKU: RW-5200-1254
US$2,415.00
- Manufacturer:
- Data Sheet: Download
Product Information
RADWIN RW-5200-1254
5000 HPMP HBS 5200 Series Base Station Radio Connectorized for External Antenna (2x N-type), supporting frequency bands at 5GHz, factory default 5.4GHz IC
RW5000 HBS-Pro 5200 Series Base Station Radio Connectorized for External Antenna (2x N-type) F54 ICRW-5200-1254 is a sector Base Station radio unit (HBS) that provides up to 250 Mbps net aggregate throughput while delivering access connectivity for up to 32 Subscriber Units (HSU).
RW-5200-1254 supports 5.2 to 5.8 GHz and complies with IC & FCC/IC regulations.
The radio is connectorized for external antenna (2 x N-type).
Features:
- Up to 250 Mbps net aggregated throughput
- Long range - Up to 40 km / 25 miles
- Supports up to 32 HSUs
- Guaranteed Service Level Agreement (SLA) per HSU
- Exceptional short and constant latency
- Single radio supporting multiple bands
- Advanced MIMO, OFDM and Diversity technologies
- Robust and reliable operation in harsh conditions, extreme temperatures and non-line-of-sight scenarios
- Ease of operation and maintenance
Specifications
Specifications RW-5200-1254
| Configuration | |
| Architecture | Outdoor Unit connectorized for external antenna (2 x N-type) |
| PoE to ODU Interface | Outdoor CAT-5e; Maximum cable length: 100m for 10/100BaseT and 75m for 1000BaseT |
| Radio | |
| Max Capacity | 250 Mbps net aggregate throughput |
| Subscriber Units (HSUs) support | Up to 32 HSUs |
| Range | Up to 40 km / 25 miles |
| Channel Bandwidth | Configurable: 20, 40 MHz (for the default band) |
| Modulation | MIMO-OFDM (BPSK/QPSK/16QAM/64QAM) |
| Adaptive Modulation & Coding | Supported |
| Smart Bandwidth Management (DBA) | Supported |
| DFS | Supported (IC) |
| Diversity | Supported |
| Max Tx Power | 25 dBm; max EIRP 29 dBm (for the default band) |
| Duplex Technology | TDD |
| Error Correction | FEC k = 1/2, 2/3, 3/4, 5/6 |
| Encryption | AES 128; FIPS 197; AES 256 optional (via Software License Key) |
| Support Indoor units | RADWIN PoE devices (RW-9921-101X) |
| Uplink / Downlink Allocation | Configurable: Symmetric or Asymmetric |
| End to End Latency | Typical: 3.5msec @ 2 HSUs; 20msec @ 32 HSUs |
| Layer 2 | Bridging learning of 5K MAC addresses |
| QoS | Packet classification to 4 priority queues according to 802.1P or Diffserv |
| VLAN Support | 802.1Q, QinQ, 4094 VLANs |
| TDD Intra Site Synchronization | Supported |
| TDD Inter Site Synchronization | Supported through common GPS receiver per site |
| ODU Management | IPv4/IPv6 dual-stack; SNMP v1 and v3; HTTP using web browser |
| Mechanical | |
| ODU Dimensions | 28(w) x 19.5(h) x 8(d) cm |
| ODU Weight | 2.4 kg / 5.29 lbs |
| Power | |
| Power Feeding | Power provided over ODU-IDU cable |
| Power Consumption | <20W |
| Environmental | |
| Operating Temperatures | -35°C to 60°C / -31°F to 140°F |
| Humidity | 100% condensing, IP67 (totally protected against dust and against immersion in water up to 1m) |
| Safety | |
| US/CAN (cTUVus) | UL 60950-1, UL 60950-22, CAN/CSA C22.2 60950-1, CAN/CSA C22.2 60950-22 |
| CE/IEC | EN/IEC 60950-1, EN/IEC 60950-22 |
| EMC | |
| FCC | 47 CFR, Part15, Subpart B, Class B |
| ETSI | EN 300 386, EN 301 489-1, EN 301 489-4 |
| CAN/CSA-CEI/IEC | CISPR 22-2010 Class B |
