Rohn 25G Tower Kit, 110 MPH, NI, 60ft
ROHN 25G110R060 25G TOWER KIT, 110 MPH, NI, 60'

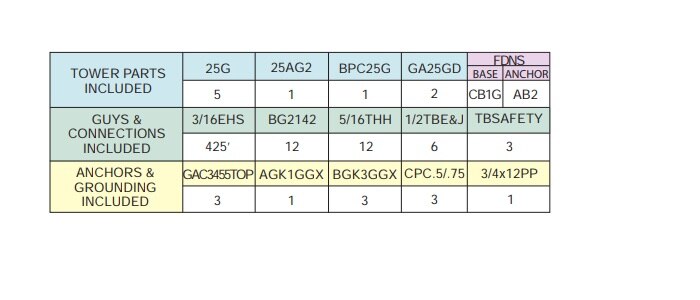

This Product Order Supplies the Following BOM (Less Foundation and Installation) in accordance for Use as a 60 Foot ROHN 25G Tower with EPA's (Effective Projected Area) Ratings for 110 MPH (REV. G) or 90 MPH (REV. F). Refer to Larger Image for EPA Information.
This 25G Tower is to be used in a Guyed Configuration according to Specifications in the ROHN Catalog. As a Guyed Structure, a 110 MPH rated Tower can rise to a maximum of 190 feet. Refer to ROHN catalog for Foundation and Grounding Detail Information.
Specifications ROHN 25G110R060
|Section weight||40 pounds|
|Anchor footings||(3)1'6" x 4' x 6', (1.33 cu. yds.)|
|Base footing||2'6" x 2'6" x 4', (1 cu. yd.)|
|Windload capacity, 110 MPH (Revision F)||12.2 sq. ft.|
|Windload capacity, 110 MPH (Revision G, Exp. B)||11.9 sq. ft.|
|Windload capacity, 110 MPH (Revision G, Exp. C)||9.7 sq. ft.|
|Package weight||8.7 sq. ft.|
