Rohn 25G Tower Kit, 90 MPH, NI, 90ft

(0)No Reviews yet
  • SKU: 25G90R090
US$‎5,204.21 US$‎6,122.60
Direct Ship Item

Product Information

ROHN 25G90R090 Complete 90 Foot 90 MPH (REV. G) 70 MPH (REV. F) Guyed Tower

This Product Order Supplies the Following BOM (Less Foundation and Installation) in accordance for Use as a 90 Foot ROHN 25G Tower with EPA's (Effective Projected Area) Ratings for 90 MPH (REV. G) or 70 MPH (REV. F). Refer to Larger Image for EPA Information.

This 25G Tower is to be used in a Guyed Configuration according to Specifications in the ROHN Catalog. As a Guyed Structure, a 90 MPH rated Tower can rise to a maximum of 190 feet. Refer to ROHN catalog for Foundation and Grounding Detail Information.

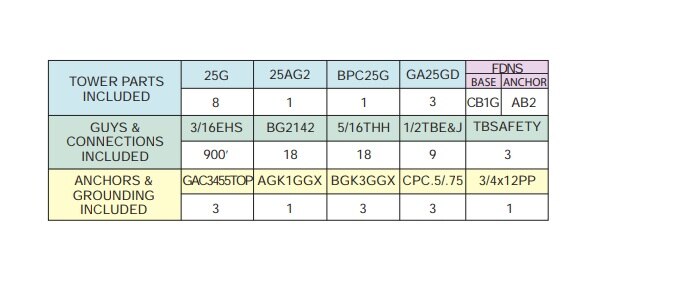

Kit Included:

Specifications

Specifications ROHN 25G90R090

Height90'
Section width12"
Section height10'
Section weight40 pounds
Anchor footings(3)1'6" x 4' x 6', (1.33 cu. yds.)
Base footing2'6" x 2'6" x 4', (1 cu. yd.)
Windload capacity, 110 MPH (Revision F)18.4 sq. ft.
Windload capacity, 110 MPH (Revision G, Exp. B)18 sq. ft.
Windload capacity, 110 MPH (Revision G, Exp. C)13.9 sq. ft.
Package weight570 pounds
