Rohn 45AG5 Tower Top Cap Section, 9ft

(0) No Reviews yet
$359.14 $419.00

Rohn 45AG5 45G TOP SECTION

The Rohn 45AG5 Consists of 14 gauge walls with 6 bays of bracing and insert, double-bolted connections.

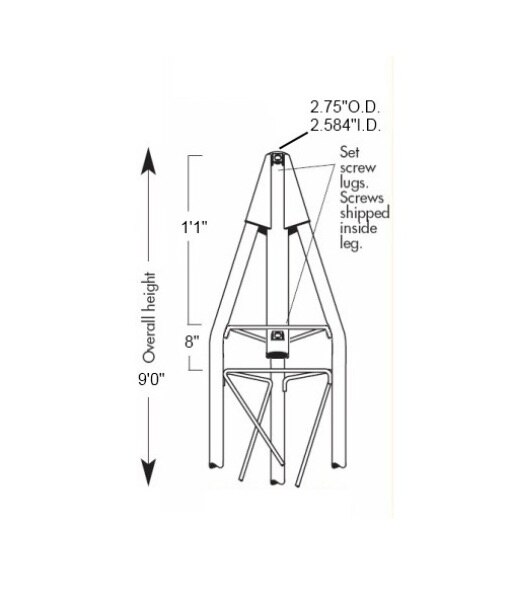

The Pinnacle of this Section is Capped with a 14 AWG wall Tube (2.75" O.D.), protruding approx. 0 inches above the apex of the side rails. This Rohn section is one of several available to top off the 45G tower.

The 45AG5 is available in a 9 Foot 0 inch section length. This tower uses double bolted joints which are proven to be the best method of joining tower sections for sturdiness and dependability. Featuring a 16 3/4 inch equilateral triangular design, the 45AG5 is constructed of extra heavy duty 1-1/4" steel tubing side rails with continuous solid steel rod bracing. Each 9'-0" section is shipped containing all required nuts and bolts attached to one leg.

The 45G tower can be used guyed, self-supporting or bracketed configurations according to specifications in the ROHN catalog. As a guyed structure, it can rise to a maximum of 300 feet


Features:

  • Hot Dip Galvanized
  • Double Bolted Joints
  • Zig-Zag Rod Bracing
  • 1-1/4" Steel Tubing
  • Side Rails
  • 16 3/4" Equalateral
  • Triangular Design
  • Can be used in: Guyed Self Supporting Bracketed Config.s
